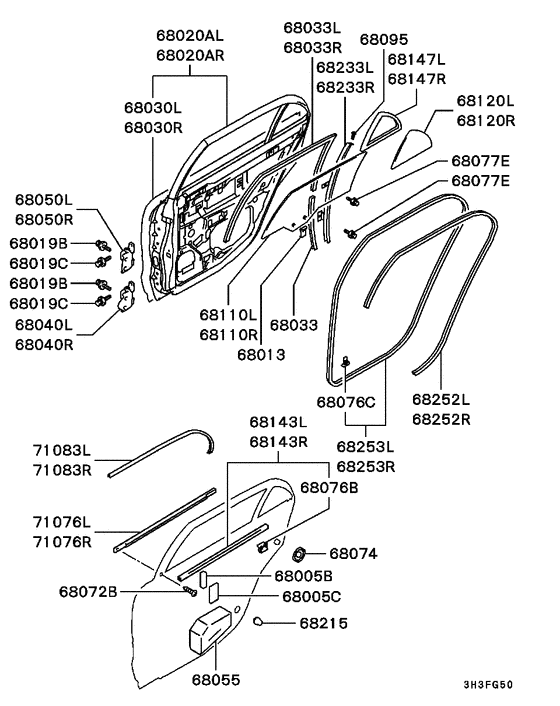

Rear door panel & glass Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- LS(SOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68005B
|
68005B
MB926291 CUSHION, FR DOOR LOCK |
MB926291 |
US $2.37 |
||
|
68005C
|
68005C
MB655561 CUSHION, FR DOOR |
MB655561 |
US $2.96 |
||
|
68013
|
68013
MB517810 HOLDER, FR DOOR WINDOW GLASS |
MB517810 |
US $6.43 |
||
|
68019B
|
68019B
MB142761 BOLT, FR SUSP STABILIZERWasher assembled,8x25 |
MB142761 |
from US $1.44 |
||
|
68019B
|
68019B
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.44 |
||
|
68019C
|
68019C
MU240019 BOLT, HOOD HINGEWasher assembled,7t,8x25 |
MU240019 |
US $2.52 |
||
|
68019C
|
68019C
MU240121 BOLT, FR DOOR HINGEWasher assembled,8t,8x28 |
MU240121 |
US $2.60 |
||
|
68019C
|
68019C
MU240141 BOLT, HOOD HINGEWasher assembled,7t,8x25 |
MU240141 |
US $4.59 |
||
|
68020AL
|
68020AL
MB907633
PANEL ASSY,RR DOOR,LH
|
MB907633 |
— | ||
|
68020AR
|
68020AR
MB907634
PANEL ASSY,RR DOOR,RH
|
MB907634 |
— | ||
|
68030L
|
68030L
MB861833 PANEL, RR DOOR, OTR LH |
MB861833 |
US $324.69 |
||
|
68030R
|
68030R
MB861834 PANEL, RR DOOR, OTR RH |
MB861834 |
US $324.69 |
||
|
68033
|
68033
MB927510 RUNCHANNEL, RR DOOR WINDOW GLASS |
MB927510 |
US $12.43 |
||
|
68033L
|
68033L
MB843367 RUNCHANNEL, RR DOOR WINDOW GLASS, LH |
MB843367 |
US $67.34 |
||
|
68033R
|
68033R
MB843368 RUNCHANNEL, RR DOOR WINDOW GLASS, RH |
MB843368 |
US $67.34 |
||
|
68040L
|
68040L
MB926981 HINGE, RR DOOR, LWR LH |
MB926981 |
US $34.78 |
||
|
68040R
|
68040R
MB926982 HINGE, RR DOOR, LWR RH |
MB926982 |
US $34.78 |
||
|
68050L
|
68050L
MB926979 HINGE, RR DOOR, UPR LH |
MB926979 |
US $38.48 |
||
|
68050R
|
68050R
MB926980 HINGE, RR DOOR, UPR RH |
MB926980 |
US $38.48 |
||
|
68055
|
68055
MR199416
CORE,RR DOOR PANEL
|
MR199416 |
— | ||
|
68072B
|
68072B
MF453075 SCREW, WINDSHIELD PANELTapping,4x8 |
MF453075 |
from US $1.77 |
||
|
68074
|
68074
MB626441 PLUG, RR DOORChild lock lever |
MB626441 |
US $2.66 |
||
|
68076B
|
68076B
MU472017 CLIP, FR DOOR |
MU472017 |
US $4.29 |
||
|
68076C
|
68076C
MB105489 CLIP, HOOD5.2 |
MB105489 |
US $4.10 |
||
|
68077E
|
68077E
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
68077E
|
68077E
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
68095
|
68095
MF201547 SCREW, WINDSHIELD PANELMachine,5x10 |
MF201547 |
US $2.07 |
||
|
68110L
|
68110L
MB978304
GLASS,RR DOOR WINDOW,LH
|
MB978304 |
— | ||
|
68110L
|
68110L
MR358143
GLASS,RR DOOR WINDOW,LH
|
MR358143 |
— | ||
|
68110R
|
68110R
MB978305
GLASS,RR DOOR WINDOW,RH
|
MB978305 |
— | ||
|
68110R
|
68110R
MR358144
GLASS,RR DOOR WINDOW,RH
|
MR358144 |
— | ||
|
68120L
|
68120L
MB978306
GLASS,RR DOOR STATIONARY WINDOW,LH
|
MB978306 |
— | ||
|
68120L
|
68120L
MR358367
GLASS,RR DOOR STATIONARY WINDOW,LH
|
MR358367 |
— | ||
|
68120R
|
68120R
MB978307
GLASS,RR DOOR STATIONARY WINDOW,RH
|
MB978307 |
— | ||
|
68120R
|
68120R
MR358368
GLASS,RR DOOR STATIONARY WINDOW,RH
|
MR358368 |
— | ||
|
68143L
|
68143L
MB843351 WEATHERSTRIP, RR DOOR BELT, INR LH |
MB843351 |
US $43.66 |
||
|
68143R
|
68143R
MB843352 WEATHERSTRIP, RR DOOR BELT, INR RH |
MB843352 |
US $43.66 |
||
|
68147L
|
68147L
MB843371 WEATHERSTRIP, RR DOOR STATIONARY WINDOW, LH |
MB843371 |
US $48.84 |
||
|
68147R
|
68147R
MB843372 WEATHERSTRIP, RR DOOR STATIONARY WINDOW, RH |
MB843372 |
US $48.84 |
||
|
68215
|
68215
MB402060 DAMPER, TRUNK LID |
MB402060 |
from US $2.73 |
||
|
68233L
|
68233L
MB843317 SASH, RR DOOR WINDOW, CTR LH |
MB843317 |
US $61.42 |
||
|
68233R
|
68233R
MB843318 SASH, RR DOOR WINDOW, CTR RH |
MB843318 |
US $61.42 |
||
|
68252L
|
68252L
MR138267 WEATHERSTRIP, RR DOOR OPENING, INR LH |
MR138267 |
US $79.92 |
||
|
68252L
|
68252L
MR718587 WEATHERSTRIP, RR DOOR OPENING, INR LH |
MR718587 |
US $79.92 |
||
|
68252L
|
68252L
MR722288 WEATHERSTRIP, RR DOOR OPENING, INR LH |
MR722288 |
US $79.92 |
||
|
68252R
|
68252R
MR138268 WEATHERSTRIP, RR DOOR OPENING, INR RH |
MR138268 |
US $79.92 |
||
|
68252R
|
68252R
MR718588 WEATHERSTRIP, RR DOOR OPENING, INR RH |
MR718588 |
US $79.92 |
||
|
68252R
|
68252R
MR722289 WEATHERSTRIP, RR DOOR OPENING, INR RH |
MR722289 |
US $79.92 |
||
|
68253L
|
68253L
MB843433 WEATHERSTRIP, RR DOOR OPENING, OTR LH |
MB843433 |
US $120.62 |
||
|
68253L
|
68253L
MR199185 WEATHERSTRIP, RR DOOR OPENING, OTR LH |
MR199185 |
US $96.94 |
||
|
68253R
|
68253R
MB843434 WEATHERSTRIP, RR DOOR OPENING, OTR RH |
MB843434 |
US $120.62 |
||
|
68253R
|
68253R
MR199186 WEATHERSTRIP, RR DOOR OPENING, OTR RH |
MR199186 |
US $96.94 |
||
|
71076L
|
71076L
MB843327 MOULDING, RR DOOR WINDOW BELT LINE, LH |
MB843327 |
US $79.92 |
||
|
71076L
|
71076L
MB865843 MOULDING, RR DOOR WINDOW BELT LINE, LH |
MB865843 |
US $79.92 |
||
|
71076R
|
71076R
MB843328 MOULDING, RR DOOR WINDOW BELT LINE, RH |
MB843328 |
US $79.92 |
||
|
71076R
|
71076R
MB865844 MOULDING, RR DOOR WINDOW BELT LINE, RH |
MB865844 |
US $79.92 |
||
|
71083L
|
71083L
MB843929 MOULDING, RR DOOR SASH, UPR LH |
MB843929 |
US $40.70 |
||
|
71083R
|
71083R
MB843930 MOULDING, RR DOOR SASH, UPR RH |
MB843930 |
US $40.70 |
||
