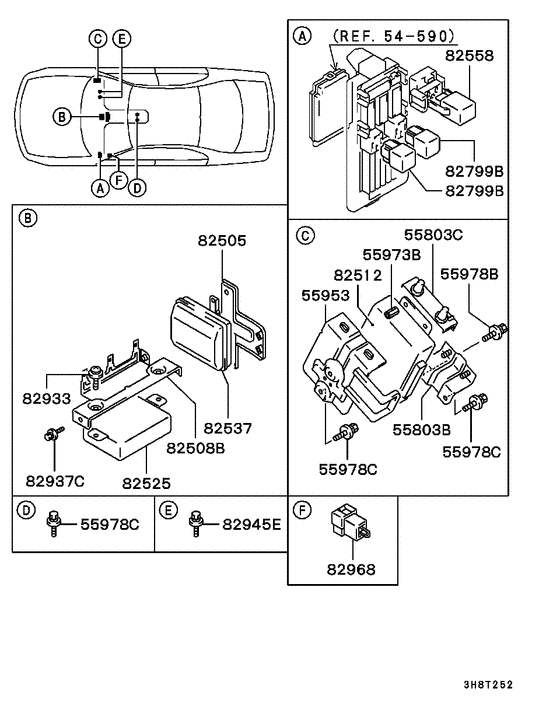

Relay,flasher & sensor (RELAY(AROUND I/PANEL & FLOOR)) Diagram Mitsubishi GALANT
- Year
- 1993 - 1998
- Sales region
- MMNA/MMNA
- Note
- LS(SOHC),4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55803B
|
55803B
MB875637 BRACKET, ABS WIRING |
MB875637 |
US $8.44 |
||
|
55803C
|
55803C
MB875759 BRACKET, ABS WIRING |
MB875759 |
US $9.32 |
||
|
55953
|
55953
MB875674
BRACKET,ABS CONTROL UNIT
|
MB875674 |
— | ||
|
55973B
|
55973B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
55978B
|
55978B
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
55978B
|
55978B
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
55978C
|
55978C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82505
|
82505
MB863553 BRACKET, SPEED CONTROL UNIT |
MB863553 |
US $8.44 |
||
|
82508B
|
82508B
MB876370 BRACKET, EPS CONTROL UNIT |
MB876370 |
US $13.91 |
||
|
82512
|
82512
MB863282 CONTROL UNIT, ABSA5.0990-0214 |
MB863282 |
US $2,275.20 |
||
|
82512
|
82512
MR173765 CONTROL UNIT, ABSA5.0990-0218.6 |
MR173765 |
US $3,268.80 |
||
|
82512
|
82512
MR260714 CONTROL UNIT, ABS |
MR260714 |
US $1,857.60 |
||
|
82537
|
82537
MB903862 CONTROL UNIT, SPEEDG0t10971m |
MB903862 |
US $412.05 |
||
|
82558
|
82558
MB302373
FLASHER UNIT, HAZARD & TURN SIGNAL LAMP
|
MB302373 |
— | ||
|
82558
|
82558
MR252921
FLASHER UNIT, HAZARD & TURN SIGNAL LAMP
|
MR252921 |
— | ||
| replacement | |||||
|
82558
|
82558
MR563835 FLASHER UNIT, HAZARD & TURN SIGNAL LAMP |
MR563835 |
from US $45.83 |
||
|
82799B
|
82799B
MB629080 RELAY, SPECIAL LAMP156700-0110 |
MB629080 |
US $43.66 |
||
|
82799B
|
82799B
MR301971 RELAYG8j-1c21t-r |
MR301971 |
from US $37.62 |
||
|
82933
|
82933
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
82937C
|
82937C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82945E
|
82945E
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
82968
|
82968
MB261838 CONNECTOR, TIMER RELAY |
MB261838 |
US $6.81 |
||
|
54 590
|
Horn & buzzer
54 590
|
||||
