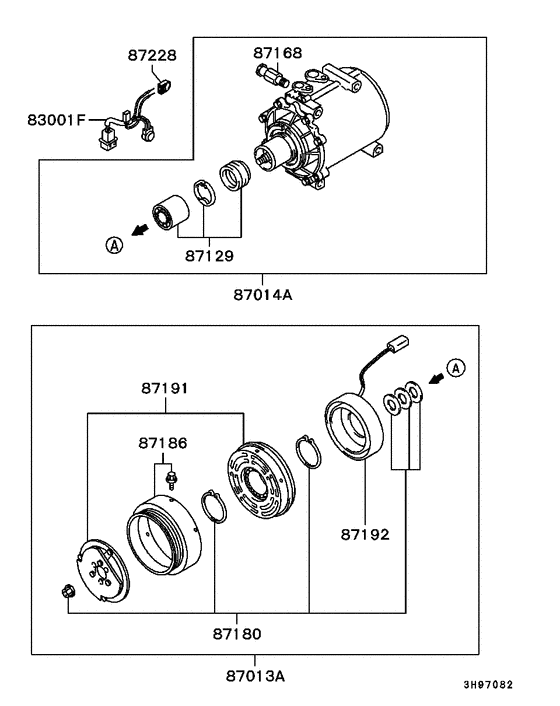

A/c condenser, piping (A/C COMPRESSOR..9312.1-) Diagram Mitsubishi GALANT
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- V6-24 4WD/S(HATCHBACK),5FM/T LHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- 24 /S
- body
- HATCHBACK
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83001F
|
83001F
MR270069
HARNESS, A/C COMPRESSOR
|
MR270069 |
— | ||
|
87013A
|
87013A
MB630393
CLUTCH ASSY, A/C COMPRESSOR
|
MB630393 |
— | ||
|
87013A
|
87013A
MR168341
CLUTCH ASSY, A/C COMPRESSOR
|
MR168341 |
— | ||
|
87014A
|
87014A
MB946518
COMPRESSOR ASSY, A/C
|
MB946518 |
— | ||
|
87014A
|
87014A
MR168350
COMPRESSOR ASSY, A/C
|
MR168350 |
— | ||
|
87129
|
87129
MB946519
SEAL KIT,A/C COMPRESSOR SHAFT
|
MB946519 |
— | ||
|
87129
|
87129
MR168188
SEAL KIT, A/C COMPRESSOR SHAFT
|
MR168188 |
— | ||
|
87168
|
87168
MB946828
VALVE, A/C COMPRESSOR HIGH PRESSURE RELIEF
|
MB946828 |
— | ||
|
87168
|
87168
MR360020 VALVE, A/C COMPRESSOR HIGH PRESSURE RELIEF |
MR360020 |
US $8.87 |
||
|
87180
|
87180
MB276853
CLUTCH KIT, A/C COMPRESSOR SERVICE
|
MB276853 |
— | ||
|
87180
|
87180
MR168348
CLUTCH KIT, A/C COMPRESSOR SERVICE
|
MR168348 |
— | ||
|
87186
|
87186
MB630394
PULLEY KIT, A/C COMPRESSOR CLUTCH
|
MB630394 |
— | ||
|
87186
|
87186
MR168343
PULLEY KIT, A/C COMPRESSOR CLUTCH
|
MR168343 |
— | ||
|
87191
|
87191
MB630396
ROTOR & ARMATURE KIT, A/C COMPRESSOR
|
MB630396 |
— | ||
|
87191
|
87191
MR168345
ROTOR & ARMATURE KIT, A/C COMPRESSOR
|
MR168345 |
— | ||
|
87192
|
87192
MB630398
COIL, A/C COMPRESSOR
|
MB630398 |
— | ||
|
87192
|
87192
MR168347
COIL, A/C COMPRESSOR
|
MR168347 |
— | ||
|
87228
|
87228
MB946520
SENSOR KIT, A/C COMPRESSOR
|
MB946520 |
— | ||
|
87228
|
87228
MR398669
SENSOR KIT, A/C COMPRESSOR
|
MR398669 |
— |
