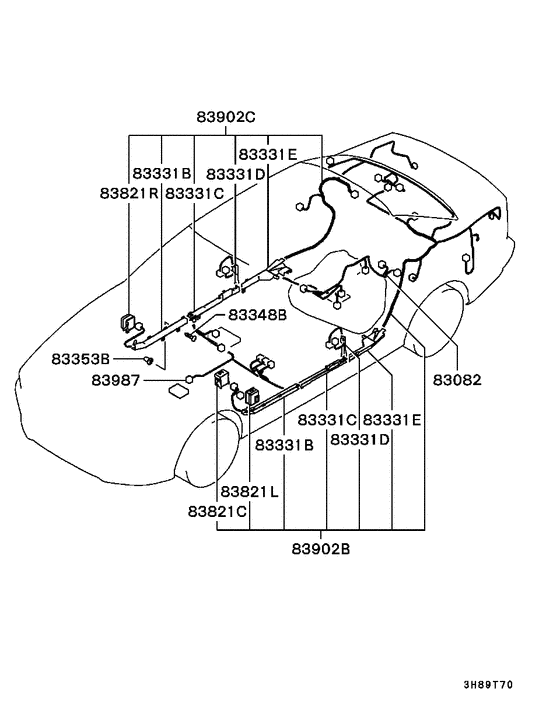

Wiring & attaching parts (WIRING HARNESS(AROUND FLOOR)) Diagram Mitsubishi GALANT
- Year
- 1998 - 2003
- Sales region
- PUERTO RICO&GUAM/MMNA
- Note
- DE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- DE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83082
|
83082
MR397701
HARNESS,FUEL GAUGE UNIT
|
MR397701 |
— | ||
|
83082
|
83082
MR522801
HARNESS,FUEL GAUGE UNIT
|
MR522801 |
— | ||
|
83331B
|
83331B
MB863819 PROTECTOR, HARNESSLh side sill(fr) |
MB863819 |
US $17.02 |
||
|
83331B
|
83331B
MB863820 PROTECTOR, HARNESSRh side sill(fr) |
MB863820 |
US $17.02 |
||
|
83331C
|
83331C
MR252158 PROTECTOR, HARNESSLh side sill(ctr) |
MR252158 |
US $15.54 |
||
|
83331C
|
83331C
MR252159 PROTECTOR, HARNESSRh side sill(ctr) |
MR252159 |
US $15.54 |
||
|
83331E
|
83331E
MB863823 PROTECTOR, HARNESSLh side sill(rr) |
MB863823 |
US $17.02 |
||
|
83331E
|
83331E
MB863824 PROTECTOR, HARNESSRh side sill(rr) |
MB863824 |
US $17.02 |
||
|
83348B
|
83348B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
83353B
|
83353B
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
83821C
|
83821C
MU803500 CONNECTOR, JUNCTION BLOCK |
MU803500 |
US $9.62 |
||
|
83821L
|
83821L
MR337756
CONNECTOR,JUNCTION BLOCK,LH
|
MR337756 |
— | ||
|
83821L
|
83821L
MR490497 CONNECTOR, JUNCTION BLOCK, LH |
MR490497 |
US $19.98 |
||
|
83821R
|
83821R
MR337757 CONNECTOR, JUNCTION BLOCK, RH |
MR337757 |
US $13.02 |
||
|
83821R
|
83821R
MR490498
CONNECTOR,JUNCTION BLOCK,RH
|
MR490498 |
— | ||
|
83902B
|
83902B
MR394022
HARNESS,FLOOR
|
MR394022 |
— | ||
|
83902B
|
83902B
MR490531
HARNESS,FLOOR
|
MR490531 |
— | ||
|
83902B
|
83902B
MR583241
HARNESS,BODY MAIN
|
MR583241 |
— | ||
|
83902B
|
83902B
MR969071
HARNESS,BODY MAIN
|
MR969071 |
— | ||
|
83902C
|
83902C
MR394042
HARNESS,FLOOR
|
MR394042 |
— | ||
|
83902C
|
83902C
MR490541
HARNESS,FLOOR
|
MR490541 |
— | ||
|
83902C
|
83902C
MR583251
HARNESS,FLOOR
|
MR583251 |
— | ||
|
83902C
|
83902C
MR969081
HARNESS,FLOOR
|
MR969081 |
— |
