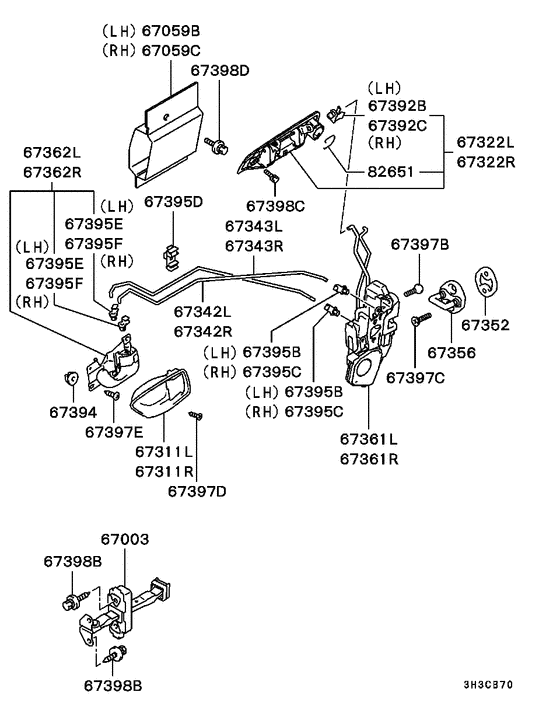

Front door locking Diagram Mitsubishi GALANT
- Year
- 1998 - 2003
- Sales region
- MMNA/MMNA
- Note
- DE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- DE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MR134886
CHECK,FR DOOR
|
MR134886 |
— | ||
|
67059B
|
67059B
MR358189
CORE,FR DOOR PANEL,LH
|
MR358189 |
— | ||
|
67059C
|
67059C
MR358190
CORE,FR DOOR PANEL,RH
|
MR358190 |
— | ||
|
67311L
|
67311L
MR777115
COVER,FR DOOR INSIDE HANDLE,LH
|
MR777115 |
— | ||
|
67311R
|
67311R
MR777117
COVER,FR DOOR INSIDE HANDLE,RH
|
MR777117 |
— | ||
|
67322L
|
67322L
MR287327
HANDLE,FR DOOR OUTSIDE,LH
|
MR287327 |
— | ||
|
67322R
|
67322R
MR287328
HANDLE,FR DOOR OUTSIDE,RH
|
MR287328 |
— | ||
|
67342L
|
67342L
MR288839
ROD,FR DOOR INSIDE HANDLE,LH
|
MR288839 |
— | ||
|
67342R
|
67342R
MR288838
ROD,FR DOOR INSIDE HANDLE,RH
|
MR288838 |
— | ||
|
67343L
|
67343L
MR288841
ROD,FR DOOR INSIDE LOCK,LH
|
MR288841 |
— | ||
|
67343R
|
67343R
MR288842
ROD,FR DOOR INSIDE LOCK,RH
|
MR288842 |
— | ||
|
67352
|
67352
MB888461 SHIM, FR DOOR LATCH STRIKERT=1.6 |
MB888461 |
from US $2.91 |
||
|
67356
|
67356
MB867059 STRIKER, FR DOOR LATCH |
MB867059 |
from US $9.87 |
||
|
67361L
|
67361L
MR349769
LATCH,FR DOOR,LH
|
MR349769 |
— | ||
|
67361R
|
67361R
MR349772
LATCH,FR DOOR,RH
|
MR349772 |
— | ||
|
67362L
|
67362L
MR462135
HANDLE,FR DOOR INSIDE,LH
|
MR462135 |
— | ||
|
67362R
|
67362R
MR462136
HANDLE,FR DOOR INSIDE,RH
|
MR462136 |
— | ||
|
67392B
|
67392B
MU481091 SNAP, FR DOOR LOCKING |
MU481091 |
from US $0.99 |
||
|
67392C
|
67392C
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
67394
|
67394
MB223246 GROMMET, FR DOOR LOCKINGScrew,6 |
MB223246 |
US $3.28 |
||
|
67394
|
67394
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
67395B
|
67395B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
67395C
|
67395C
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
67395D
|
67395D
MU481211 CLIP, FR DOOR LOCKING6.9 |
MU481211 |
US $3.69 |
||
|
67395D
|
67395D
MU481262 CLIP, FR DOOR LOCKING |
MU481262 |
from US $0.96 |
||
|
67395E
|
67395E
MR415241 CLIP, FR DOOR LOCKING |
MR415241 |
US $2.52 |
||
|
67395F
|
67395F
MR415242 CLIP, FR DOOR LOCKING |
MR415242 |
US $2.52 |
||
|
67397B
|
67397B
MU200081 SCREW, FR DOOR LOCKINGMachine,6x18 |
MU200081 |
from US $1.40 |
||
|
67397C
|
67397C
MU340043 SCREW, FR DOOR LOCKINGW/washer(torx),8x20 |
MU340043 |
from US $2.67 |
||
|
67397D
|
67397D
MF453075 SCREW, WINDSHIELD PANELTapping,4x8 |
MF453075 |
from US $1.77 |
||
|
67397D
|
67397D
MF453255 SCREW, FR DOORTapping,4x8 |
MF453255 |
US $1.78 |
||
|
67397E
|
67397E
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
67398B
|
67398B
MS240591 BOLT, AIR CLEANERWasher assembled,6x16 |
MS240591 |
US $2.96 |
||
|
67398B
|
67398B
MS240593 BOLT, FR DOOR LOCKINGWasher assembled,6x20 |
MS240593 |
US $4.10 |
||
|
67398C
|
67398C
MU000401 BOLT, FR DOOR LOCKING |
MU000401 |
US $1.33 |
||
|
67398C
|
67398C
MU240086 BOLT, FR DOOR WINDOWWasher assembled,6x8 |
MU240086 |
US $2.37 |
||
|
67398D
|
67398D
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
67398D
|
67398D
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
67398D
|
67398D
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
82651
|
82651
MB676441 RING, DOOR LOCK CYLINDER |
MB676441 |
US $1.78 |
||
