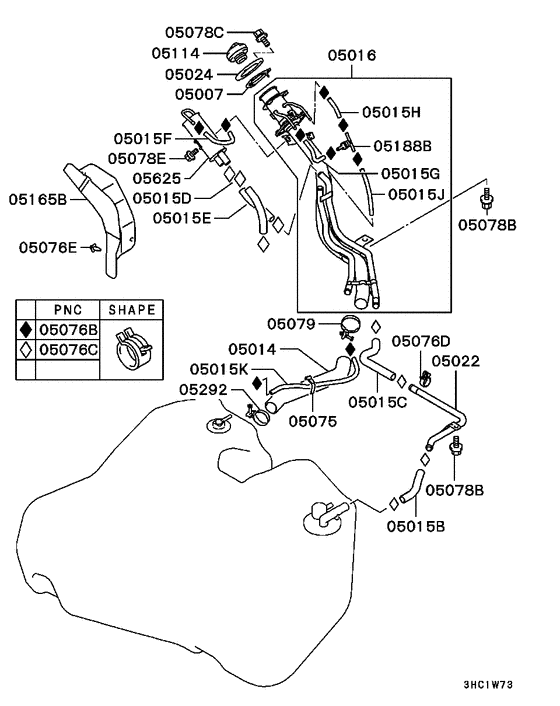

Fuel tank (FUEL FILLER PIPE..-0005.3) Diagram Mitsubishi GALANT
- Year
- 1998 - 2003
- Sales region
- MMNA/MMNA
- Note
- DE,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- DE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05007
|
05007
MB504238 GASKET, FUEL FILLER NECK |
MB504238 |
from US $3.74 |
||
|
05014
|
05014
MR271412 HOSE, FUEL FILLER |
MR271412 |
US $40.70 |
||
|
05015B
|
05015B
MR342239
HOSE,FUEL FILLER NECK BREATHER
|
MR342239 |
— | ||
|
05015B
|
05015B
MR512021
HOSE, FUEL FILLER NECK BREATHER
|
MR512021 |
— | ||
|
05015C
|
05015C
MR342238
HOSE,FUEL TANK
|
MR342238 |
— | ||
|
05015C
|
05015C
MR473136
HOSE,FUEL FILLER NECK BREATHER
|
MR473136 |
— | ||
|
05015C
|
05015C
MR556622 HOSE, FUEL FILLER NECK BREATHER |
MR556622 |
US $12.18 |
||
|
05015D
|
05015D
MR342995
HOSE,FUEL FILLER NECK BREATHER
|
MR342995 |
— | ||
|
05015E
|
05015E
MR342370
HOSE,FUEL FILLER NECK BREATHER
|
MR342370 |
— | ||
|
05015F
|
05015F
MR523871
HOSE,FUEL FILLER NECK BREATHER
|
MR523871 |
— | ||
|
05015G
|
05015G
MR342225
HOSE,FUEL FILLER NECK BREATHER
|
MR342225 |
— | ||
|
05015H
|
05015H
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05015J
|
05015J
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05015K
|
05015K
MR271417
HOSE,FUEL TANK
|
MR271417 |
— | ||
|
05015K
|
05015K
MR523878 HOSE, FUEL FILLER NECK BREATHER |
MR523878 |
US $7.99 |
||
|
05016
|
05016
MR271410
NECK,FUEL FILLER
|
MR271410 |
— | ||
|
05016
|
05016
MR487081
NECK,FUEL FILLER
|
MR487081 |
— | ||
|
05022
|
05022
MR342188
PIPE,FUEL FILLER BREATHER
|
MR342188 |
— | ||
|
05022
|
05022
MR512018
PIPE, FUEL FILLER BREATHER
|
MR512018 |
— | ||
|
05024
|
05024
MB504932 PLATE, FUEL FILLER NECK REINF |
MB504932 |
US $8.62 |
||
|
05075
|
05075
MB249340 BAND, FUEL TANK PROTECTORL=219.5 |
MB249340 |
US $2.74 |
||
|
05076B
|
05076B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05076C
|
05076C
MS660174 CLIP, ENG OIL LINED=19.8 |
MS660174 |
US $2.81 |
||
|
05076D
|
05076D
MU481045 CLIP, LPG LEAD LINE16 |
MU481045 |
US $1.92 |
||
|
05076E
|
05076E
MB344728 CLIP, SPLASH SHIELD |
MB344728 |
from US $1.91 |
||
|
05078B
|
05078B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
05078C
|
05078C
MS240583 BOLT, FUEL FILLER PIPEWasher assembled,6x25 |
MS240583 |
US $2.07 |
||
|
05078E
|
05078E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05079
|
05079
MF661022 CLAMP, FUEL TANKD=46 |
MF661022 |
US $2.60 |
||
|
05114
|
05114
MR462264
CAP,FUEL TANK
|
MR462264 |
— | ||
|
05114
|
05114
MR503001
CAP,FUEL TANK
|
MR503001 |
— | ||
|
05165B
|
05165B
MR342338
PROTECTOR,FUEL TANK
|
MR342338 |
— | ||
|
05165B
|
05165B
MR487999
PROTECTOR,FUEL TANK
|
MR487999 |
— | ||
|
05188B
|
05188B
MR342160 VALVE, FUEL FILLER NECK |
MR342160 |
US $24.42 |
||
|
05292
|
05292
MF661020 CLAMP, ENG OIL FILLER40 |
MF661020 |
US $3.26 |
||
|
05625
|
05625
MR271411
TANK,FUEL VAPOR SEPARATOR
|
MR271411 |
— |
