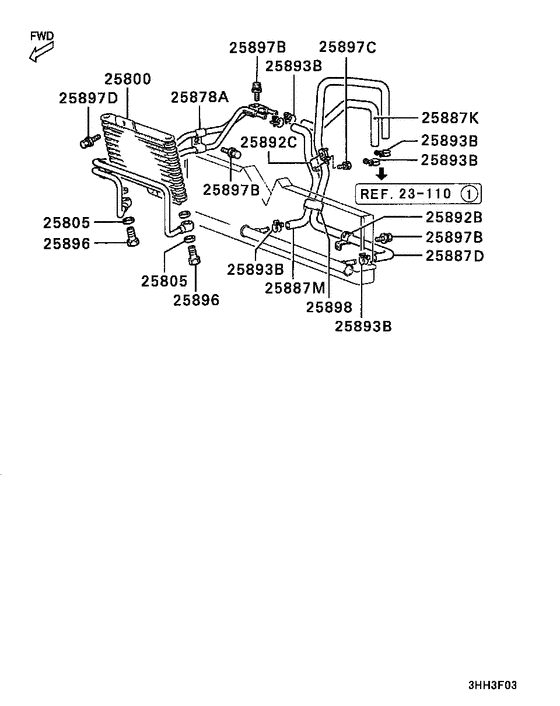

A/t oil cooler & tube (ALL) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1988 - 1992
- Sales region
- EUR
- Note
- GLS(HATCHBACK/TURBO),4FA/T LHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- GLS
- body
- HATCHBACK
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25800
|
25800
MB033020 OIL COOLER, ENG |
MB033020 |
US $601.33 |
||
|
25805
|
25805
MB033054 GASKET, ENG OIL COOLER TUBE |
MB033054 |
from US $1.85 |
||
|
25878A
|
25878A
MB010790
TUBE ASSY,T/M OIL COOLER LINE
|
MB010790 |
— | ||
|
25887D
|
25887D
MB010578 HOSE, T/M OIL COOLER LINERubber |
MB010578 |
US $54.02 |
||
|
25887K
|
25887K
MB010789
HOSE,T/M OIL COOLER LINE
|
MB010789 |
— | ||
|
25887M
|
25887M
MB010791
HOSE,T/M OIL COOLER LINE
|
MB010791 |
— | ||
|
25892B
|
25892B
MB010763 CLIP, T/M OIL COOLER LINE |
MB010763 |
US $6.22 |
||
|
25892C
|
25892C
MB538758 CLIP, T/M OIL COOLER LINE15-15 |
MB538758 |
US $4.59 |
||
|
25893B
|
25893B
MF661007 CLIP, FUEL LINED=14 |
MF661007 |
US $2.05 |
||
|
25896
|
25896
MB033025 EYEBOLT, ENG OIL COOLER LINE16x33 |
MB033025 |
from US $5.77 |
||
|
25897B
|
25897B
MS240028 BOLT, CRUISE CONTROL EQUIPWasher assembled,6x12 |
MS240028 |
US $3.28 |
||
|
25897C
|
25897C
MS240037 BOLT, FUEL RETURN LINEWasher assembled,6x12 |
MS240037 |
US $2.60 |
||
|
25897D
|
25897D
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
25898
|
25898
MS470011 BAND, CHOKE CABLE100 |
MS470011 |
US $5.33 |
||
|
