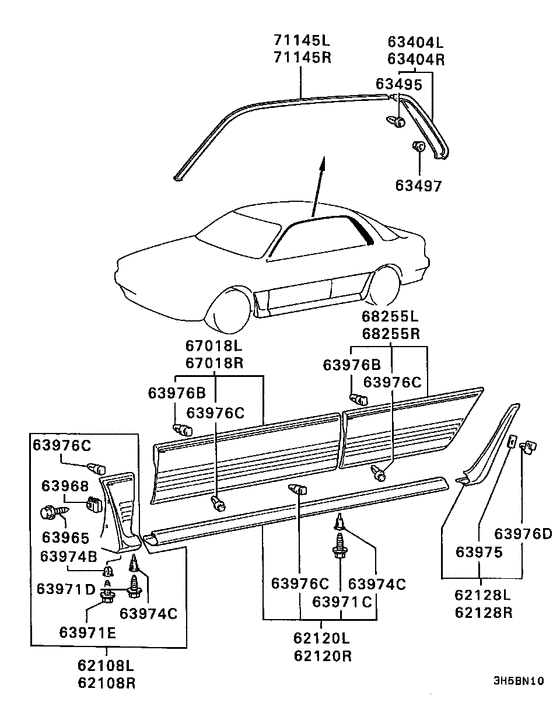

Side garnish & moulding (DOHC) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1989 - 1992
- Sales region
- EUR
- Note
- GTI 4WD/S(HATCHBACK/ANTI-POLL),5FM/T LHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- GTI /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62108L
|
62108L
MB597729 AIR DAM KIT, SIDE, FR LH |
MB597729 |
US $267.88 |
||
|
62108L
|
62108L
MB597731 AIR DAM KIT, SIDE, FR LH |
MB597731 |
US $267.88 |
||
|
62108L
|
62108L
MB598029 AIR DAM KIT, SIDE, FR LH |
MB598029 |
US $267.88 |
||
|
62108L
|
62108L
MB598031 AIR DAM KIT, SIDE, FR LH |
MB598031 |
US $267.88 |
||
|
62108L
|
62108L
MB598367 AIR DAM KIT, SIDE, FR LH |
MB598367 |
US $267.88 |
||
|
62108L
|
62108L
MB831383 AIR DAM KIT, SIDE, FR LH |
MB831383 |
US $267.88 |
||
|
62108L
|
62108L
MB831385
AIR DAM KIT,SIDE,FR LH
|
MB831385 |
— | ||
|
62108L
|
62108L
MB907009
AIR DAM KIT,SIDE,FR LH
|
MB907009 |
— | ||
|
62108R
|
62108R
MB597730 AIR DAM KIT, SIDE, FR RH |
MB597730 |
US $267.88 |
||
|
62108R
|
62108R
MB597732 AIR DAM KIT, SIDE, FR RH |
MB597732 |
US $267.88 |
||
|
62108R
|
62108R
MB598030 AIR DAM KIT, SIDE, FR RH |
MB598030 |
US $267.88 |
||
|
62108R
|
62108R
MB598032 AIR DAM KIT, SIDE, FR RH |
MB598032 |
US $267.88 |
||
|
62108R
|
62108R
MB598368 AIR DAM KIT, SIDE, FR RH |
MB598368 |
US $267.88 |
||
|
62108R
|
62108R
MB831384 AIR DAM KIT, SIDE, FR RH |
MB831384 |
US $267.88 |
||
|
62108R
|
62108R
MB831386
AIR DAM KIT,SIDE,FR RH
|
MB831386 |
— | ||
|
62108R
|
62108R
MB907010
AIR DAM KIT,SIDE,FR RH
|
MB907010 |
— | ||
|
62120L
|
62120L
MB724847 AIR DAM, SIDE, LH |
MB724847 |
US $604.24 |
||
|
62120L
|
62120L
MB724848 AIR DAM, SIDE, LH |
MB724848 |
US $604.24 |
||
|
62120L
|
62120L
MB740112 AIR DAM, SIDE, CTR LH |
MB740112 |
US $604.24 |
||
|
62120L
|
62120L
MB740113 AIR DAM, SIDE, CTR LH |
MB740113 |
US $604.24 |
||
|
62120L
|
62120L
MB749130 AIR DAM, SIDE, CTR LH |
MB749130 |
US $604.24 |
||
|
62120L
|
62120L
MB773114 AIR DAM, SIDE, CTR LH |
MB773114 |
US $548.91 |
||
|
62120L
|
62120L
MB773115
AIR DAM,SIDE,CTR LH
|
MB773115 |
— | ||
|
62120L
|
62120L
MB796033
AIR DAM,SIDE,CTR LH
|
MB796033 |
— | ||
|
62120R
|
62120R
MB724849 AIR DAM ASSY, SIDE, CTR RH |
MB724849 |
US $604.24 |
||
|
62120R
|
62120R
MB724850 AIR DAM, SIDE, RH |
MB724850 |
US $604.24 |
||
|
62120R
|
62120R
MB740114 AIR DAM, SIDE, CTR RH |
MB740114 |
US $604.24 |
||
|
62120R
|
62120R
MB740115 AIR DAM, SIDE, CTR RH |
MB740115 |
US $604.24 |
||
|
62120R
|
62120R
MB749131 AIR DAM, SIDE, CTR RH |
MB749131 |
US $604.24 |
||
|
62120R
|
62120R
MB773116 AIR DAM, SIDE, CTR RH |
MB773116 |
US $548.91 |
||
|
62120R
|
62120R
MB773117
AIR DAM,SIDE,CTR RH
|
MB773117 |
— | ||
|
62120R
|
62120R
MB796034
AIR DAM,SIDE,CTR RH
|
MB796034 |
— | ||
|
62128L
|
62128L
MB723632 AIR DAM, SIDE, RR LH |
MB723632 |
US $124.32 |
||
|
62128L
|
62128L
MB723633 AIR DAM, SIDE, RR LH |
MB723633 |
US $124.32 |
||
|
62128L
|
62128L
MB740108 AIR DAM, SIDE, RR LH |
MB740108 |
US $124.32 |
||
|
62128L
|
62128L
MB740109 AIR DAM, SIDE, RR LH |
MB740109 |
US $124.32 |
||
|
62128L
|
62128L
MB749128 AIR DAM, SIDE, RR LH |
MB749128 |
US $124.32 |
||
|
62128L
|
62128L
MB773110 AIR DAM, SIDE, RR LH |
MB773110 |
US $124.32 |
||
|
62128L
|
62128L
MB773111
AIR DAM,SIDE,RR LH
|
MB773111 |
— | ||
|
62128L
|
62128L
MB796031
AIR DAM,SIDE,RR LH
|
MB796031 |
— | ||
|
62128R
|
62128R
MB723634 AIR DAM, SIDE, RR LH |
MB723634 |
US $124.32 |
||
|
62128R
|
62128R
MB723635 AIR DAM, SIDE, RR RH |
MB723635 |
US $124.32 |
||
|
62128R
|
62128R
MB740110 AIR DAM, SIDE, RR RH |
MB740110 |
US $124.32 |
||
|
62128R
|
62128R
MB740111 AIR DAM, SIDE, RR RH |
MB740111 |
US $124.32 |
||
|
62128R
|
62128R
MB749129 AIR DAM, SIDE, RR RH |
MB749129 |
US $124.32 |
||
|
62128R
|
62128R
MB773112 AIR DAM, SIDE, RR RH |
MB773112 |
US $124.32 |
||
|
62128R
|
62128R
MB773113
AIR DAM,SIDE,RR RH
|
MB773113 |
— | ||
|
62128R
|
62128R
MB796032
AIR DAM,SIDE,RR RH
|
MB796032 |
— | ||
|
63404L
|
63404L
MB594253
GARNISH, RR PILLAR, LH
|
MB594253 |
— | ||
|
63404R
|
63404R
MB594254
GARNISH, RR PILLAR, RH
|
MB594254 |
— | ||
|
63495
|
63495
MB662743 CLIP, AIR INLET GRILLE9x12.6 |
MB662743 |
US $3.01 |
||
|
63497
|
63497
MS440122 NUT, HAC EQUIPFlange,5 |
MS440122 |
US $2.52 |
||
|
63965
|
63965
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
63968
|
63968
MB138567 GROMMET, SPLASH SHIELD6 |
MB138567 |
from US $2.13 |
||
|
63971C
|
63971C
MU460080 SCREW, SIDE AIR DAMTapping,4x16 |
MU460080 |
US $3.55 |
||
|
63971D
|
63971D
MU460080 SCREW, SIDE AIR DAMTapping,4x16 |
MU460080 |
US $3.55 |
||
|
63971E
|
63971E
MS452343 SCREW, SIDE AIR DAMTapping washer assembled,5x16 |
MS452343 |
US $2.87 |
||
|
63974B
|
63974B
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
63974C
|
63974C
MB361578 GROMMET, SIDE AIR DAM10 |
MB361578 |
from US $2.07 |
||
|
63975
|
63975
MB551821 GASKET, SIDE AIR DAM |
MB551821 |
US $4.10 |
||
|
63976B
|
63976B
MB319754 CLIP, FR END GARNISH8 |
MB319754 |
US $4.65 |
||
|
63976C
|
63976C
MB567798 CLIP, SIDE AIR DAM |
MB567798 |
US $4.65 |
||
|
63976D
|
63976D
MU481092 CLIP, SIDE AIR DAM7 |
MU481092 |
US $3.69 |
||
|
67018L
|
67018L
MB717057 GARNISH, FR DOOR, LH |
MB717057 |
US $384.38 |
||
|
67018L
|
67018L
MB717059 GARNISH, FR DOOR, LH |
MB717059 |
US $384.38 |
||
|
67018L
|
67018L
MB739969 GARNISH, FR DOOR, LH |
MB739969 |
US $384.38 |
||
|
67018L
|
67018L
MB739970 GARNISH, FR DOOR, LH |
MB739970 |
US $384.38 |
||
|
67018L
|
67018L
MB745585 GARNISH, FR DOOR, LH |
MB745585 |
US $384.38 |
||
|
67018L
|
67018L
MB772046 GARNISH, FR DOOR, LH |
MB772046 |
US $384.38 |
||
|
67018L
|
67018L
MB772047 GARNISH, FR DOOR, LH |
MB772047 |
US $384.38 |
||
|
67018L
|
67018L
MB796024
GARNISH,FR DOOR,LH
|
MB796024 |
— | ||
|
67018R
|
67018R
MB717061 GARNISH, FR DOOR, RH |
MB717061 |
US $384.38 |
||
|
67018R
|
67018R
MB717063 GARNISH, FR DOOR, RH |
MB717063 |
US $384.38 |
||
|
67018R
|
67018R
MB739972 GARNISH, FR DOOR, RH |
MB739972 |
US $384.38 |
||
|
67018R
|
67018R
MB739973 GARNISH, FR DOOR, RH |
MB739973 |
US $384.38 |
||
|
67018R
|
67018R
MB745586 GARNISH, FR DOOR, RH |
MB745586 |
US $384.38 |
||
|
67018R
|
67018R
MB772051 GARNISH, FR DOOR, RH |
MB772051 |
US $384.38 |
||
|
67018R
|
67018R
MB772052 GARNISH, FR DOOR, RH |
MB772052 |
US $384.38 |
||
|
67018R
|
67018R
MB796025
GARNISH,FR DOOR,RH
|
MB796025 |
— | ||
|
68255L
|
68255L
MB643141 GARNISH, RR DOOR, LH |
MB643141 |
US $355.26 |
||
|
68255L
|
68255L
MB643142 GARNISH, RR DOOR, LH |
MB643142 |
US $355.26 |
||
|
68255L
|
68255L
MB643167 GARNISH, RR DOOR, LH |
MB643167 |
US $355.26 |
||
|
68255L
|
68255L
MB717069 GARNISH, RR DOOR, LH |
MB717069 |
US $320.32 |
||
|
68255L
|
68255L
MB717071 GARNISH, RR DOOR, LH |
MB717071 |
US $320.32 |
||
|
68255L
|
68255L
MB772056 GARNISH, RR DOOR, LH |
MB772056 |
US $320.32 |
||
|
68255L
|
68255L
MB772057 GARNISH, RR DOOR, LH |
MB772057 |
US $320.32 |
||
|
68255L
|
68255L
MB796026
GARNISH,RR DOOR,LH
|
MB796026 |
— | ||
|
68255R
|
68255R
MB643144 GARNISH, RR DOOR, RH |
MB643144 |
US $355.26 |
||
|
68255R
|
68255R
MB643145 GARNISH, RR DOOR, RH |
MB643145 |
US $355.26 |
||
|
68255R
|
68255R
MB643168 GARNISH, RR DOOR, RH |
MB643168 |
US $355.26 |
||
|
68255R
|
68255R
MB717073 GARNISH, RR DOOR, RH |
MB717073 |
US $320.32 |
||
|
68255R
|
68255R
MB717075 GARNISH, RR DOOR, RH |
MB717075 |
US $320.32 |
||
|
68255R
|
68255R
MB772061 GARNISH, RR DOOR, RH |
MB772061 |
US $320.32 |
||
|
68255R
|
68255R
MB772062 GARNISH, RR DOOR, RH |
MB772062 |
US $320.32 |
||
|
68255R
|
68255R
MB796027
GARNISH,RR DOOR,RH
|
MB796027 |
— | ||
|
71145L
|
71145L
MB594245
MOULDING, DRIP, LH
|
MB594245 |
— | ||
|
71145R
|
71145R
MB594246
MOULDING, DRIP, RH
|
MB594246 |
— |
