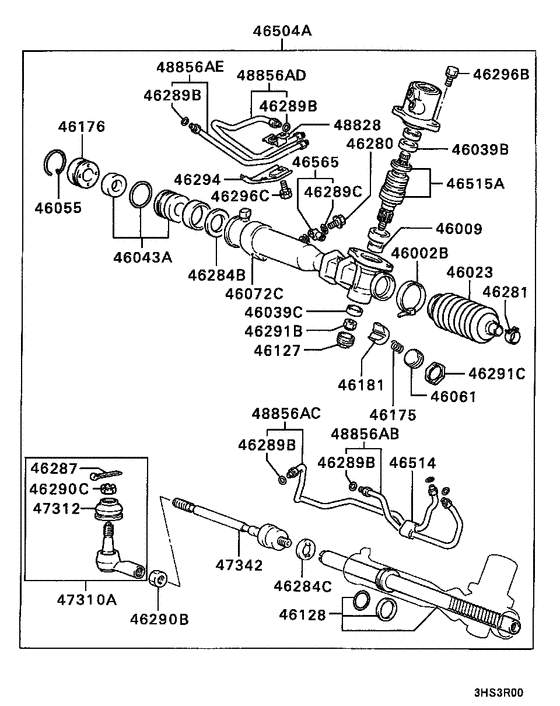

Steering gear (4WS DISASSEMBLED PARTS '90MODEL-) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1989 - 1992
- Sales region
- EUR
- Note
- GTI 4WD/S(HATCHBACK/ANTI-POLL),5FM/T LHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- GTI /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002B
|
46002B
MB243333 BAND, STEERING GEAR |
MB243333 |
US $9.18 |
||
|
46009
|
46009
MB564890 BEARING, STEERING GEAR PINION SHAFT, UPRNeedle |
MB564890 |
US $20.72 |
||
|
46023
|
46023
MB501711 BELLOWS, STEERING GEAR |
MB501711 |
from US $29.11 |
||
|
46039B
|
46039B
MB243364 BEARING, STEERING GEAR BALL SCREW, LWR |
MB243364 |
US $48.10 |
||
|
46039C
|
46039C
MB350602 BEARING, STEERING GEAR PINION |
MB350602 |
US $22.94 |
||
|
46043A
|
46043A
MB501107 BUSHING ASSY, STEERING GEAR |
MB501107 |
US $65.86 |
||
|
46055
|
46055
MB350576 CLIP, STEERING GEAR PISTON |
MB350576 |
US $7.11 |
||
|
46061
|
46061
MB501021 COVER, STEERING GEAR RACK SUPPORT |
MB501021 |
US $34.04 |
||
|
46072C
|
46072C
MB564628 CUSHION, STEERING GEAR |
MB564628 |
US $11.54 |
||
|
46127
|
46127
MB243336 PLUG, STEERING GEAR |
MB243336 |
US $15.54 |
||
|
46128
|
46128
MB564860 RACK,STEERING GEAR |
MB564860 |
US $391.66 |
||
|
46175
|
46175
MB553048 SPRING, STEERING GEAR RACK SUPPORT |
MB553048 |
US $6.07 |
||
|
46176
|
46176
MB553088 STOPPER, STEERING GEAR RACK |
MB553088 |
US $15.54 |
||
|
46181
|
46181
MB501020
SUPPORT, STEERING GEAR RACK
|
MB501020 |
— | ||
| replacement | |||||
|
46181
|
46181
4410A395 SUPPORT, STEERING GEAR RACK |
4410A395 |
from US $15.05 |
||
|
46280
|
46280
MB243341 EYEBOLT, STEERING GEAR INR10x20 |
MB243341 |
US $13.27 |
||
|
46281
|
46281
MS660165 CLIP, ROCKER COVERD=14.8 |
MS660165 |
from US $1.72 |
||
|
46284B
|
46284B
MB553452 WASHER, STEERING GEAR |
MB553452 |
US $7.99 |
||
|
46284C
|
46284C
MB266164 WASHER, STEERING GEAR |
MB266164 |
from US $6.49 |
||
|
46287
|
46287
MF472054 PIN, ENG OIL PUMP INRSplit,2.5x25 |
MF472054 |
US $1.37 |
||
|
46289B
|
46289B
MB076166 O-RING, STEERING GEAR INR |
MB076166 |
US $4.59 |
||
|
46289C
|
46289C
MB192820 O-RING, STEERING GEAR INR |
MB192820 |
US $4.24 |
||
|
46290B
|
46290B
MF430008 NUTNUT, 14, 4T |
MF430008 |
from US $1.03 |
||
|
46290C
|
46290C
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46291B
|
46291B
MB243335 NUT, STEERING GEAR |
MB243335 |
US $5.47 |
||
|
46291C
|
46291C
MB501022 NUT, STEERING GEAR |
MB501022 |
US $5.92 |
||
|
46294
|
46294
MB489767 CLAMP, STEERING GEAR INR |
MB489767 |
US $13.47 |
||
|
46296B
|
46296B
MB501451 BOLT, STEERING GEAR INR |
MB501451 |
US $5.03 |
||
|
46296B
|
46296B
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
46296C
|
46296C
MB564889
BOLT,STEERING GEAR INR
|
MB564889 |
— | ||
|
46296C
|
46296C
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
46504A
|
46504A
MB532130 GEAR & LINK ASSY,P/S |
MB532130 |
US $2,692.80 |
||
|
46504A
|
46504A
MB815186
GEAR & LINK ASSY,P/S
|
MB815186 |
— | ||
|
46514
|
46514
MB350583 PAD, P/S GEAR OIL FEED TUBE |
MB350583 |
US $8.88 |
||
|
46515A
|
46515A
MB564873 PINION & VALVE ASSY,P/S |
MB564873 |
US $659.57 |
||
|
46515A
|
46515A
MB948628
PINION & VALVE ASSY,P/S
|
MB948628 |
— | ||
|
46565
|
46565
MB564623
CONNECTOR, STEERING GEAR
|
MB564623 |
— | ||
|
47310A
|
47310A
MB564991
END ASSY, TIE ROD
|
MB564991 |
— | ||
| replacement | |||||
|
47310A
|
47310A
MB912519 END ASSY, TIE ROD |
MB912519 |
from US $32.31 |
||
|
47312
|
47312
MB616023
COVER, TIE ROD END
|
MB616023 |
— | ||
| replacement | |||||
|
47312
|
47312
4422A137 TIE ROD END BOOT |
4422A137 |
US $19.20 |
||
|
47342
|
47342
MB501721 TIE ROD, STEERING |
MB501721 |
US $96.20 |
||
|
48828
|
48828
MB489766 HOLDER, P/S OIL TUBE |
MB489766 |
US $13.47 |
||
|
48856AB
|
48856AB
MB564865 TUBE ASSY,P/S OIL FEED |
MB564865 |
US $74.74 |
||
|
48856AB
|
48856AB
MB870584
TUBE ASSY,P/S OIL FEED
|
MB870584 |
— | ||
|
48856AC
|
48856AC
MB564864 TUBE ASSY,P/S OIL FEED |
MB564864 |
US $74.74 |
||
|
48856AC
|
48856AC
MB870583
TUBE ASSY,P/S OIL FEED
|
MB870583 |
— | ||
|
48856AD
|
48856AD
MB564867 TUBE ASSY,P/S OIL FEED |
MB564867 |
US $74.74 |
||
|
48856AE
|
48856AE
MB564866 TUBE ASSY,P/S OIL FEED |
MB564866 |
US $74.74 |
||
