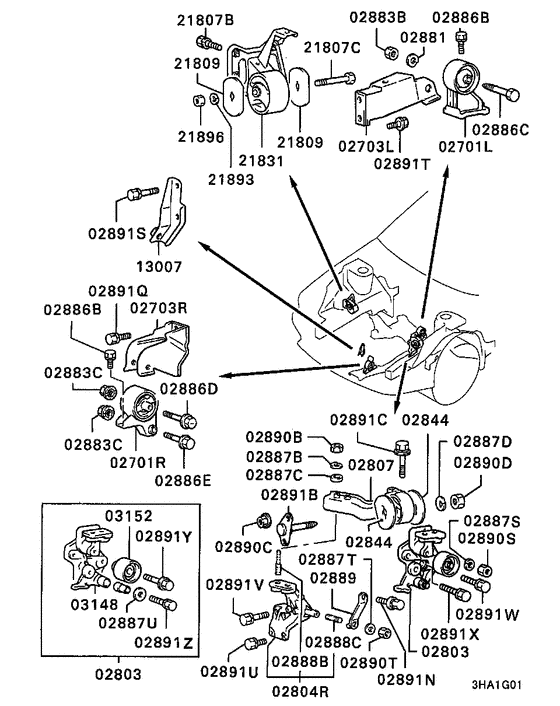

Engine mounting & support (DOHC) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1989 - 1992
- Sales region
- EUR
- Note
- GTI 4WD/S(HATCHBACK/ANTI-POLL),5FM/T RHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- GTI /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MB436495
BRACKET, ENG ROLL STOPPER, LH
|
MB436495 |
— | ||
|
02701L
|
02701L
MB581657 BRACKET, ENG ROLL STOPPER, LH |
MB581657 |
US $88.80 |
||
|
02701R
|
02701R
MB436490 BRACKET, ENG ROLL STOPPER, RH |
MB436490 |
US $72.52 |
||
|
02701R
|
02701R
MB581656 BRACKET, ENG ROLL STOPPER, RH |
MB581656 |
US $79.92 |
||
|
02703L
|
02703L
MD136195 BRACKET, CYLINDER BLOCK ROLL STOPPER, LH |
MD136195 |
US $187.96 |
||
|
02703R
|
02703R
MD133344 BRACKET, CYLINDER BLOCK ROLL STOPPER, RH |
MD133344 |
US $109.52 |
||
|
02803
|
02803
MD135827 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MD135827 |
US $388.75 |
||
|
02803
|
02803
MD140304 BRACKET, CYLINDER BLOCK ENG MOUNTING, LH |
MD140304 |
US $165.76 |
||
|
02803
|
02803
MD195094
BRACKET, CYLINDER BLOCK ENG FR MOUNTING
|
MD195094 |
— | ||
|
02804R
|
02804R
MD131586 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD131586 |
US $236.80 |
||
|
02804R
|
02804R
MD140392 BRACKET, CYLINDER BLOCK ENG MOUNTING, RH |
MD140392 |
US $204.24 |
||
|
02807
|
02807
MB436505
BRACKET, ENG FR MOUNTING
|
MB436505 |
— | ||
|
02807
|
02807
MB581422
BRACKET,ENG FR MOUNTING
|
MB581422 |
— | ||
|
02844
|
02844
MB436568
STOPPER, ENG RR MOUNTING CUSHION
|
MB436568 |
— | ||
|
02881
|
02881
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
02883B
|
02883B
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02883C
|
02883C
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883C
|
02883C
MB288462V
nut
|
MB288462V |
— | ||
|
02886B
|
02886B
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
02886C
|
02886C
MU101017 BOLT, ENG SUPPORT RODCone point,10x110 |
MU101017 |
US $7.25 |
||
|
02886D
|
02886D
MF140473
BOLT, ENG SUPPORT ROD
|
MF140473 |
— | ||
| replacement | |||||
|
02886D
|
02886D
MF911704 BOLT, COOLING FAN |
MF911704 |
from US $2.65 |
||
|
02886E
|
02886E
MF140470 BOLT, ENG SUPPORT RODFlange,10x60 |
MF140470 |
US $2.37 |
||
|
02887B
|
02887B
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
02887C
|
02887C
MB007174 WASHER, ENG SUPPORT RODPlain,10.5 |
MB007174 |
US $3.97 |
||
|
02887D
|
02887D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
02887S
|
02887S
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02887T
|
02887T
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
02887U
|
02887U
MD129421 WASHER, ENG MOUNTINGPlain,8 |
MD129421 |
US $8.21 |
||
|
02888B
|
02888B
MB243093 STUD, ENG MOUNTING10x65 |
MB243093 |
US $7.10 |
||
|
02888C
|
02888C
MF402563 STUD, ENG OIL PUMP INR |
MF402563 |
US $1.92 |
||
|
02889
|
02889
MD131332 STAY, ENG MOUNTING |
MD131332 |
US $17.76 |
||
|
02890B
|
02890B
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02890C
|
02890C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
02890D
|
02890D
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
02890S
|
02890S
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
02890S
|
02890S
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02890T
|
02890T
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
02891B
|
02891B
MB175769
BOLT, ENG MOUNTING
|
MB175769 |
— | ||
|
02891C
|
02891C
MB006929 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB006929 |
US $7.66 |
||
|
02891C
|
02891C
MB309043 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB309043 |
US $4.59 |
||
|
02891N
|
02891N
MS240140 BOLT, ENG MOUNTINGWasher assembled,8x25 |
MS240140 |
from US $1.54 |
||
|
02891Q
|
02891Q
MF241307 BOLTWasher assembled,12x25 |
MF241307 |
US $1.64 |
||
|
02891S
|
02891S
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
02891S
|
02891S
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
02891T
|
02891T
MD077190
BOLT, ENG SUPPORT ROD
|
MD077190 |
— | ||
|
02891U
|
02891U
MS240216 BOLT, ENG MOUNTINGWasher assembled,10x25 |
MS240216 |
US $2.60 |
||
|
02891V
|
02891V
MS240221 BOLT, ENG MOUNTINGWasher assembled,10x40 |
MS240221 |
US $3.15 |
||
|
02891W
|
02891W
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
02891W
|
02891W
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
02891X
|
02891X
MD194109 BOLT, ENG MOUNTINGW/sealant,10x22 |
MD194109 |
US $3.15 |
||
|
02891X
|
02891X
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02891Y
|
02891Y
MF241281 BOLT, CYLINDER BLOCKWasher assembled,10x22 |
MF241281 |
from US $1.37 |
||
|
02891Z
|
02891Z
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
03148
|
03148
MD130032
ARM, TIMING BELT TENSIONER
|
MD130032 |
— | ||
|
03152
|
03152
MD156604 PULLEY, TIMING BELT IDLER |
MD156604 |
from US $38.63 |
||
|
13007
|
13007
MD083606 BRACKET, EXHAUST PIPE SUPPORT |
MD083606 |
US $11.25 |
||
|
13007
|
13007
MD153528 BRACKET, EXHAUST PIPE SUPPORT |
MD153528 |
US $15.54 |
||
|
21807B
|
21807B
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
21807C
|
21807C
MF104927 BOLT, ENG FR MOUNTING12x100 |
MF104927 |
US $4.92 |
||
|
21809
|
21809
MB436569
STOPPER, T/M MOUNTING
|
MB436569 |
— | ||
|
21831
|
21831
MB436541 BRACKET, T/M MOUNTING BODY SIDE |
MB436541 |
US $102.12 |
||
|
21893
|
21893
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
21896
|
21896
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
