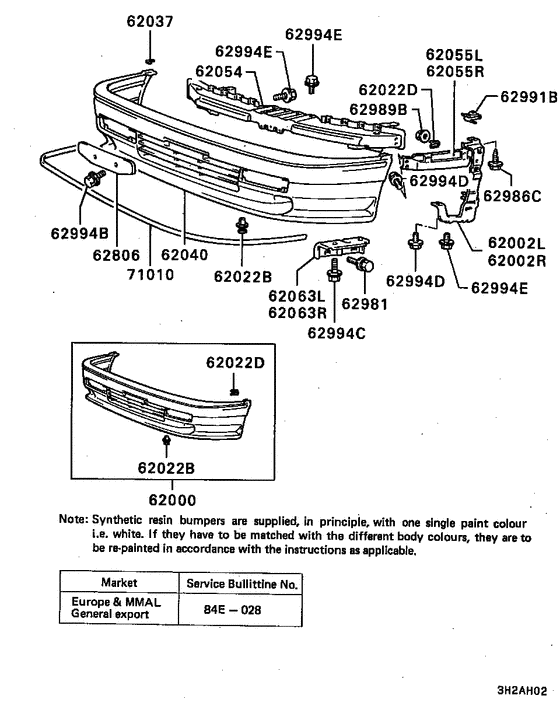

Front bumper & support (LARGE BUMPER) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1989 - 1992
- Sales region
- EUR
- Note
- GTI 4WD/S(HATCHBACK/ANTI-POLL),5FM/T RHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- GTI /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MB598571 FACE KIT, FR BUMPER |
MB598571 |
US $398.94 |
||
|
62000
|
62000
MB598633 FACE KIT, FR BUMPER |
MB598633 |
US $1,108.02 |
||
|
62000
|
62000
MB598634
FACE KIT,FR BUMPER
|
MB598634 |
— | ||
|
62000
|
62000
MB598635
FACE KIT,FR BUMPER
|
MB598635 |
— | ||
|
62000
|
62000
MB598636
FACE KIT,FR BUMPER
|
MB598636 |
— | ||
|
62000
|
62000
MB598638
BUMPER KIT,FR
|
MB598638 |
— | ||
|
62000
|
62000
MB598639 FACE KIT,FR BUMPER |
MB598639 |
US $1,641.60 |
||
|
62000
|
62000
MB598640
FACE KIT,FR BUMPER
|
MB598640 |
— | ||
|
62000
|
62000
MB598641
FACE KIT,FR BUMPER
|
MB598641 |
— | ||
|
62000
|
62000
MB598642
FACE KIT,FR BUMPER
|
MB598642 |
— | ||
|
62000
|
62000
MB598643
FACE KIT,FR BUMPER
|
MB598643 |
— | ||
|
62000
|
62000
MB831344
FACE KIT,FR BUMPER
|
MB831344 |
— | ||
|
62000
|
62000
MB831345
FACE KIT,FR BUMPER
|
MB831345 |
— | ||
|
62000
|
62000
MB831346
FACE KIT,FR BUMPER
|
MB831346 |
— | ||
|
62000
|
62000
MB831347
FACE KIT,FR BUMPER
|
MB831347 |
— | ||
|
62000
|
62000
MB861944
FACE KIT,FR BUMPER
|
MB861944 |
— | ||
|
62000
|
62000
MB861945
FACE KIT,FR BUMPER
|
MB861945 |
— | ||
|
62000
|
62000
MB861946
FACE KIT,FR BUMPER
|
MB861946 |
— | ||
|
62000
|
62000
MB861947
FACE KIT,FR BUMPER
|
MB861947 |
— | ||
|
62002L
|
62002L
MB546037 BRACKET, FR BUMPER SIDE, LH |
MB546037 |
US $37.62 |
||
|
62002R
|
62002R
MB546038 BRACKET, FR BUMPER SIDE, RH |
MB546038 |
US $37.62 |
||
|
62022B
|
62022B
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
62022D
|
62022D
MB325299 CLIP, FR BUMPER0.3 |
MB325299 |
US $4.24 |
||
|
62037
|
62037
MB575451 PAD, FR BUMPER FACE47 |
MB575451 |
US $4.10 |
||
|
62040
|
62040
MB724839 FACE, FR BUMPER |
MB724839 |
US $1,684.80 |
||
|
62040
|
62040
MB724840
FACE,FR BUMPER
|
MB724840 |
— | ||
|
62040
|
62040
MB724841 FACE,FR BUMPER |
MB724841 |
US $1,641.60 |
||
|
62040
|
62040
MB724842
FACE,FR BUMPER
|
MB724842 |
— | ||
|
62040
|
62040
MB726524 FACE, FR BUMPER |
MB726524 |
US $340.70 |
||
|
62040
|
62040
MB740100
FACE,FR BUMPER
|
MB740100 |
— | ||
|
62040
|
62040
MB740101
FACE,FR BUMPER
|
MB740101 |
— | ||
|
62040
|
62040
MB740102
FACE,FR BUMPER
|
MB740102 |
— | ||
|
62040
|
62040
MB740103
FACE,FR BUMPER
|
MB740103 |
— | ||
|
62040
|
62040
MB749124
FACE,FR BUMPER
|
MB749124 |
— | ||
|
62040
|
62040
MB749125
FACE,FR BUMPER
|
MB749125 |
— | ||
|
62040
|
62040
MB773102
FACE,FR BUMPER
|
MB773102 |
— | ||
|
62040
|
62040
MB773103
FACE,FR BUMPER
|
MB773103 |
— | ||
|
62040
|
62040
MB773104
FACE,FR BUMPER
|
MB773104 |
— | ||
|
62040
|
62040
MB773105
FACE,FR BUMPER
|
MB773105 |
— | ||
|
62054
|
62054
MB545204 REINFORCEMENT, FR BUMPER |
MB545204 |
US $378.56 |
||
|
62054
|
62054
MB546023
REINFORCEMENT, FR BUMPER
|
MB546023 |
— | ||
|
62054
|
62054
MB642373
REINFORCEMENT, FR BUMPER
|
MB642373 |
— | ||
|
62055L
|
62055L
MB595125 REINFORCEMENT, FR BUMPER SIDE, LH |
MB595125 |
US $39.22 |
||
|
62055R
|
62055R
MB595126 REINFORCEMENT, FR BUMPER SIDE, RH |
MB595126 |
US $39.22 |
||
|
62063L
|
62063L
MB549501 STAY, FR BUMPER SUPPORT |
MB549501 |
US $32.15 |
||
|
62063R
|
62063R
MB549502 STAY, FR BUMPER SUPPORT |
MB549502 |
US $32.15 |
||
|
62806
|
62806
MB545860
BRACKET,FR LICENSE PLATE
|
MB545860 |
— | ||
|
62806
|
62806
MB625080 BRACKET,FR LICENSE PLATE |
MB625080 |
US $38.48 |
||
|
62981
|
62981
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
62986C
|
62986C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62989B
|
62989B
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
62991B
|
62991B
MB481588 GROMMET, FR BUMPERScrew .,6 |
MB481588 |
from US $2.07 |
||
|
62994B
|
62994B
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.78 |
||
|
62994C
|
62994C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
62994D
|
62994D
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
62994E
|
62994E
MB369296 BOLT, FR BUMPERFlange,6x14 |
MB369296 |
US $2.66 |
||
|
71010
|
71010
MB545972 MOULDING, FR BUMPER3010 |
MB545972 |
US $100.55 |
