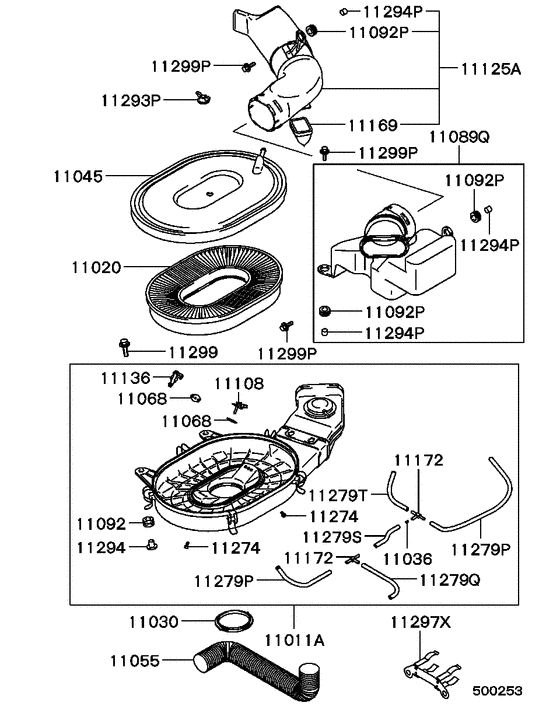

Air cleaner (CARBURETOR..WITH PRE AIR CLEANER) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- GL,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD620799
BODY ASSY,AIR CLEANER
|
MD620799 |
— | ||
|
11011A
|
11011A
MD620809 BODY ASSY, AIR CLEANER |
MD620809 |
US $42.18 |
||
|
11020
|
11020
MD620721
ELEMENT,AIR CLEANER
|
MD620721 |
— | ||
|
11030
|
11030
MD025181 GASKET, AIR CLEANER TO CARB |
MD025181 |
US $9.44 |
||
|
11036
|
11036
MD167028 JET, AIR CLEANER VACUUM |
MD167028 |
US $12.14 |
||
|
11045
|
11045
MD620717 COVER, AIR CLEANER |
MD620717 |
US $63.64 |
||
|
11055
|
11055
MD175722 HEAT DUCT, AIR CLEANER38x570 |
MD175722 |
US $71.78 |
||
|
11055
|
11055
MD302468 HEAT DUCT, AIR CLEANER38x500 |
MD302468 |
US $73.26 |
||
|
11068
|
11068
MD620244 GASKET, AIR CLEANER TEMPERATURE SENSOR |
MD620244 |
US $2.37 |
||
|
11089Q
|
11089Q
MD191755 DUCT, AIR CLEANER INTAKE |
MD191755 |
US $120.62 |
||
|
11092
|
11092
MD620598 INSULATOR, AIR CLEANER SUPPORT |
MD620598 |
US $3.26 |
||
|
11092
|
11092
MD620724 INSULATOR, AIR CLEANER SUPPORT |
MD620724 |
US $3.26 |
||
|
11092P
|
11092P
MD604772
INSULATOR,AIR CLEANER SUPPORT
|
MD604772 |
— | ||
|
11092P
|
11092P
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11108
|
11108
MD620541
COMPENSATOR,AIR CLEANER IDLE
|
MD620541 |
— | ||
|
11125A
|
11125A
MD190883
PRE-CLEANER ASSY,AIR CLEANER INLET
|
MD190883 |
— | ||
|
11136
|
11136
MD620814 SENSOR, AIR CLEANER AIR TEMPERATURE |
MD620814 |
US $111 |
||
|
11169
|
11169
MD604726
PAN,PRE-CLEANER DUST
|
MD604726 |
— | ||
|
11172
|
11172
MD001865 JOINT, FUEL CONTROL LINE |
MD001865 |
from US $2.63 |
||
|
11274
|
11274
MF350024 SCREW, FUEL TANKWasher assembled,4x10 |
MF350024 |
US $2.05 |
||
|
11274
|
11274
MF350744 SCREW, ENG BREATHERWasher assembled,4x10 |
MF350744 |
US $2.05 |
||
|
11279P
|
11279P
MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632592 |
US $54.72 |
||
|
11279Q
|
11279Q
MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632592 |
US $54.72 |
||
|
11279S
|
11279S
MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632592 |
US $54.72 |
||
|
11279T
|
11279T
MS632592 HOSE, EMISSION VACUUM CONTROL EQUIP3x2000 |
MS632592 |
US $54.72 |
||
|
11293P
|
11293P
MD154913 NUT, AIR CLEANERWing,8 |
MD154913 |
from US $5.40 |
||
|
11294
|
11294
MD620599 COLLAR, AIR CLEANER |
MD620599 |
US $2.33 |
||
|
11294
|
11294
MD620725 COLLAR, AIR CLEANER |
MD620725 |
US $2.66 |
||
|
11294P
|
11294P
MD604773
COLLAR,AIR CLEANER
|
MD604773 |
— | ||
|
11294P
|
11294P
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297X
|
11297X
MD175528 CLAMP, AIR CLEANER |
MD175528 |
US $10.66 |
||
|
11299
|
11299
MD194046 BOLT, AIR CLEANERWasher assembled,6x30 |
MD194046 |
US $3.15 |
||
|
11299
|
11299
MD305640 BOLT, AIR CLEANERWasher assembled,6x35 |
MD305640 |
from US $1.70 |
||
|
11299
|
11299
MF248193 BOLT, AIR CLEANERWasher assembled,8x25 |
MF248193 |
US $2.60 |
||
|
11299P
|
11299P
MS240199 BOLT, FR SEAT BELTWasher assembled,6x20 |
MS240199 |
US $1.92 |
