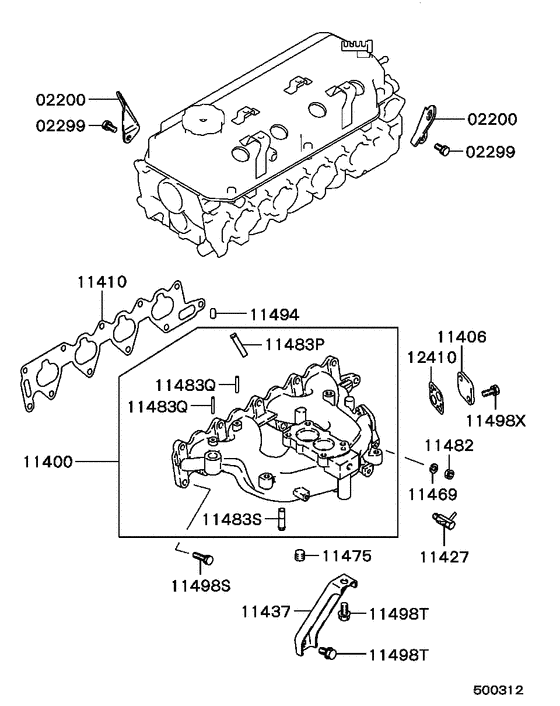

Inlet manifold (CARBURETOR) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1993
- Sales region
- EUR
- Note
- GL,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200
|
02200
MD196781 ENGINE HANGER |
MD196781 |
US $7.66 |
||
|
02299
|
02299
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
02299
|
02299
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
11400
|
11400
MD183802
MANIFOLD,INLET
|
MD183802 |
— | ||
|
11400
|
11400
MD302175
MANIFOLD,INLET
|
MD302175 |
— | ||
|
11400
|
11400
MD315481
MANIFOLD,INLET
|
MD315481 |
— | ||
|
11406
|
11406
MD103510 COVER, INLET MANIFOLD |
MD103510 |
US $27.36 |
||
|
11410
|
11410
MD172796
GASKET,INLET MANIFOLD
|
MD172796 |
— | ||
|
11410
|
11410
MD188529 GASKET, INLET MANIFOLD |
MD188529 |
US $14.36 |
||
|
11427
|
11427
MD093702 JOINT, INLET MANIFOLD |
MD093702 |
US $20.72 |
||
|
11437
|
11437
MD173273 STAY, INLET MANIFOLD |
MD173273 |
US $49.58 |
||
|
11437
|
11437
MD189334
STAY,INLET MANIFOLD
|
MD189334 |
— | ||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11475
|
11475
MS661142 PLUG, CYLINDER HEADTaper,3/8 |
MS661142 |
US $3.56 |
||
|
11482
|
11482
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
11482
|
11482
MF430151 NUT, RR AXLEJam,8 |
MF430151 |
US $2.05 |
||
|
11483P
|
11483P
MD024599 NIPPLE, ROCKER COVER8 |
MD024599 |
US $5.03 |
||
|
11483P
|
11483P
MD102444 NIPPLE, ROCKER COVERD=8 |
MD102444 |
US $2.60 |
||
|
11483Q
|
11483Q
MD008484 NIPPLE, INLET MANIFOLD4 |
MD008484 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11483S
|
11483S
MD017329 JOINT, CYLINDER HEAD |
MD017329 |
US $3.55 |
||
|
11494
|
11494
MD026761 CAP, ROCKER COVER2.9 |
MD026761 |
from US $2.69 |
||
|
11498S
|
11498S
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
11498T
|
11498T
MF140056 BOLT, ENG BREATHERFlange,10x16 |
MF140056 |
US $1.37 |
||
|
11498X
|
11498X
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12410
|
12410
MD183535 GASKET, EGR VALVE |
MD183535 |
US $2.46 |
||
