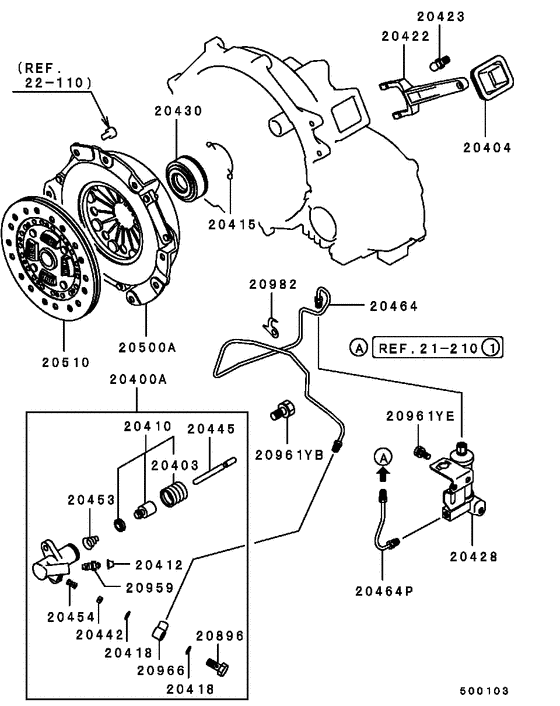

Clutch & clutch release (9305.1-) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- V6-24(HATCHBACK),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 24
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20400A
|
20400A
MD745176 Cylinder Assy, Clutch Release |
MD745176 |
US $125.06 |
||
|
20403
|
20403
MD621006 BOOT, CLUTCH RELEASE CYLINDER |
MD621006 |
from US $4.80 |
||
|
20404
|
20404
MD718077 BOOT, CLUTCH RELEASE FORK |
MD718077 |
from US $10.24 |
||
|
20410
|
20410
MD972448
CYLINDER KIT, CLUTCH RELEASE
|
MD972448 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.72 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $1.62 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.79 |
||
|
20422
|
20422
MD737180 FORK, CLUTCH RELEASE |
MD737180 |
US $159.84 |
||
|
20423
|
20423
MD719602 FULCRUM, CLUTCH RELEASE FORK |
MD719602 |
from US $7.98 |
||
|
20428
|
20428
MD746400 CHAMBER, CLUTCH FLUID |
MD746400 |
US $108.04 |
||
|
20430
|
20430
MD706180
BEARING, CLUTCH RELEASE
|
MD706180 |
— | ||
| replacement | |||||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20445
|
20445
MD621009 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD621009 |
from US $11.76 |
||
|
20453
|
20453
MD621008 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD621008 |
US $4.10 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20464
|
20464
MD745174 TUBE, CLUTCH RELEASE CYLINDER |
MD745174 |
US $20.72 |
||
|
20464
|
20464
MD746095
TUBE,CLUTCH RELEASE CYLINDER
|
MD746095 |
— | ||
|
20464P
|
20464P
MD745644 TUBE, CLUTCH RELEASE CYLINDER |
MD745644 |
US $11.25 |
||
|
20500A
|
20500A
MD736576 COVER ASSY, CLUTCH |
MD736576 |
US $204.24 |
||
|
20500A
|
20500A
MD746631 COVER ASSY, CLUTCH |
MD746631 |
US $205.72 |
||
|
20500A
|
20500A
MD747171 COVER ASSY, CLUTCH |
MD747171 |
US $204.24 |
||
|
20500A
|
20500A
MD749762 COVER ASSY, CLUTCH |
MD749762 |
US $185 |
||
|
20510
|
20510
MD741736 DISC, CLUTCH225 |
MD741736 |
US $161.32 |
||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
20961YE
|
20961YE
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
20966
|
20966
MD621013
UNION, M/T CLUTCH CONTROL EQUIP
|
MD621013 |
— | ||
| replacement | |||||
|
20966
|
20966
2324A057 UNION, M/T CLUTCH CONTROL EQUIP |
2324A057 |
US $7.25 |
||
|
20982
|
20982
MD734347 CLIP, M/T CLUTCH CONTROL EQUIP |
MD734347 |
US $5.20 |
||
|
