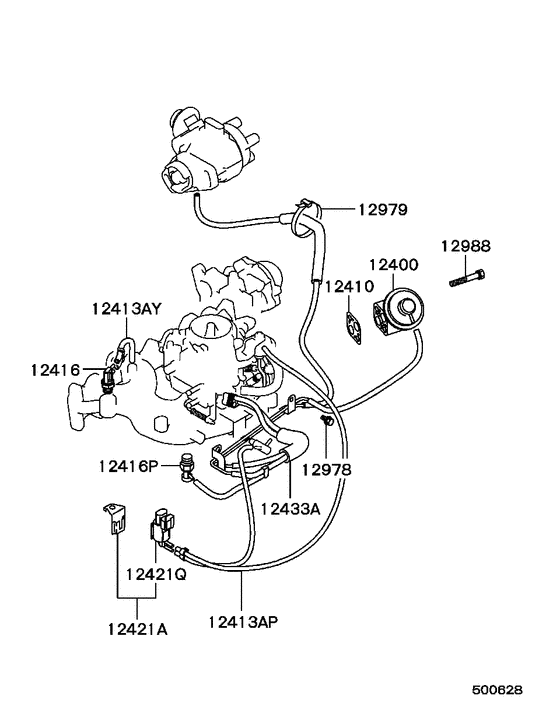

Emission control (CARBURETOR..WITH EGR VALVE) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- SUPER SALOON,4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- SUPER SALOON
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD193660
VALVE,EGR
|
MD193660 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12410
|
12410
MD183535 GASKET, EGR VALVE |
MD183535 |
US $2.46 |
||
|
12413AP
|
12413AP
MD302174
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD302174 |
— | ||
|
12413AY
|
12413AY
MD168559 HOSE ASSY, EMISSION VACUUM CONTROL |
MD168559 |
US $7.70 |
||
|
12416
|
12416
MD120694 THERMO-VALVE, EMISSION CONTROL |
MD120694 |
US $23.26 |
||
|
12421A
|
12421A
MB957064
VALVE ASSY,EMISSION SOLENOID
|
MB957064 |
— | ||
|
12421A
|
12421A
MD168619 VALVE ASSY, EMISSION SOLENOID |
MD168619 |
US $73.26 |
||
|
12421Q
|
12421Q
MB957046
VALVE, EMISSION SOLENOID
|
MB957046 |
— | ||
|
12421Q
|
12421Q
MD074898 VALVE, EMISSION SOLENOID |
MD074898 |
US $68.08 |
||
|
12421Q
|
12421Q
MD140994 VALVE, EMISSION SOLENOID |
MD140994 |
US $69.56 |
||
|
12433A
|
12433A
MD194266
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD194266 |
— | ||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
