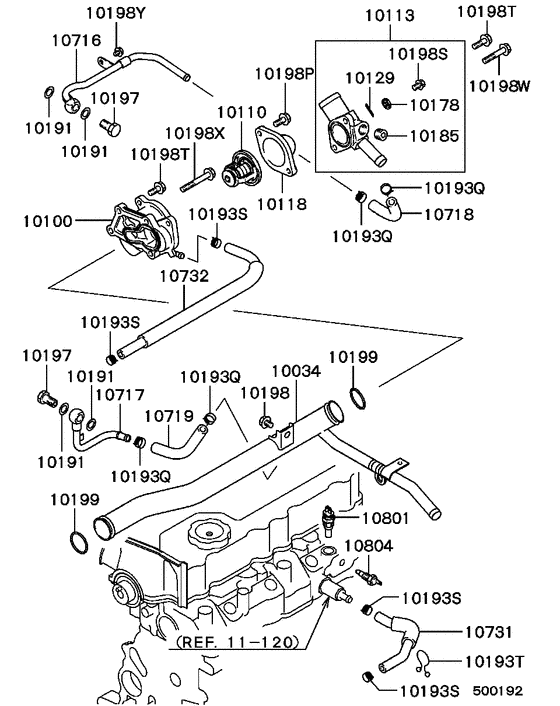

Water pipe & thermostat (ALL) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- GL(SEDAN),5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GL
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD190216 PIPE, WATER PUMP INLET |
MD190216 |
US $131.33 |
||
|
10100
|
10100
MD184095 CASE, THERMOSTAT |
MD184095 |
US $96.20 |
||
|
10110
|
10110
MD164541 THERMOSTAT KIT76.5 |
MD164541 |
US $41.72 |
||
|
10110
|
10110
MD317015 THERMOSTAT76.5 |
MD317015 |
from US $25.16 |
||
|
10113
|
10113
MD300832 FITTING, COOLING WATER OUTLET HOSE |
MD300832 |
US $65.12 |
||
|
10113
|
10113
MD300856 FITTING, COOLING WATER OUTLET HOSE |
MD300856 |
US $67.34 |
||
|
10118
|
10118
MD184105 FITTING, COOLING WATER INLET HOSE |
MD184105 |
US $55.50 |
||
|
10129
|
10129
MD183288
LABEL, THERMOSTAT CASE CAUTION
|
MD183288 |
— | ||
|
10178
|
10178
MD178052 WASHER, COOLING WATER LINE |
MD178052 |
US $2.46 |
||
|
10178
|
10178
MD320544 WASHER, COOLING WATER LINESeal,8.1 |
MD320544 |
from US $1.77 |
||
|
10185
|
10185
MD300833 PLUG, COOLING WATER LINETaper,3/8 |
MD300833 |
US $4.59 |
||
|
10191
|
10191
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
10193Q
|
10193Q
MS660243 CLIP, COOLING WATER LINE15.5 |
MS660243 |
from US $5.19 |
||
|
10193S
|
10193S
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10193T
|
10193T
MD006478 CLIP, FUEL VAPOR CONTROL LINE25 |
MD006478 |
US $2.66 |
||
|
10197
|
10197
MF650113
EYEBOLT, ENG OIL LINE
|
MF650113 |
— | ||
| replacement | |||||
|
10197
|
10197
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
10198S
|
10198S
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198S
|
10198S
MF140641 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140641 |
US $2.22 |
||
|
10198T
|
10198T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198W
|
10198W
MF140234 BOLT, TIMING GEAR CASEFlange,8x45 |
MF140234 |
from US $1.46 |
||
|
10198X
|
10198X
MF140237 BOLT, WATER PUMPFlange,8x60 |
MF140237 |
from US $1.99 |
||
|
10198Y
|
10198Y
MF140201 BOLT, ENG RR PLATEFlange,6x8 |
MF140201 |
from US $0.72 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10716
|
10716
MD184098 PIPE, T/C WATER FEED |
MD184098 |
US $34.78 |
||
|
10717
|
10717
MD184099 PIPE, T/C WATER RETURN |
MD184099 |
US $37.74 |
||
|
10718
|
10718
MD120466 HOSE, COOLING WATER LINE9x140 |
MD120466 |
from US $7.84 |
||
|
10719
|
10719
MD082347 HOSE, COOLING WATER LINE9x125 |
MD082347 |
from US $4.23 |
||
|
10731
|
10731
MD161844 HOSE, INJECTION PUMP WATER FEED |
MD161844 |
US $8.14 |
||
|
10731
|
10731
MD301031 HOSE, INJECTION PUMP WATER FEED |
MD301031 |
US $6.51 |
||
|
10732
|
10732
MD187471 HOSE, INJECTION PUMP WATER RETURN |
MD187471 |
US $16.28 |
||
|
10801
|
10801
MD050214 GAUGE UNIT, WATER TEMPERATURE |
MD050214 |
from US $30.73 |
||
|
10804
|
10804
MD193309 SWITCH UNIT, WATER TEMPERATURE |
MD193309 |
US $53.28 |
||
|
