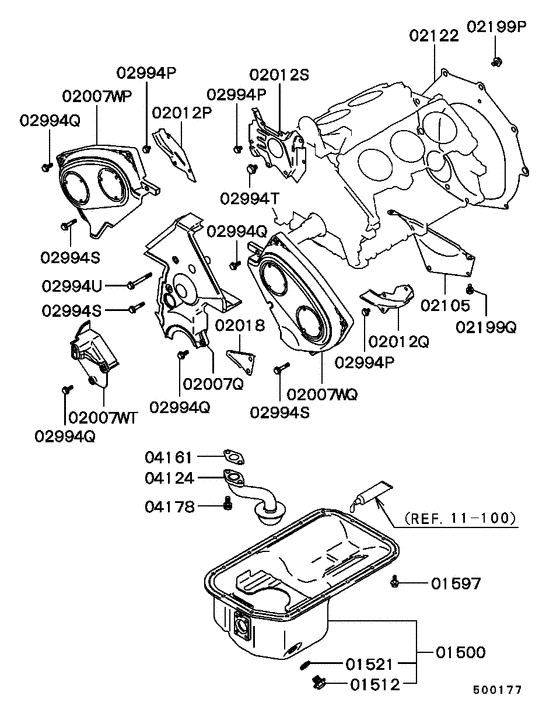

Cover,rear plate & oil pan (ALL) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1994
- Sales region
- EUR
- Note
- V6-24 4WS(HATCHBACK),5FM/T LHD
- drive
- 2WD/4WS/4WS
- transmission
- 5FM/T
- grade
- 24
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01500
|
01500
MD191120
OIL PAN,ENG
|
MD191120 |
— | ||
|
01512
|
01512
MD050316 PLUG, ENG OIL PAN... |
MD050316 |
from US $5.30 |
||
|
01521
|
01521
MD050317 GASKET, ENG OIL PAN DRAIN PLUGD=14 |
MD050317 |
from US $1.23 |
||
|
01597
|
01597
MD097012 BOLT, ENG OIL PANFlange,6x10 |
MD097012 |
from US $1.01 |
||
|
02007Q
|
02007Q
MD183343 COVER, TIMING BELT |
MD183343 |
US $66.60 |
||
|
02007Q
|
02007Q
MD307448 COVER, TIMING BELT |
MD307448 |
US $56.24 |
||
|
02007WP
|
02007WP
MD179782 COVER, TIMING BELT |
MD179782 |
US $74.74 |
||
|
02007WQ
|
02007WQ
MD183344 COVER, TIMING BELT |
MD183344 |
US $68.82 |
||
|
02007WT
|
02007WT
MD179446 COVER, TIMING BELT |
MD179446 |
US $48.84 |
||
|
02012P
|
02012P
MD179865 COVER, TIMING BELT UNDER |
MD179865 |
US $12.43 |
||
|
02012Q
|
02012Q
MD183345 COVER, TIMING BELT UNDER |
MD183345 |
US $16.28 |
||
|
02012S
|
02012S
MD177745 COVER, TIMING BELT UNDER |
MD177745 |
US $22.94 |
||
|
02018
|
02018
MD199436 INDICATOR, IGNITION TIMING |
MD199436 |
US $7.70 |
||
|
02105
|
02105
MD177934 COVER, FLYWHEEL HOUSING, FR LWR |
MD177934 |
US $13.32 |
||
|
02122
|
02122
MD177930 PLATE, CYLINDER BLOCK, RR |
MD177930 |
US $27.38 |
||
|
02199P
|
02199P
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
02199Q
|
02199Q
MD113183
BOLT, ENG RR PLATE
|
MD113183 |
— | ||
|
02994P
|
02994P
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
02994Q
|
02994Q
MF140206 BOLT, CYLINDER HEADFlange,6x18 |
MF140206 |
from US $0.78 |
||
|
02994S
|
02994S
MF140212 BOLT, TIMING BELT COVERFlange,6x32 |
MF140212 |
US $3.01 |
||
|
02994T
|
02994T
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
02994U
|
02994U
MF140219 BOLT, TIMING BELT COVERFlange,6x60 |
MF140219 |
US $2.81 |
||
|
04124
|
04124
MD184734 STRAINER, ENG OIL PAN |
MD184734 |
US $40.70 |
||
|
04161
|
04161
MD183239 GASKET, OIL STRAINER |
MD183239 |
from US $2.09 |
||
|
04178
|
04178
MS241071 BOLT, OIL STRAINERWasher assembled,8x20 |
MS241071 |
from US $1.21 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
