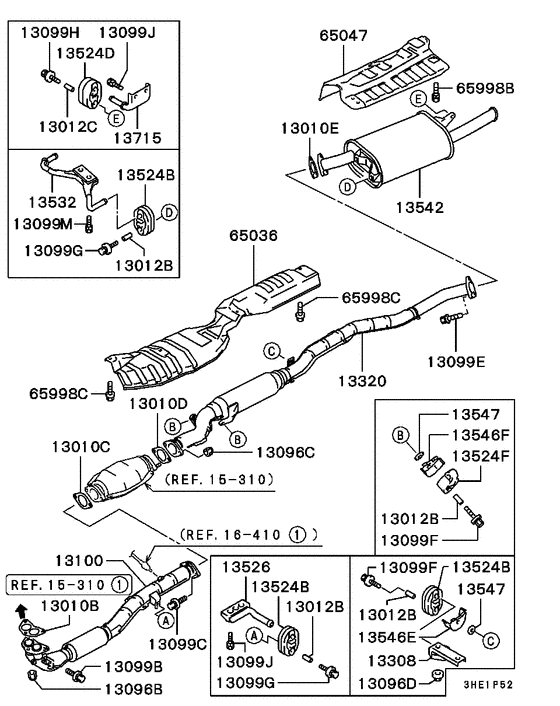

Exhaust pipe & muffler (ALL) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- GLSI-4(SEDAN/4WD),5FM/T LHD
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- GLSI-4
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687021 GASKET, EXHAUST PIPE |
MB687021 |
from US $6.16 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13012C
|
13012C
MB611937 COLLAR, EXHAUST PIPE |
MB611937 |
from US $1.79 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096D
|
13096D
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
13099B
|
13099B
MF244884 BOLT, ENG RR MOUNTINGWasher assembled,10x35 |
MF244884 |
from US $1.37 |
||
|
13099C
|
13099C
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099E
|
13099E
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099G
|
13099G
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099G
|
13099G
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.58 |
||
|
13099H
|
13099H
MF243662 BOLT, RADIATORWasher assembled,8x55 |
MF243662 |
US $2.33 |
||
|
13099J
|
13099J
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099M
|
13099M
MF240057 BOLT, CYLINDER HEADWasher assembled,8x30 |
MF240057 |
from US $1.21 |
||
|
13100
|
13100
MB868193
PIPE,EXHAUST,FR
|
MB868193 |
— | ||
|
13308
|
13308
MB868220
HANGER, EXHAUST CTR PIPE
|
MB868220 |
— | ||
|
13320
|
13320
MB868204
PIPE,EXHAUST,CTR
|
MB868204 |
— | ||
|
13524B
|
13524B
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB924316 HANGER, EXHAUST MUFFLER |
MB924316 |
from US $14.06 |
||
|
13524F
|
13524F
MB611935 HANGER, EXHAUST MUFFLER |
MB611935 |
US $12.86 |
||
|
13526
|
13526
MB431769 HANGER, EXHAUST MUFFLER, FR |
MB431769 |
US $61.42 |
||
|
13532
|
13532
MB925888 HANGER, EXHAUST MUFFLER, RR |
MB925888 |
US $59.94 |
||
|
13542
|
13542
MB957223
MUFFLER,EXHAUST MAIN
|
MB957223 |
— | ||
|
13546E
|
13546E
MB687527 PROTECTOR, EXHAUST MUFFLER HANGER |
MB687527 |
US $8.21 |
||
|
13546F
|
13546F
MB549135 PROTECTOR, EXHAUST MUFFLER HANGER |
MB549135 |
US $5.62 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13715
|
13715
MB868225 HANGER, EXHAUST TAIL PIPE |
MB868225 |
US $24.42 |
||
|
65036
|
65036
MB865006 PROTECTOR, UNDER FR FLOOR HEAT |
MB865006 |
US $118.40 |
||
|
65047
|
65047
MB889180 PROTECTOR, UNDER RR FLOOR HEAT |
MB889180 |
US $55.50 |
||
|
65998B
|
65998B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
65998C
|
65998C
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
