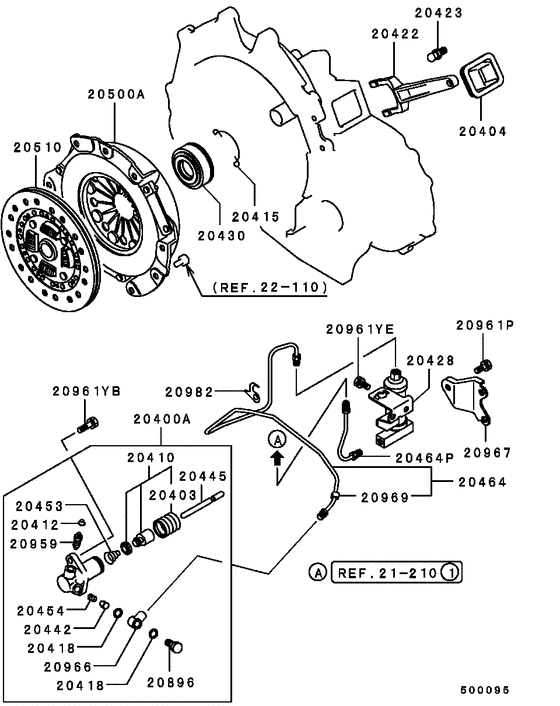

Clutch & clutch release (9212.1-) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- V6-24 4WD/S(HATCHBACK),5FM/T LHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- 24 /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20400A
|
20400A
MD728992 Cylinder Assy, Clutch Release |
MD728992 |
US $125.06 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7.25 |
||
|
20404
|
20404
MD718077 BOOT, CLUTCH RELEASE FORK |
MD718077 |
from US $10.24 |
||
|
20410
|
20410
MD997786
CYLINDER KIT, CLUTCH RELEASE
|
MD997786 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.72 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $1.62 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.79 |
||
|
20422
|
20422
MD738709
FORK, CLUTCH RELEASE
|
MD738709 |
— | ||
| replacement | |||||
|
20422
|
20422
MD770511 FORK, CLUTCH RELEASE |
MD770511 |
US $146.38 |
||
|
20423
|
20423
MD719602 FULCRUM, CLUTCH RELEASE FORK |
MD719602 |
from US $7.98 |
||
|
20428
|
20428
MD746100 CHAMBER, CLUTCH FLUID |
MD746100 |
US $109.52 |
||
|
20428
|
20428
MD746400 CHAMBER, CLUTCH FLUID |
MD746400 |
US $108.04 |
||
|
20430
|
20430
MD719925
BEARING, CLUTCH RELEASE
|
MD719925 |
— | ||
| replacement | |||||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20445
|
20445
MD620228 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD620228 |
US $12.28 |
||
|
20453
|
20453
MD603467 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD603467 |
US $3.28 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20464
|
20464
MD744451
TUBE,CLUTCH RELEASE CYLINDER
|
MD744451 |
— | ||
|
20464
|
20464
MD745180
TUBE,CLUTCH RELEASE CYLINDER
|
MD745180 |
— | ||
|
20464
|
20464
MD746093
TUBE,CLUTCH RELEASE CYLINDER
|
MD746093 |
— | ||
|
20464P
|
20464P
MD745182 TUBE, CLUTCH RELEASE CYLINDER |
MD745182 |
US $13.17 |
||
|
20464P
|
20464P
MD745644 TUBE, CLUTCH RELEASE CYLINDER |
MD745644 |
US $11.25 |
||
|
20500A
|
20500A
MD735195 COVER ASSY, CLUTCH |
MD735195 |
US $223.48 |
||
|
20500A
|
20500A
MD739223 COVER ASSY, CLUTCH |
MD739223 |
US $253.08 |
||
|
20510
|
20510
MD741290 DISC, CLUTCH225 |
MD741290 |
US $195.36 |
||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961P
|
20961P
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
20961YE
|
20961YE
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
20961YE
|
20961YE
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
20966
|
20966
MD621013
UNION, M/T CLUTCH CONTROL EQUIP
|
MD621013 |
— | ||
| replacement | |||||
|
20966
|
20966
2324A057 UNION, M/T CLUTCH CONTROL EQUIP |
2324A057 |
US $7.25 |
||
|
20967
|
20967
MD746099 STAY, M/T CLUTCH CONTROL EQUIP |
MD746099 |
US $12.14 |
||
|
20969
|
20969
MB238895 PROTECTOR, CLUTCH M/CYL |
MB238895 |
US $2.07 |
||
|
20982
|
20982
MD734347 CLIP, M/T CLUTCH CONTROL EQUIP |
MD734347 |
US $5.20 |
||
|
