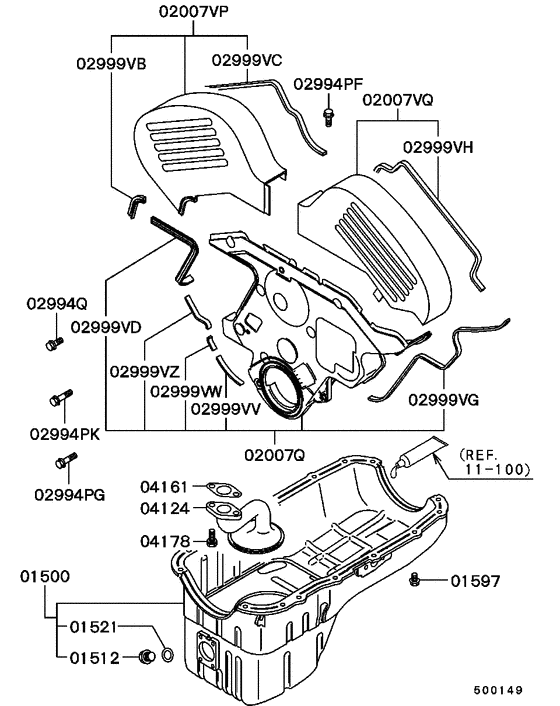

Cover,rear plate & oil pan (ALL (TIMING BELT COVER & OIL PAN)) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- V6-24 4WD/S(HATCHBACK),5FM/T LHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- 24 /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01500
|
01500
MD185387
OIL PAN,ENG
|
MD185387 |
— | ||
|
01512
|
01512
MD050316 PLUG, ENG OIL PAN... |
MD050316 |
from US $5.30 |
||
|
01521
|
01521
MD050317 GASKET, ENG OIL PAN DRAIN PLUGD=14 |
MD050317 |
from US $1.23 |
||
|
01597
|
01597
MD097012 BOLT, ENG OIL PANFlange,6x10 |
MD097012 |
from US $1.01 |
||
|
02007Q
|
02007Q
MD192109 COVER, TIMING BELT |
MD192109 |
US $95.08 |
||
|
02007VP
|
02007VP
MD192110
COVER, TIMING BELT
|
MD192110 |
— | ||
| replacement | |||||
|
02007VP
|
02007VP
MD195421
COVER, TIMING BELT
|
MD195421 |
— | ||
|
02007VQ
|
02007VQ
MD188084 COVER, TIMING BELT |
MD188084 |
US $83.45 |
||
|
02994PF
|
02994PF
MD154192
BOLT, TIMING BELT COVER
|
MD154192 |
— | ||
|
02994PG
|
02994PG
MF140213 BOLT, ENG FR CASEFlange,6x35 |
MF140213 |
US $2.19 |
||
|
02994PK
|
02994PK
MF140214 BOLT, TIMING BELT COVERFlange,6x38 |
MF140214 |
US $3.28 |
||
|
02994Q
|
02994Q
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
02999VB
|
02999VB
MD140090 GASKET, TIMING BELT COVER |
MD140090 |
US $7.25 |
||
|
02999VC
|
02999VC
MD186411 GASKET, TIMING BELT COVER |
MD186411 |
US $6.16 |
||
|
02999VD
|
02999VD
MD191621 GASKET, TIMING BELT COVER |
MD191621 |
US $18.50 |
||
|
02999VG
|
02999VG
MD186419 GASKET, TIMING BELT COVER |
MD186419 |
US $5.62 |
||
|
02999VH
|
02999VH
MD186420
GASKET, TIMING BELT COVER
|
MD186420 |
— | ||
|
02999VV
|
02999VV
MD186421 GASKET, TIMING BELT COVER |
MD186421 |
US $4.74 |
||
|
02999VW
|
02999VW
MD186422 GASKET, TIMING BELT COVER |
MD186422 |
US $3.26 |
||
|
02999VZ
|
02999VZ
MD186423 GASKET, TIMING BELT COVER |
MD186423 |
US $4.74 |
||
|
04124
|
04124
MD185389
STRAINER,ENG OIL PAN
|
MD185389 |
— | ||
|
04161
|
04161
MD183239 GASKET, OIL STRAINER |
MD183239 |
from US $2.09 |
||
|
04178
|
04178
MS241071 BOLT, OIL STRAINERWasher assembled,8x20 |
MS241071 |
from US $1.21 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
