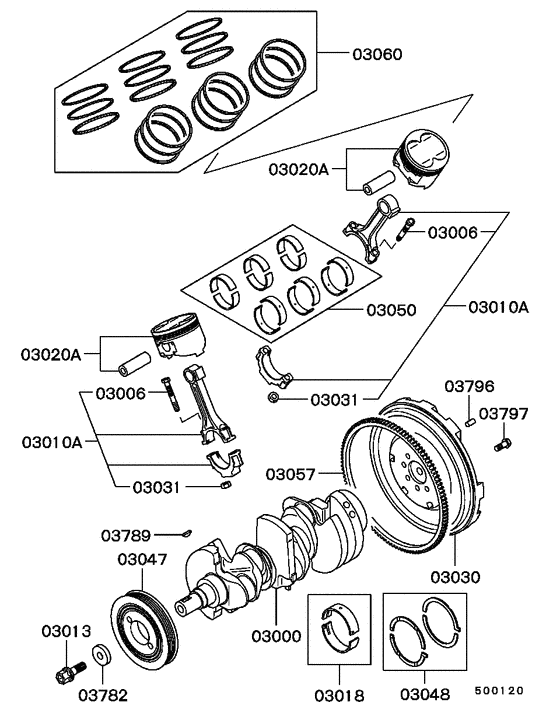

Piston & crankshaft (ALL) Diagram Mitsubishi GALANT HATCHBACK
- Year
- 1992 - 1996
- Sales region
- EUR
- Note
- V6-24 4WD/S(HATCHBACK),5FM/T LHD
- drive
- 4WD/4WS/4WD
- transmission
- 5FM/T
- grade
- 24 /S
- body
- HATCHBACK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD184051 CRANKSHAFT |
MD184051 |
US $2,044.80 |
||
|
03000
|
03000
MD318152 CRANKSHAFT |
MD318152 |
US $1,987.20 |
||
|
03006
|
03006
MD096144
BOLT, CONNROD
|
MD096144 |
— | ||
| replacement | |||||
|
03006
|
03006
MN149212 BOLT, CONNROD9x58.5 |
MN149212 |
from US $3.78 |
||
|
03010A
|
03010A
MD131329 CONNECTING ROD ASSY |
MD131329 |
US $222.98 |
||
|
03013
|
03013
MD151793 CENTER BOLT, CRANKSHAFT PULLEY14x49 |
MD151793 |
US $17.76 |
||
| replacement | |||||
|
03013
|
03013
1100A142 CENTER BOLT, CRANKSHAFT PULLEY |
1100A142 |
US $17.10 |
||
|
03018
|
03018
MD197603
BEARING, CRANKSHAFT
|
MD197603 |
— | ||
|
03018
|
03018
MD197604
BEARING, CRANKSHAFT
|
MD197604 |
— | ||
|
03018
|
03018
MD197605
BEARING, CRANKSHAFT
|
MD197605 |
— | ||
|
03018
|
03018
MD197606
BEARING, CRANKSHAFT
|
MD197606 |
— | ||
|
03018
|
03018
MD197607
BEARING, CRANKSHAFT
|
MD197607 |
— | ||
|
03020A
|
03020A
MD194747 PISTON & PIN ASSYStd a |
MD194747 |
US $109.52 |
||
|
03020A
|
03020A
MD194748 PISTON & PIN ASSYStd b |
MD194748 |
US $155.40 |
||
|
03020A
|
03020A
MD194749 PISTON & PIN ASSYStd c |
MD194749 |
US $109.52 |
||
|
03020A
|
03020A
MD197711 PISTON & PIN ASSYO/size 0.25 |
MD197711 |
US $153.92 |
||
|
03020A
|
03020A
MD197712 PISTON & PIN ASSYO/size 0.50 |
MD197712 |
US $155.40 |
||
|
03020A
|
03020A
MD197713 PISTON & PIN ASSYO/size 0.75 |
MD197713 |
US $153.92 |
||
|
03020A
|
03020A
MD197714 PISTON & PIN ASSYO/size 1.00 |
MD197714 |
US $155.40 |
||
|
03030
|
03030
MD159879
FLYWHEEL
|
MD159879 |
— | ||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03047
|
03047
MD177199 PULLEY, CRANKSHAFTRibbed |
MD177199 |
US $484.02 |
||
|
03048
|
03048
MD128659
THRUST BEARING SET, CRANKSHAFT
|
MD128659 |
— | ||
| replacement | |||||
|
03048
|
03048
1052A271 THRUST BEARING SET, CRANKSHAFTPlain |
1052A271 |
from US $15.97 |
||
|
03050
|
03050
MD178485 BEARING SET, CONNRODPlain,std |
MD178485 |
from US $82.68 |
||
|
03057
|
03057
MD030629 RING GEAR, FLYWHEELN=106 |
MD030629 |
US $207.94 |
||
|
03060
|
03060
MD159836 RING SET, PISTONStd |
MD159836 |
US $339.25 |
||
|
03060
|
03060
MD159837 RING SET, PISTONO/size 0.25 |
MD159837 |
US $374.19 |
||
|
03060
|
03060
MD159838 RING SET, PISTONO/size 0.50 |
MD159838 |
US $308.67 |
||
|
03060
|
03060
MD159839 RING SET, PISTONO/size 0.75 |
MD159839 |
US $374.19 |
||
|
03060
|
03060
MD159840 RING SET, PISTONO/size 1.00 |
MD159840 |
US $308.67 |
||
|
03782
|
03782
MD096930
WASHER, CRANKSHAFT PULLEY
|
MD096930 |
— | ||
| replacement | |||||
|
03782
|
03782
MR994412 WASHER, CRANKSHAFT PULLEY14.5 |
MR994412 |
from US $4.97 |
||
|
03789
|
03789
MD008959 KEY, CRANKSHAFT |
MD008959 |
from US $2.03 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.81 |
||
|
03797
|
03797
MD113400 BOLT, A/T DRIVE PLATEFlange,10x25 |
MD113400 |
from US $3.26 |
||
