	Description	OEM Part #	Price
20000	20000 MB870236 PEDAL, CLUTCH	MB870236	US $54.02
20010	20010 MB193884 PAD, BRAKE PEDAL 62x58-40	MB193884	from US $3.26
20014B	20014B MB316867 BUSHING, BRAKE PEDAL 18.3x10	MB316867	from US $2.28
20014E	20014E MB555171 BUSHING, CLUTCH PEDAL 10x8	MB555171	from US $4.11
20014F	20014F MB844608 BUSHING, CLUTCH PEDAL 10x16.5	MB844608	US $6.16
20037B	20037B MB844605 ROD, CLUTCH PEDAL RETURN SPRING	MB844605	—
20037C	20037C MB807045 ROD, CLUTCH PEDAL RETURN SPRING	MB807045	US $18.47
20044	20044 MB807041 SPRING, CLUTCH PEDAL RETURN	MB807041	US $7.52
20045	20045 MB151298 STOPPER, STEERING COLUMN BRACKET	MB151298	from US $2.52
20084B	20084B MF450008 WASHER, ENG MOUNTING Plain,14	MF450008	from US $1.01
20084C	20084C MF451107 WASHER, FUEL FILLER LID LOCKING Wave,14	MF451107	US $3.28
20084E	20084E MB151106 WASHER, CLUTCH M/CYL 10	MB151106	US $2.74
20086	20086 MF522005 SNAP RING, CLUTCH PEDAL 14	MF522005	US $2.22
20087B	20087B MF472052 PIN, FUEL TANK Split,2.5x20	MF472052	US $0.96
20087C	20087C MB844735 PIN, CLUTCH PEDAL Clevis,10x30	MB844735	US $4.79
20092	20092 MF430006 NUT 10	MF430006	from US $1.35
20098C	20098C MS100135 BOLT, CLUTCH PEDAL 10x35	MS100135	US $2.87
53007B	53007B MB316867 BUSHING, BRAKE PEDAL 18.3x10	MB316867	from US $2.28
53010	53010 MB193884 PAD, BRAKE PEDAL 62x58-40	MB193884	from US $3.26
53012	53012 MB870231 PEDAL, BRAKE	MB870231	US $50.32
53034	53034 MB012212 SPRING, BRAKE PEDAL RETURN	MB012212	US $5.88
53034	53034 MB407145 SPRING, BRAKE PEDAL RETURN	MB407145	US $6.81
53035	53035 MB151298 STOPPER, STEERING COLUMN BRACKET	MB151298	from US $2.52
53038	53038 MB151138 SPACER, CLUTCH PEDAL 79.2	MB151138	US $6.43
53084B	53084B MF450406 WASHER Spring,10	MF450406	from US $0.43
53092	53092 MF430006 NUT 10	MF430006	from US $1.35
53098B	53098B MS240125 BOLT, FUEL TANK Washer assembled,8x20	MS240125	from US $1.05
53098C	53098C MB316045 BOLT, CLUTCH PEDAL	MB316045	—
	replacement
53098C	53098C MF104902 BOLT, CLUTCH PEDAL 10x100	MF104902	US $4.65
53305	53305 MB948549 MEMBER, PEDAL SUPPORT	MB948549	US $124.32
66802	66802 MB946522 FOOTREST	MB946522	US $15.54
66899	66899 MS240055 BOLT, RR BUMPER Washer assembled,6x20	MS240055	US $2.07
66899	66899 MS240121 BOLT, CONNROD Washer assembled,6x16	MS240121	from US $1.70
82110	82110 MB435457 SWITCH, STOP LAMP	MB435457	from US $9.52
82110	82110 MB596608 SWITCH, STOP LAMP	MB596608	from US $59.20

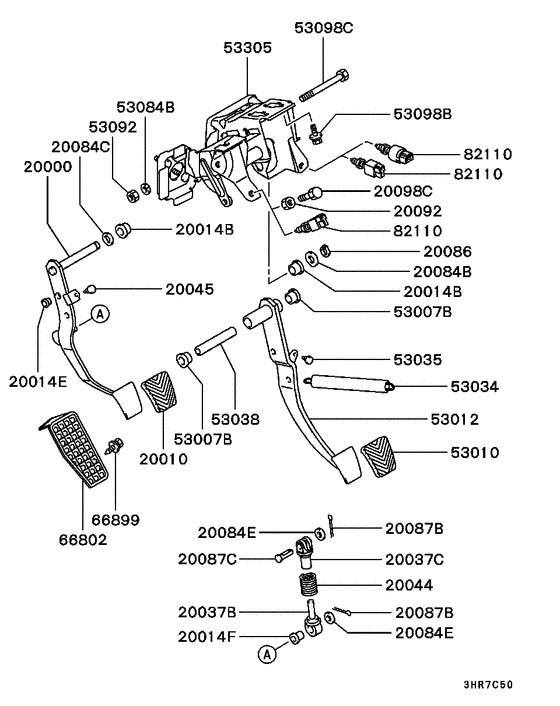

Brake & clutch pedal (RHD) Diagram Mitsubishi GALANT HATCHBACK EUR 1891428-166138

Brake & clutch pedal (RHD) Diagram Mitsubishi GALANT HATCHBACK EUR 1891428-166138
