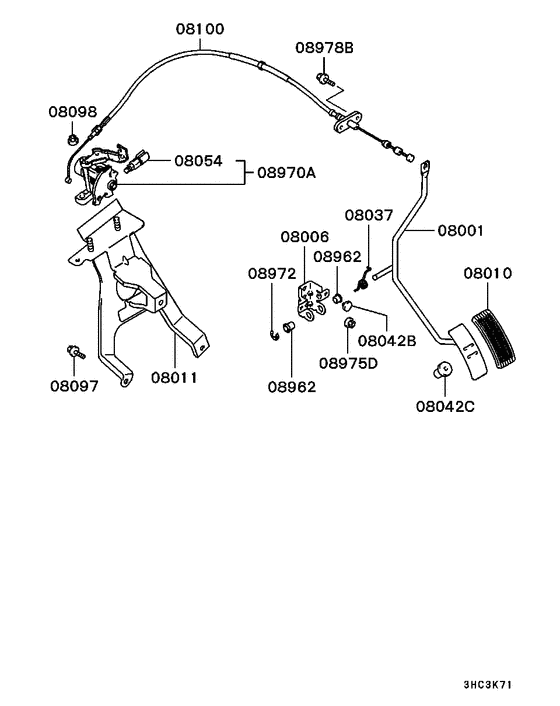

Engine control (RHD) Diagram Mitsubishi GALANT SALOON
- Year
- 1996 - 2000
- Sales region
- EUR
- Note
- GLS,5FM/T RHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08001
|
08001
MR235760 ARM, ACCEL PEDAL |
MR235760 |
US $33.30 |
||
|
08006
|
08006
MR235765 BRACKET, ACCEL PEDAL ARM |
MR235765 |
US $10.51 |
||
|
08010
|
08010
MB181266 PEDAL, ACCEL |
MB181266 |
from US $7.25 |
||
|
08011
|
08011
MD348701
BRACKET,ACCEL SENSOR
|
MD348701 |
— | ||
|
08037
|
08037
MR131793 SPRING, ACCEL PEDAL ARM RETURN |
MR131793 |
US $3.26 |
||
|
08042B
|
08042B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
08042C
|
08042C
MR307424 STOPPER, ACCEL PEDAL ARM |
MR307424 |
US $5.77 |
||
|
08054
|
08054
ME202362 SWITCH, ACCEL SENSOR IDLE |
ME202362 |
US $56.24 |
||
|
08097
|
08097
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $0.88 |
||
|
08098
|
08098
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.66 |
||
|
08100
|
08100
MR316578
CABLE,ACCEL
|
MR316578 |
— | ||
|
08962
|
08962
MB367301 BUSHING, BRAKE PEDAL8x8 |
MB367301 |
US $4.29 |
||
|
08970A
|
08970A
MD332976
SENSOR ASSY,ACCEL
|
MD332976 |
— | ||
|
08972
|
08972
MF522405 SNAP RING, ROCKER COVER7 |
MF522405 |
US $1.48 |
||
|
08975D
|
08975D
MS440503 NUTWasher assembled,8 |
MS440503 |
from US $0.66 |
||
|
08978B
|
08978B
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
US $2.74 |
