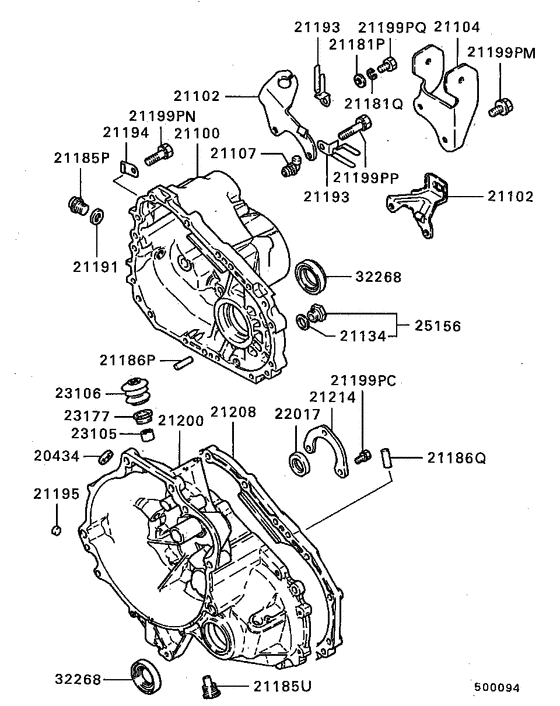

M/t case (-8512.3 (T/M CASE)) Diagram Mitsubishi GALANT SIGMA
- Year
- 1983 - 1984
- Sales region
- Japan
- Note
- LX-TOURING,SUPER SHIFT(-8409)
- grade
- LX-TOURING
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20434
|
20434
MD701721 OIL SEAL, CLUTCH RELEASE FORK SHAFT |
MD701721 |
US $4.14 |
||
|
21100
|
21100
MD714501 CASE, M/T |
MD714501 |
US $433.89 |
||
|
21100
|
21100
MD716729 CASE, M/T |
MD716729 |
US $461.55 |
||
|
21102
|
21102
MD715138 BRACKET, M/T CASE CLUTCH CABLE |
MD715138 |
US $34.78 |
||
|
21102
|
21102
MD715140 BRACKET, M/T CASE CLUTCH CABLE |
MD715140 |
US $27.38 |
||
|
21104
|
21104
MD700921 BRACKET, M/T CASE MOUNTING |
MD700921 |
US $53.28 |
||
|
21107
|
21107
MD706442 BREATHER, M/T CASE |
MD706442 |
US $6.22 |
||
|
21134
|
21134
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.15 |
||
|
21181P
|
21181P
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
21181Q
|
21181Q
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
21185P
|
21185P
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21185U
|
21185U
MD715386 PLUG, M/T CASE22 |
MD715386 |
US $8.58 |
||
|
21186P
|
21186P
MD700199 PIN, M/T CASEDowel,10x35 |
MD700199 |
US $5.92 |
||
|
21186P
|
21186P
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
21191
|
21191
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21193
|
21193
MD714714
CLIP, M/T CASE
|
MD714714 |
— | ||
|
21194
|
21194
MD704763 CLAMP, M/T CASE |
MD704763 |
US $3.11 |
||
|
21195
|
21195
MF665532 CAP, CYLINDER HEAD12 |
MF665532 |
US $2.37 |
||
|
21199PC
|
21199PC
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
21199PM
|
21199PM
MD700971 BOLT, M/T CASEFlange,10x22 |
MD700971 |
US $2.66 |
||
|
21199PN
|
21199PN
MF241288 BOLT, COOLING FANWasher assembled,10x40 |
MF241288 |
US $3.69 |
||
|
21199PN
|
21199PN
MF241291 BOLT, M/T CASEWasher assembled,10x55 |
MF241291 |
US $3.56 |
||
|
21199PP
|
21199PP
MF241289 BOLT, ENG SUPPORT RODWasher assembled,10x45 |
MF241289 |
US $3.83 |
||
|
21199PP
|
21199PP
MF241292 BOLT, ENG SUPPORT RODWasher assembled,10x60 |
MF241292 |
US $3.40 |
||
|
21199PQ
|
21199PQ
MD723985 BOLT, M/T CASEFlange,14x8 |
MD723985 |
US $3.70 |
||
|
21199PQ
|
21199PQ
MF100083 BOLT, ENG MOUNTING10x20 |
MF100083 |
US $2.22 |
||
|
21200
|
21200
MD715261 HOUSING, CLUTCH |
MD715261 |
US $790.61 |
||
|
21208
|
21208
MD714502 ADAPTER, CLUTCH HOUSING TO M/T CASE |
MD714502 |
US $235.32 |
||
|
21214
|
21214
MD706431 RETAINER, CLUTCH HOUSING FR BEARING |
MD706431 |
US $10.06 |
||
|
22017
|
22017
MD701735 OIL SEAL, M/T INPUT SHAFT |
MD701735 |
US $7.84 |
||
|
23105
|
23105
MD712913
BEARING, M/T GEARSHIFT SHAFT
|
MD712913 |
— | ||
| replacement | |||||
|
23105
|
23105
MD747209 BEARING, M/T GEARSHIFT SHAFTNeedle,20 |
MD747209 |
from US $6.40 |
||
|
23106
|
23106
MD713277 BOOT, M/T GEARSHIFT SHAFT |
MD713277 |
US $8.73 |
||
|
23177
|
23177
MD713758
OIL SEAL, M/T GEARSHIFT SHAFT
|
MD713758 |
— | ||
| replacement | |||||
|
23177
|
23177
MD747660 OIL SEAL, M/T GEARSHIFT SHAFT |
MD747660 |
from US $3.71 |
||
|
25156
|
25156
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
