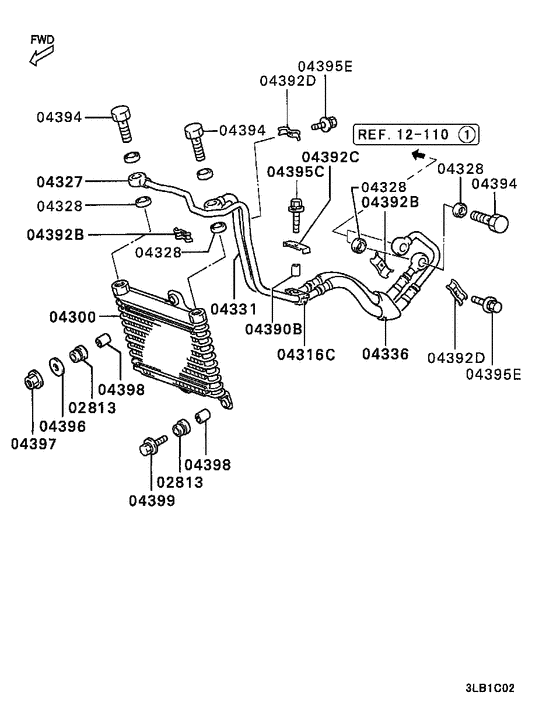

Oil cooler tube (ALL) Diagram Mitsubishi GALANT SIGMA
- Year
- 1986 - 1987
- Sales region
- Japan
- Note
- SUPER-SALOON,4FA/T(8601-)
- transmission
- 4FA/T
- grade
- SUPER-SALOON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02813
|
02813
MB356104 CUSHION, ENG MOUNTING |
MB356104 |
from US $1.68 |
||
|
04300
|
04300
MB033408 OIL COOLER, ENG |
MB033408 |
US $390.21 |
||
|
04300
|
04300
MB033580 OIL COOLER, ENG |
MB033580 |
US $428.06 |
||
|
04316C
|
04316C
MB356089
CUSHION, ENG OIL COOLER
|
MB356089 |
— | ||
|
04327
|
04327
MB033410 HOSE, ENG OIL COOLER FEED |
MB033410 |
US $104.34 |
||
|
04327
|
04327
MB033570 HOSE, ENG OIL COOLER FEED |
MB033570 |
US $158.36 |
||
|
04327
|
04327
MB033643 HOSE, ENG OIL COOLER FEED |
MB033643 |
US $183.52 |
||
|
04327
|
04327
MB033644 HOSE, ENG OIL COOLER FEED |
MB033644 |
US $183.52 |
||
|
04327
|
04327
MB033684 HOSE, ENG OIL COOLER FEED |
MB033684 |
US $226.44 |
||
|
04327
|
04327
MB033685 HOSE, ENG OIL COOLER FEED |
MB033685 |
US $226.44 |
||
|
04328
|
04328
MB033054 GASKET, ENG OIL COOLER TUBE |
MB033054 |
from US $1.85 |
||
|
04331
|
04331
MB033415 HOSE, ENG OIL COOLER RETURN |
MB033415 |
US $104.34 |
||
|
04331
|
04331
MB033571 HOSE, ENG OIL COOLER RETURN |
MB033571 |
US $162.80 |
||
|
04331
|
04331
MB033645 HOSE, ENG OIL COOLER RETURN |
MB033645 |
US $174.64 |
||
|
04331
|
04331
MB033646 HOSE, ENG OIL COOLER RETURN |
MB033646 |
US $174.64 |
||
|
04331
|
04331
MB033686 HOSE, ENG OIL COOLER RETURN |
MB033686 |
US $213.12 |
||
|
04331
|
04331
MB033687 HOSE, ENG OIL COOLER RETURN |
MB033687 |
US $192.40 |
||
|
04336
|
04336
MB033449 PAD, ENG OIL COOLER HOSE DISTANCE |
MB033449 |
US $6.22 |
||
|
04390B
|
04390B
MB356090 COLLAR, ENG OIL COOLER LINE |
MB356090 |
US $5.62 |
||
|
04392B
|
04392B
MB033043 CLAMP, ENG OIL COOLER LINE10 |
MB033043 |
from US $1.66 |
||
|
04392C
|
04392C
MB356091 CLAMP, ENG OIL COOLER LINE |
MB356091 |
US $5.18 |
||
|
04392D
|
04392D
MB033042 CLAMP, ENG OIL COOLER LINE10 |
MB033042 |
US $3.42 |
||
|
04394
|
04394
MB033025 EYEBOLT, ENG OIL COOLER LINE16x33 |
MB033025 |
from US $5.77 |
||
|
04395C
|
04395C
MF247230 BOLT, ENG OIL COOLER LINEWasher assembled,6x30 |
MF247230 |
US $2.74 |
||
|
04395E
|
04395E
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
04396
|
04396
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
04397
|
04397
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
04398
|
04398
MB356105 COLLAR, ENG OIL COOLER LINE |
MB356105 |
from US $1.42 |
||
|
04399
|
04399
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
04399
|
04399
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
04399
|
04399
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.84 |
||
|
