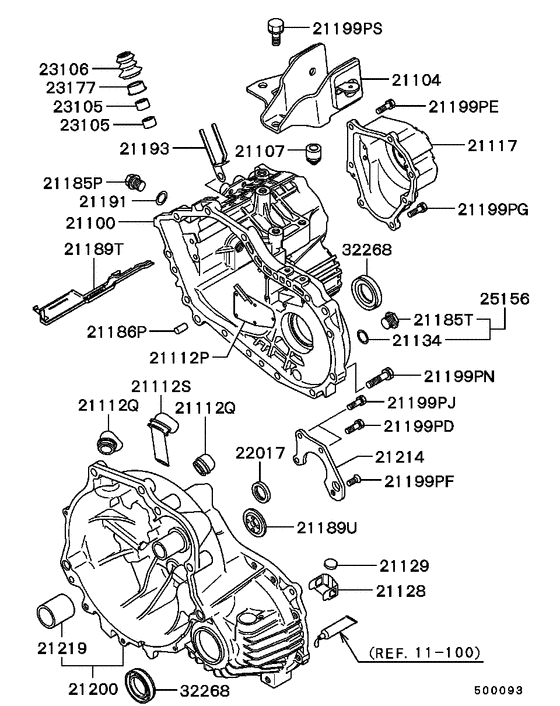

M/t case (8810.1- 5-SPEED (T/M CASE)) Diagram Mitsubishi GALANT SIGMA
- Year
- 1984 - 1985
- Sales region
- Japan
- Note
- SUPER EXCEED(A/C),5FM/T
- transmission
- 5FM/T
- grade
- SUPER EXCEED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21100
|
21100
MD719926 CASE, M/T |
MD719926 |
US $461.55 |
||
|
21104
|
21104
MD719580 BRACKET, M/T CASE MOUNTING |
MD719580 |
US $28.86 |
||
|
21107
|
21107
MD700945
BREATHER, M/T CASE
|
MD700945 |
— | ||
| replacement | |||||
|
21107
|
21107
MD727784 BREATHER, M/T CASE |
MD727784 |
from US $14.36 |
||
|
21112P
|
21112P
MD715817 COVER, M/T CASE BREATHER HOLE |
MD715817 |
US $15.54 |
||
|
21134
|
21134
MB001294 GASKET, DRAIN PLUGD=18.2 |
MB001294 |
from US $1.15 |
||
|
21185P
|
21185P
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21186P
|
21186P
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
21191
|
21191
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21193
|
21193
MD714714
CLIP, M/T CASE
|
MD714714 |
— | ||
|
21199PD
|
21199PD
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
21199PD
|
21199PD
MS100005 BOLT, IGNITION COIL MOUNTINGCross recessed head,8x16 |
MS100005 |
US $2.37 |
||
|
21199PE
|
21199PE
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
21199PF
|
21199PF
MD704449
BOLT, M/T CASE
|
MD704449 |
— | ||
| replacement | |||||
|
21199PF
|
21199PF
32152W000P BOLT, M/T CASE |
32152W000P |
from US $2.69 |
||
|
21199PG
|
21199PG
MF241259 BOLT, CRANKCASEWasher assembled,8x35 |
MF241259 |
from US $0.90 |
||
|
21199PJ
|
21199PJ
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
21199PN
|
21199PN
MF241288 BOLT, COOLING FANWasher assembled,10x40 |
MF241288 |
US $3.69 |
||
|
21199PN
|
21199PN
MF241291 BOLT, M/T CASEWasher assembled,10x55 |
MF241291 |
US $3.56 |
||
|
21199PS
|
21199PS
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
21200
|
21200
MD717130 HOUSING, CLUTCH |
MD717130 |
US $792.06 |
||
|
22017
|
22017
MD050608
OIL SEAL, BALANCER SHAFT, FR RH
|
MD050608 |
— | ||
| replacement | |||||
|
22017
|
22017
MD343565 OIL SEAL, BALANCER SHAFT, FR LH |
MD343565 |
from US $10.55 |
||
|
22017
|
22017
MD701735 OIL SEAL, M/T INPUT SHAFT |
MD701735 |
US $7.84 |
||
|
23105
|
23105
MD712913
BEARING, M/T GEARSHIFT SHAFT
|
MD712913 |
— | ||
| replacement | |||||
|
23105
|
23105
MD747209 BEARING, M/T GEARSHIFT SHAFTNeedle,20 |
MD747209 |
from US $6.40 |
||
|
23106
|
23106
MD713277 BOOT, M/T GEARSHIFT SHAFT |
MD713277 |
US $8.73 |
||
|
23177
|
23177
MD713758
OIL SEAL, M/T GEARSHIFT SHAFT
|
MD713758 |
— | ||
| replacement | |||||
|
23177
|
23177
MD747660 OIL SEAL, M/T GEARSHIFT SHAFT |
MD747660 |
from US $3.71 |
||
|
25156
|
25156
MB001265 PLUG KIT, RR AXLE HOUSING |
MB001265 |
from US $4.49 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
