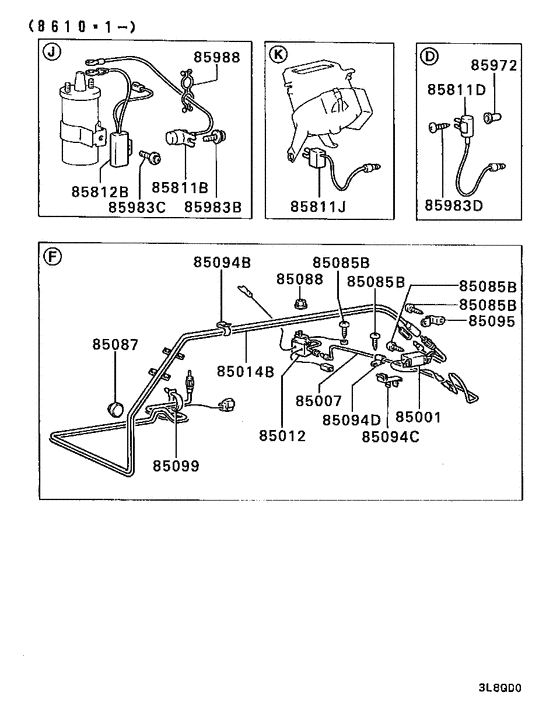

Antenna & condenser (ANTENNA,ETC.) Diagram Mitsubishi GALANT SIGMA
- Year
- 1986 - 1990
- Sales region
- Japan
- Note
- PATROL-CAR
- grade
- PATROL-CAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85001
|
85001
MB306540 AMPLIFIER, GLASS ANTENNA |
MB306540 |
US $117.66 |
||
|
85001
|
85001
MB381906 AMPLIFIER, GLASS ANTENNA |
MB381906 |
US $159.84 |
||
|
85007
|
85007
MB306543 CABLE, GLASS ANTENNA CHOKE COIL |
MB306543 |
US $19.24 |
||
|
85012
|
85012
MB306542 COIL, GLASS ANTENNA CHOKE |
MB306542 |
US $99.16 |
||
|
85014B
|
85014B
MB363859 FEEDER, ANTENNA |
MB363859 |
US $96.94 |
||
|
85085B
|
85085B
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
85087
|
85087
MS660185 PLUG, M/T CLUTCH CONTROL EQUIPRubber,30 |
MS660185 |
US $3.11 |
||
|
85087
|
85087
MU670025 PLUG, BODY30 |
MU670025 |
from US $2.11 |
||
|
85088
|
85088
MS440133 NUT, FUEL TANKFlange,6 |
MS440133 |
from US $1.11 |
||
|
85094B
|
85094B
MB306544 CLIP, ANTENNA5 |
MB306544 |
US $4.14 |
||
|
85094C
|
85094C
MB306553 CLIP, ANTENNA |
MB306553 |
US $3.55 |
||
|
85094D
|
85094D
MF477022 CLIP, FUEL FILLER LID LOCKINGD=6 |
MF477022 |
US $1.64 |
||
|
85095
|
85095
MB306545 CLAMP, ANTENNA |
MB306545 |
US $3.55 |
||
|
85099
|
85099
MS470087 BAND, FUEL TANKL=122 |
MS470087 |
US $0.82 |
||
|
85811B
|
85811B
MB381887 CONDENSER, NOISETerminal(round) type,450 |
MB381887 |
US $15.54 |
||
|
85811D
|
85811D
MB354303 CONDENSER, NOISETerminal type,100 |
MB354303 |
US $17.02 |
||
|
85811J
|
85811J
MB328349 CONDENSER, NOISE |
MB328349 |
US $10.95 |
||
|
85812B
|
85812B
MB398633 FILTER, NOISE |
MB398633 |
US $40.70 |
||
|
85972
|
85972
MB184235 CAP, ABS CONTROL EQUIP |
MB184235 |
US $2.37 |
||
|
85983B
|
85983B
MF350743 SCREW, ENG GOVERNORWasher assembled,4x8 |
MF350743 |
US $2.60 |
||
|
85983B
|
85983B
MF453075 SCREW, WINDSHIELD PANELTapping,4x8 |
MF453075 |
from US $1.77 |
||
|
85983B
|
85983B
MS200329 SCREW, ENG CONTROL EQUIPMachine flange,5x8 |
MS200329 |
from US $2.22 |
||
|
85983C
|
85983C
MF201788 SCREW, GLOVEBOXMachine,5x12 |
MF201788 |
US $2.07 |
||
|
85983C
|
85983C
MS350133 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x12 |
MS350133 |
US $2.52 |
||
|
85983D
|
85983D
MF351008 SCREW, FUEL TANKWasher assembled,5x12 |
MF351008 |
from US $0.98 |
||
|
85983D
|
85983D
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
85988
|
85988
MS470365
CLIP, ACCEL CONTROL EQUIP
|
MS470365 |
— |
