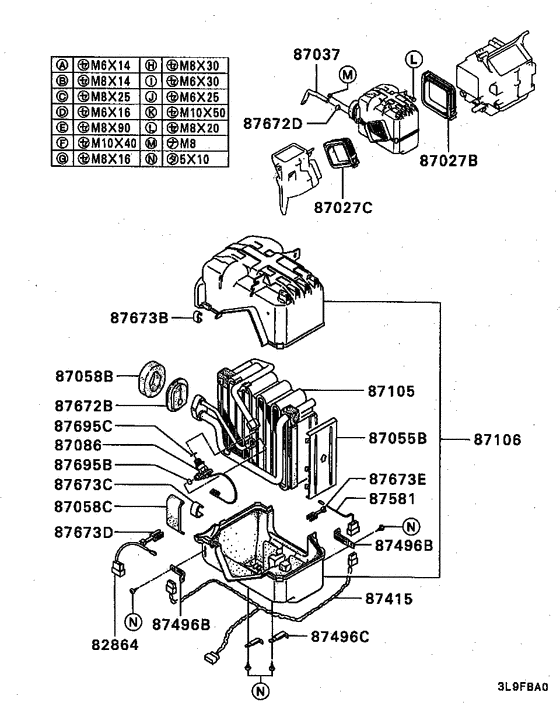

A/c unit(auto,full:a) Diagram Mitsubishi GALANT SIGMA
- Year
- 1986 - 1990
- Sales region
- Japan
- Note
- EXCEED EXTRA,4FA/T
- transmission
- 4FA/T
- grade
- EXCEED EXTRA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82864
|
82864
MB630182
SENSOR, A/C AIR INLET
|
MB630182 |
— | ||
|
87027B
|
87027B
MB199638 DUCT, A/C JOINT |
MB199638 |
US $48.84 |
||
|
87027C
|
87027C
MB199639
DUCT, A/C JOINT
|
MB199639 |
— | ||
|
87037
|
87037
MB332557
HOSE, A/C EVAPORATOR DRAIN
|
MB332557 |
— | ||
|
87055B
|
87055B
MB630636
PLATE, A/C
|
MB630636 |
— | ||
|
87058B
|
87058B
MB276423
INSULATOR, A/C
|
MB276423 |
— | ||
|
87058C
|
87058C
MB556393
INSULATOR, A/C
|
MB556393 |
— | ||
|
87086
|
87086
MB276281
VALVE, A/C EXPANSION
|
MB276281 |
— | ||
|
87105
|
87105
MB630751
EVAPORATOR, A/C
|
MB630751 |
— | ||
|
87106
|
87106
MB276560
CASE, A/C
|
MB276560 |
— | ||
|
87415
|
87415
MB630752
HARNESS, A/C CONTROL
|
MB630752 |
— | ||
|
87496B
|
87496B
MB630589
CLAMP, A/C
|
MB630589 |
— | ||
|
87496C
|
87496C
MB630588
CLAMP, A/C
|
MB630588 |
— | ||
|
87581
|
87581
MB276657
SENSOR UNIT, A/C TEMPERATURE
|
MB276657 |
— | ||
|
87672B
|
87672B
MB276422
GROMMET, A/C
|
MB276422 |
— | ||
|
87672D
|
87672D
MB380030
GROMMET, HEATER
|
MB380030 |
— | ||
|
87673B
|
87673B
MB081308
CLIP, RR HEATER
|
MB081308 |
— | ||
|
87673C
|
87673C
MB630471
CLIP, RR A/C
|
MB630471 |
— | ||
|
87673D
|
87673D
MB630504
CLIP, A/C
|
MB630504 |
— | ||
|
87673E
|
87673E
MB630472
CLIP, A/C
|
MB630472 |
— | ||
|
87695B
|
87695B
MB276213 O-RING, A/C PIPING8 |
MB276213 |
from US $1.23 |
||
|
87695C
|
87695C
MB276214 O-RING, A/C PIPING1/2; |
MB276214 |
US $6.51 |
