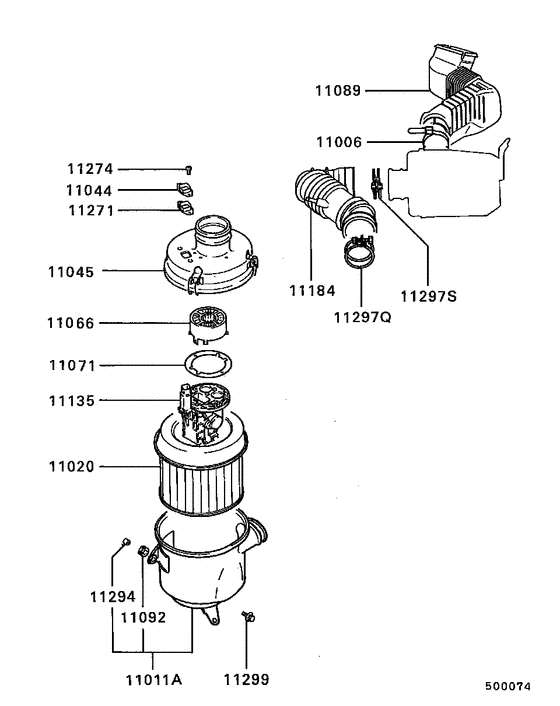

Air cleaner Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1989
- Sales region
- MMNA
- Note
- V6 SIGMA,5FM/T FED
- transmission
- 5FM/T
- grade
- SIGMA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11006
|
11006
MD107115 BAND, AIR CLEANER320 |
MD107115 |
US $4.92 |
||
|
11011A
|
11011A
MD620346
BODY ASSY,AIR CLEANER
|
MD620346 |
— | ||
|
11020
|
11020
MD603932
ELEMENT, AIR CLEANER
|
MD603932 |
— | ||
| replacement | |||||
|
11020
|
11020
MR571477 ELEMENT, AIR CLEANER |
MR571477 |
US $73.19 |
||
|
11044
|
11044
MD620005
COVER, AIR CLEANER FLOW SENSOR CONNECTOR
|
MD620005 |
— | ||
|
11045
|
11045
MD620182
COVER,AIR CLEANER
|
MD620182 |
— | ||
|
11066
|
11066
MD620090 FILTER, AIR CLEANER NOISE REDUCTION |
MD620090 |
US $79.18 |
||
|
11071
|
11071
MD620340 GASKET, AIR CLEANER AIR FLOW SENSOR |
MD620340 |
US $10.21 |
||
|
11089
|
11089
MD107949 DUCT, AIR CLEANER INTAKE |
MD107949 |
US $45.88 |
||
|
11092
|
11092
MD040886 INSULATOR, AIR CLEANER SUPPORT |
MD040886 |
US $3.83 |
||
|
11135
|
11135
MD118127
SENSOR, AIR CLEANER AIR FLOW
|
MD118127 |
— | ||
|
11184
|
11184
MD128247 DUCT, AIR CLEANER TO THROTTLE BODY |
MD128247 |
US $276.76 |
||
|
11184
|
11184
MD128248
DUCT,AIR CLEANER TO THROTTLE BODY
|
MD128248 |
— | ||
|
11271
|
11271
MD620003 GROMMET, AIR CLEANER |
MD620003 |
US $7.52 |
||
|
11274
|
11274
MF351284
SCREW, AIR CLEANER INR
|
MF351284 |
— | ||
|
11294
|
11294
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11297Q
|
11297Q
MD122530
CLAMP, AIR CLEANER
|
MD122530 |
— | ||
|
11297S
|
11297S
MD124343
CLAMP, AIR CLEANER
|
MD124343 |
— | ||
|
11299
|
11299
MD041968 BOLT, AIR CLEANERWasher assembled,6x25 |
MD041968 |
US $3.97 |
||
