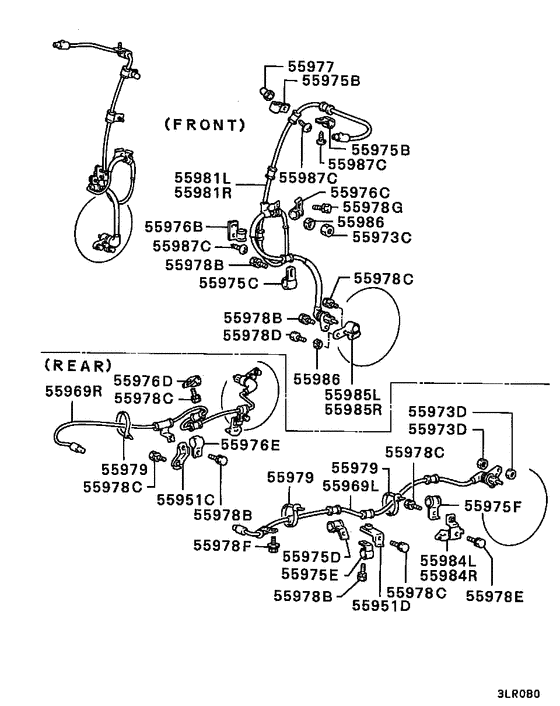

Anti-skid brake sensor Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1989
- Sales region
- MMNA
- Note
- V6 SIGMA,5FM/T FED
- transmission
- 5FM/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55951C
|
55951C
MB366498 BRACKET, ABS SENSOR |
MB366498 |
US $59.94 |
||
|
55951D
|
55951D
MB366575 BRACKET, ABS SENSOR |
MB366575 |
US $51.06 |
||
|
55969L
|
55969L
MB534335 SENSOR, RR ABS, LH |
MB534335 |
US $567.84 |
||
|
55969R
|
55969R
MB534336 SENSOR, RR ABS, RH |
MB534336 |
US $567.84 |
||
|
55973C
|
55973C
MF430725 NUT, CYLINDER HEADJam,8 |
MF430725 |
from US $0.59 |
||
|
55973D
|
55973D
MF430724 NUTJam,6 |
MF430724 |
from US $0.86 |
||
|
55975B
|
55975B
MA275755 CLIP, ABS CONTROL EQUIPD=10 |
MA275755 |
US $2.96 |
||
|
55975C
|
55975C
MB004984 CLIP, PARKING BRAKE CABLE9.5 |
MB004984 |
US $4.79 |
||
|
55975D
|
55975D
MB366576 CLIP, ABS CONTROL EQUIP10 |
MB366576 |
US $16.28 |
||
|
55975E
|
55975E
MB285887 CLIP, ACCEL CONTROL EQUIPD=9 |
MB285887 |
US $7.70 |
||
|
55975F
|
55975F
MB256256 CLIP, ABS CONTROL EQUIP12 |
MB256256 |
US $5.18 |
||
|
55976B
|
55976B
MB366497
CLAMP, ABS CONTROL EQUIP
|
MB366497 |
— | ||
|
55976B
|
55976B
MB407572
CLAMP, ABS CONTROL EQUIP
|
MB407572 |
— | ||
|
55976C
|
55976C
MB366496 CLAMP, ABS CONTROL EQUIP |
MB366496 |
US $16.28 |
||
|
55976D
|
55976D
MB140298 CLAMP, PARKING BRAKE CABLE |
MB140298 |
US $4.44 |
||
|
55976E
|
55976E
MB004800 CLAMP, PARKING BRAKE CABLE |
MB004800 |
US $3.55 |
||
|
55977
|
55977
MB184235 CAP, ABS CONTROL EQUIP |
MB184235 |
US $2.37 |
||
|
55978B
|
55978B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
55978C
|
55978C
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
55978D
|
55978D
MB151331 BOLT, FR BRAKE8x18.5 |
MB151331 |
US $3.55 |
||
|
55978E
|
55978E
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.33 |
||
|
55978F
|
55978F
MF244824 BOLTWasher assembled,6x16 |
MF244824 |
from US $0.82 |
||
|
55978G
|
55978G
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
55979
|
55979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
55981L
|
55981L
MB366905 SENSOR, FR ABS, LH |
MB366905 |
US $567.84 |
||
|
55981R
|
55981R
MB366906 SENSOR, FR ABS, RH |
MB366906 |
US $567.84 |
||
|
55984L
|
55984L
MB366568 BRACKET, RR ABS SENSOR, LH |
MB366568 |
US $82.88 |
||
|
55984R
|
55984R
MB366569 BRACKET, RR ABS SENSOR, RH |
MB366569 |
US $82.88 |
||
|
55985L
|
55985L
MB366420 BRACKET, FR ABS SENSOR POINT, LH |
MB366420 |
US $102.12 |
||
|
55985R
|
55985R
MB366421 BRACKET, FR ABS SENSOR POINT, RH |
MB366421 |
US $102.12 |
||
|
55986
|
55986
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
55987C
|
55987C
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.18 |
||
|
55987C
|
55987C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
