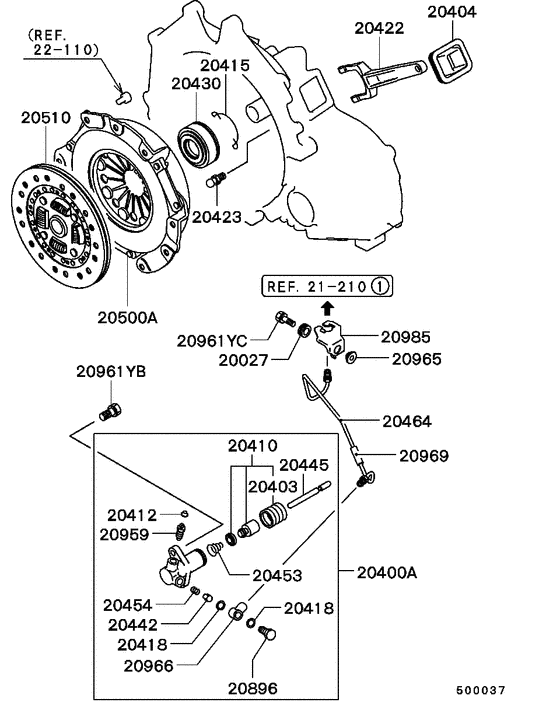

Clutch & clutch release Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1989
- Sales region
- MMNA
- Note
- V6 SIGMA,5FM/T FED
- transmission
- 5FM/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20027
|
20027
MD724003 INSULATOR, CLUTCH FLUID TUBE BRACKET |
MD724003 |
US $5.06 |
||
|
20400A
|
20400A
MD728992 Cylinder Assy, Clutch Release |
MD728992 |
US $125.06 |
||
|
20403
|
20403
MD603464 BOOT, CLUTCH RELEASE CYLINDER |
MD603464 |
US $7.25 |
||
|
20404
|
20404
MD718077 BOOT, CLUTCH RELEASE FORK |
MD718077 |
from US $10.24 |
||
|
20410
|
20410
MD997786
CYLINDER KIT, CLUTCH RELEASE
|
MD997786 |
— | ||
| replacement | |||||
|
20410
|
20410
MD979428 CYLINDER KIT, CLUTCH RELEASE |
MD979428 |
from US $11.72 |
||
|
20412
|
20412
MD701140 CAP, CLUTCH RELEASE CYLINDER BLEEDER SCREW |
MD701140 |
US $2.74 |
||
|
20415
|
20415
MD706185 CLIP, CLUTCH RELEASE BEARING RETURN |
MD706185 |
from US $1.62 |
||
|
20418
|
20418
MD603695
GASKET, CLUTCH RELEASE CYLINDER
|
MD603695 |
— | ||
| replacement | |||||
|
20418
|
20418
2324A056 GASKET, CLUTCH RELEASE CYLINDER |
2324A056 |
from US $1.79 |
||
|
20422
|
20422
MD721291 FORK, CLUTCH RELEASE |
MD721291 |
US $127.28 |
||
|
20423
|
20423
MD719602 FULCRUM, CLUTCH RELEASE FORK |
MD719602 |
from US $7.98 |
||
|
20430
|
20430
MD706180
BEARING, CLUTCH RELEASE
|
MD706180 |
— | ||
| replacement | |||||
|
20430
|
20430
MD749998 BEARING, CLUTCH RELEASEBall,62.2 |
MD749998 |
from US $26.27 |
||
|
20442
|
20442
MD603469
PLATE, CLUTCH RELEASE CYLINDER VALVE
|
MD603469 |
— | ||
|
20445
|
20445
MD620228 PUSH ROD, CLUTCH RELEASE CYLINDER |
MD620228 |
US $12.28 |
||
|
20453
|
20453
MD603467 SPRING, CLUTCH RELEASE CYLINDER PISTON RETURN |
MD603467 |
US $3.28 |
||
|
20454
|
20454
MD603470
SPRING, CLUTCH RELEASE CYLINDER PLATE VALVE
|
MD603470 |
— | ||
|
20464
|
20464
MD727126
TUBE,CLUTCH RELEASE CYLINDER
|
MD727126 |
— | ||
|
20500A
|
20500A
MD722998 COVER ASSY, CLUTCH |
MD722998 |
US $232.36 |
||
|
20510
|
20510
MD724297 DISC, CLUTCH225 |
MD724297 |
US $173.16 |
||
|
20896
|
20896
MD603696 EYEBOLT, M/T CLUTCH CONTROL EQUIP |
MD603696 |
US $7.25 |
||
|
20959
|
20959
MD704268 PLUG, M/T CLUTCH CONTROL EQUIP |
MD704268 |
US $4.24 |
||
|
20961YB
|
20961YB
MF241256 BOLT, ENG OIL PANWasher assembled,8x28 |
MF241256 |
US $2.74 |
||
|
20961YC
|
20961YC
MF244853 BOLT, ENG RR MOUNTINGWasher assembled,8x25 |
MF244853 |
from US $0.82 |
||
|
20965
|
20965
MD724004 WASHER, M/T CLUTCH CONTROL EQUIP8.4 |
MD724004 |
US $3.56 |
||
|
20966
|
20966
MD603694 UNION, M/T CLUTCH CONTROL EQUIP |
MD603694 |
US $10.66 |
||
|
20969
|
20969
MB238895 PROTECTOR, CLUTCH M/CYL |
MB238895 |
US $2.07 |
||
|
20985
|
20985
MD724394 BRACKET, M/T CLUTCH CONTROL EQUIP |
MD724394 |
US $7.99 |
||
|
20985
|
20985
MD728563
BRACKET, M/T CLUTCH CONTROL EQUIP
|
MD728563 |
— | ||
|
21 210
|
Clutch control
21 210
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
