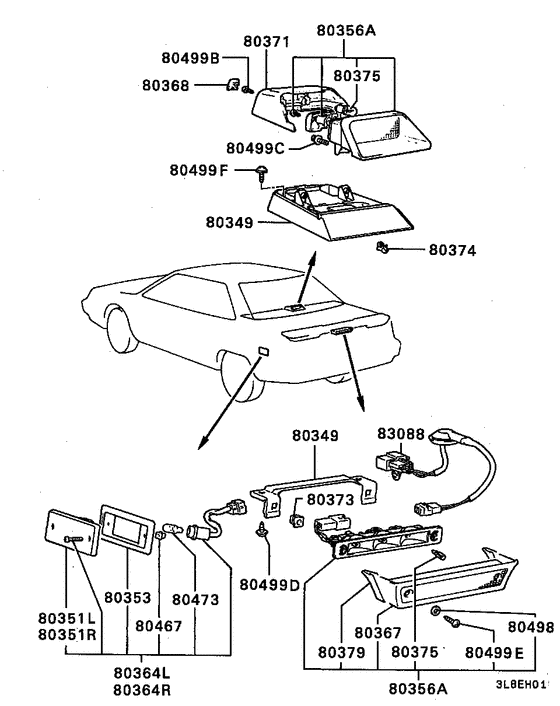

Rear exterior lamp (H.M.STOP LAMP,SIDE MARKER LAMPS) Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1989
- Sales region
- MMNA
- Note
- V6 SIGMA,5FM/T FED
- transmission
- 5FM/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80349
|
80349
MB571162 BRACKET,HIGH MOUNTED STOP LAMP |
MB571162 |
US $50.32 |
||
|
80349
|
80349
MB571166 BRACKET, HIGH MOUNTED STOP LAMP |
MB571166 |
US $23.68 |
||
|
80351L
|
80351L
MB196651
LAMP UNIT,SIDE MARKER,RR LH
|
MB196651 |
— | ||
|
80351R
|
80351R
MB196652
LAMP UNIT,SIDE MARKER,RR RH
|
MB196652 |
— | ||
|
80353
|
80353
MB196650
GASKET,RR SIDE MARKER LAMP
|
MB196650 |
— | ||
|
80356A
|
80356A
MB530436 LAMP ASSY, HIGH MOUNTED STOP12v-18w |
MB530436 |
US $101.38 |
||
|
80356A
|
80356A
MB718217
LAMP ASSY,HIGH MOUNTED STOP
|
MB718217 |
— | ||
|
80356A
|
80356A
MB718218 LAMP ASSY, HIGH MOUNTED STOP12v-5w |
MB718218 |
US $126.54 |
||
|
80356A
|
80356A
MB718219
LAMP ASSY,HIGH MOUNTED STOP
|
MB718219 |
— | ||
|
80356A
|
80356A
MB718220 LAMP ASSY, HIGH MOUNTED STOP12v-5w |
MB718220 |
US $126.54 |
||
|
80356A
|
80356A
MB718221
LAMP ASSY,HIGH MOUNTED STOP
|
MB718221 |
— | ||
|
80364L
|
80364L
MB185839
LAMP KIT,SIDE MARKER,RR LH
|
MB185839 |
— | ||
|
80364R
|
80364R
MB185840
LAMP KIT,SIDE MARKER,RR RH
|
MB185840 |
— | ||
|
80367
|
80367
MB572217
LENS,HIGH MOUNTED STOP LAMP
|
MB572217 |
— | ||
|
80367
|
80367
MB572244
LENS,HIGH MOUNTED STOP LAMP
|
MB572244 |
— | ||
|
80367
|
80367
MB572245 LENS, HIGH MOUNTED STOP LAMP |
MB572245 |
US $28.12 |
||
|
80367
|
80367
MB572246
LENS,HIGH MOUNTED STOP LAMP
|
MB572246 |
— | ||
|
80367
|
80367
MB572247 LENS, HIGH MOUNTED STOP LAMP |
MB572247 |
US $28.12 |
||
|
80368
|
80368
MB718416 COVER, HIGH MOUNTED STOP LAMP BLIND |
MB718416 |
US $2.07 |
||
|
80371
|
80371
MB718418 COVER, HIGH MOUNTED STOP LAMP |
MB718418 |
US $23.68 |
||
|
80373
|
80373
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $1.07 |
||
|
80374
|
80374
MB011808 CLIP, FUEL FILLER LID LOCKING6 |
MB011808 |
US $2.74 |
||
|
80375
|
80375
MS820079 BULB, STOP LAMP12v-18w |
MS820079 |
US $9.52 |
||
| replacement | |||||
|
80375
|
80375
MS820023 BULB,RR LAMP |
MS820023 |
from US $4.51 |
||
|
80375
|
80375
MS820087
BULB, HEADLAMP
|
MS820087 |
— | ||
| replacement | |||||
|
80375
|
80375
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80379
|
80379
MB572226 GASKET, HIGH MOUNTED STOP LAMP |
MB572226 |
US $11.25 |
||
|
80467
|
80467
MB023930 GROMMET, RR END PANEL GARNISHScrew,4 |
MB023930 |
US $3.69 |
||
|
80473
|
80473
MS820085
BULB, GEARSHIFT LINK
|
MS820085 |
— | ||
|
80498
|
80498
MB530929 WASHER, BACKUP LAMP |
MB530929 |
US $2.52 |
||
|
80499B
|
80499B
MS450959 SCREW, FLOOR CONSOLE TRIM PLATETapping,5x12 |
MS450959 |
from US $1.48 |
||
|
80499C
|
80499C
MS350169 SCREW, ENG CONTROL EQUIPWasher assembled,6x16 |
MS350169 |
from US $2.07 |
||
|
80499C
|
80499C
MS350170 SCREW, RR SEATWasher assembled,6x20 |
MS350170 |
US $2.96 |
||
|
80499D
|
80499D
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
80499E
|
80499E
MB605786 SCREW, RR LAMPWasher assembled,4x20 |
MB605786 |
US $3.40 |
||
|
80499F
|
80499F
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
83088
|
83088
MB572227 HARNESS, HIGH MOUNTED STOP LAMP |
MB572227 |
US $24.42 |
||
