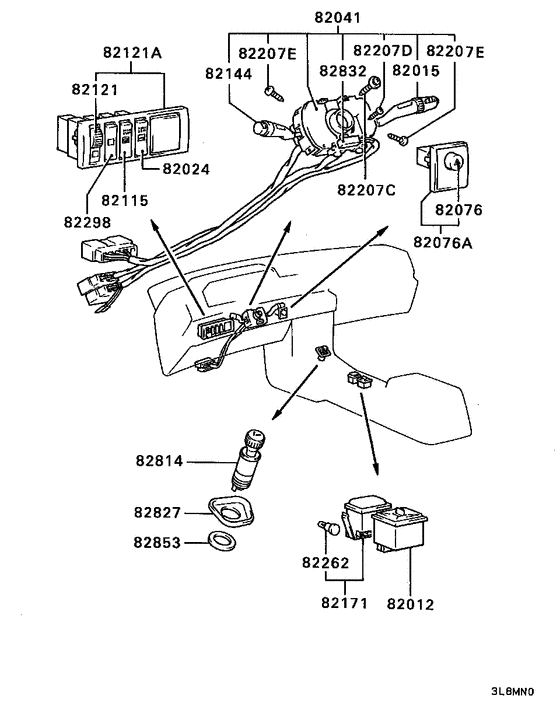

Switch & cigar lighter (COLUMN SW,ETC.('90MODEL-)) Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1989
- Sales region
- MMNA
- Note
- V6 SIGMA,5FM/T FED
- transmission
- 5FM/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82012
|
82012
MB561811 SWITCH, REMOTE CONTROL MIRROR |
MB561811 |
US $80.66 |
||
|
82015
|
82015
MB697237
SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER
|
MB697237 |
— | ||
|
82024
|
82024
MB381865
SWITCH,CRUISE CONTROL
|
MB381865 |
— | ||
|
82024
|
82024
MB603409
SWITCH,CRUISE CONTROL
|
MB603409 |
— | ||
|
82076
|
82076
MB603406
SWITCH,HAZARD WARNING LAMP
|
MB603406 |
— | ||
|
82076A
|
82076A
MB652596
SWITCH ASSY,HAZARD WARNING LAMP
|
MB652596 |
— | ||
|
82115
|
82115
MB381862
SWITCH,RR WINDOW DEFOGGER
|
MB381862 |
— | ||
|
82115
|
82115
MB381863
SWITCH,RR WINDOW DEFOGGER
|
MB381863 |
— | ||
|
82115
|
82115
MB603410
SWITCH,RR WINDOW DEFOGGER
|
MB603410 |
— | ||
|
82121
|
82121
MB571360
SWITCH,RHEOSTAT
|
MB571360 |
— | ||
|
82121A
|
82121A
MB652594
SWITCH ASSY,RHEOSTAT
|
MB652594 |
— | ||
|
82144
|
82144
MB697238
SWITCH,TURN SIGNAL LAMP & LIGHTING
|
MB697238 |
— | ||
|
82171
|
82171
MB603192 SWITCH, POWER & ECONOMY |
MB603192 |
US $56.98 |
||
|
82207C
|
82207C
MS350047 SCREW, STEERING COLUMN COVERWasher assembled,5x25 |
MS350047 |
US $2.07 |
||
|
82207C
|
82207C
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
82207D
|
82207D
MB358841 SCREW, STEERING COLUMN SWITCHTapping,3x8 |
MB358841 |
US $1.33 |
||
|
82207D
|
82207D
MS450923 SCREW, STEERING WHEELTapping,3x8 |
MS450923 |
US $2.07 |
||
|
82207E
|
82207E
MB697239 SCREW, STEERING COLUMN SWITCH |
MB697239 |
US $2.22 |
||
|
82262
|
82262
MB281998 BULB, T/M CONTROL SWITCH |
MB281998 |
US $4 |
||
|
82298
|
82298
MB521528 PLUG, INSTRUMENT PANEL SWITCH |
MB521528 |
US $4.29 |
||
|
82814
|
82814
MB326039 CIGAR LIGHTER, INSTRUMENT PANEL |
MB326039 |
US $59.20 |
||
|
82814
|
82814
MB603357
CIGAR LIGHTER,INSTRUMENT PANEL
|
MB603357 |
— | ||
|
82827
|
82827
MB357497 PROTECTOR, CIGAR LIGHTER |
MB357497 |
US $8.14 |
||
|
82827
|
82827
MB461386 PROTECTOR, CIGAR LIGHTER |
MB461386 |
US $8.14 |
||
|
82827
|
82827
MB603414
PROTECTOR,CIGAR LIGHTER
|
MB603414 |
— | ||
|
82827
|
82827
MB718325
PROTECTOR,CIGAR LIGHTER
|
MB718325 |
— | ||
|
82832
|
82832
MB359910 SENSOR,STEERING ANGULAR VELOCITY |
MB359910 |
US $182.04 |
||
|
82853
|
82853
MT365613 WASHER, CIGAR LIGHTERPlain,25 |
MT365613 |
US $3.56 |
