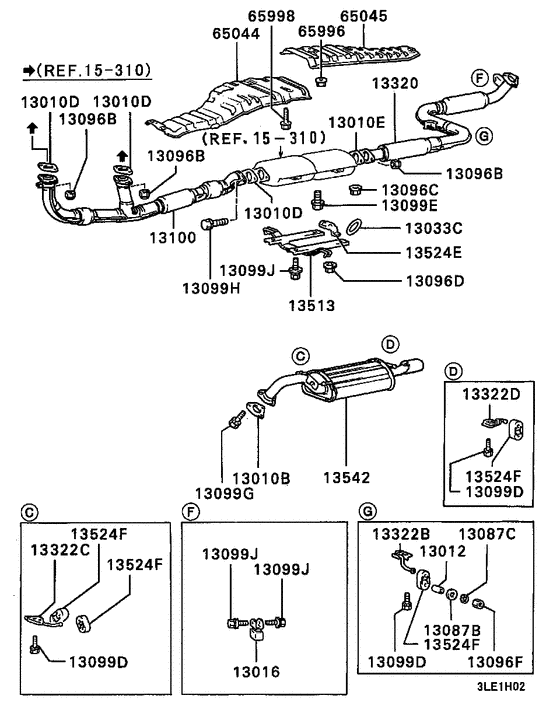

Exhaust pipe & muffler Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1990
- Sales region
- MMNA
- Note
- V6 SIGMA,4FA/T FED
- transmission
- 4FA/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB548652 GASKET, EXHAUST PIPE |
MB548652 |
US $6.81 |
||
|
13010D
|
13010D
MB548846
GASKET,EXHAUST PIPE
|
MB548846 |
— | ||
|
13010E
|
13010E
MB514708 GASKET, EXHAUST PIPE |
MB514708 |
US $5.92 |
||
|
13012
|
13012
MB059938 COLLAR, EXHAUST PIPE |
MB059938 |
US $3.01 |
||
|
13016
|
13016
MB514980 DAMPER, EXHAUST PIPE |
MB514980 |
US $36.26 |
||
|
13033C
|
13033C
MB059522 O-RING, EXHAUST PIPE34 |
MB059522 |
US $14.21 |
||
|
13087B
|
13087B
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
13087C
|
13087C
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096C
|
13096C
MS440133 NUT, FUEL TANKFlange,6 |
MS440133 |
from US $1.11 |
||
|
13096D
|
13096D
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
13096F
|
13096F
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
13099D
|
13099D
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099E
|
13099E
MF140002 BOLT, ROCKER COVERFlange,6x10 |
MF140002 |
US $0.96 |
||
| replacement | |||||
|
13099E
|
13099E
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
13099G
|
13099G
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099H
|
13099H
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099J
|
13099J
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
13100
|
13100
MB548800 PIPE, EXHAUST, FR |
MB548800 |
US $877.97 |
||
|
13320
|
13320
MB548811
PIPE,EXHAUST,CTR
|
MB548811 |
— | ||
|
13322B
|
13322B
MB548848
SUPPORT,EXHAUST PIPE HANGER
|
MB548848 |
— | ||
|
13322C
|
13322C
MB548849
SUPPORT,EXHAUST PIPE HANGER
|
MB548849 |
— | ||
|
13322D
|
13322D
MB548847
SUPPORT,EXHAUST PIPE HANGER
|
MB548847 |
— | ||
|
13513
|
13513
MB548853
BRACKET,EXHAUST PIPE HANGER
|
MB548853 |
— | ||
|
13524E
|
13524E
MB577126 HANGER, EXHAUST MUFFLER |
MB577126 |
US $12.43 |
||
|
13524F
|
13524F
MB059936
HANGER, EXHAUST MUFFLER
|
MB059936 |
— | ||
| replacement | |||||
|
13524F
|
13524F
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13542
|
13542
MB548828
MUFFLER,EXHAUST MAIN
|
MB548828 |
— | ||
|
13542
|
13542
MB810360
MUFFLER,EXHAUST MAIN
|
MB810360 |
— | ||
|
65044
|
65044
MB284852 PROTECTOR, UNDER FLOOR HEAT, FR |
MB284852 |
US $65.86 |
||
|
65045
|
65045
MB406039 PROTECTOR, UNDER FLOOR HEAT, RR |
MB406039 |
US $213.12 |
||
|
65996
|
65996
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
65998
|
65998
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
