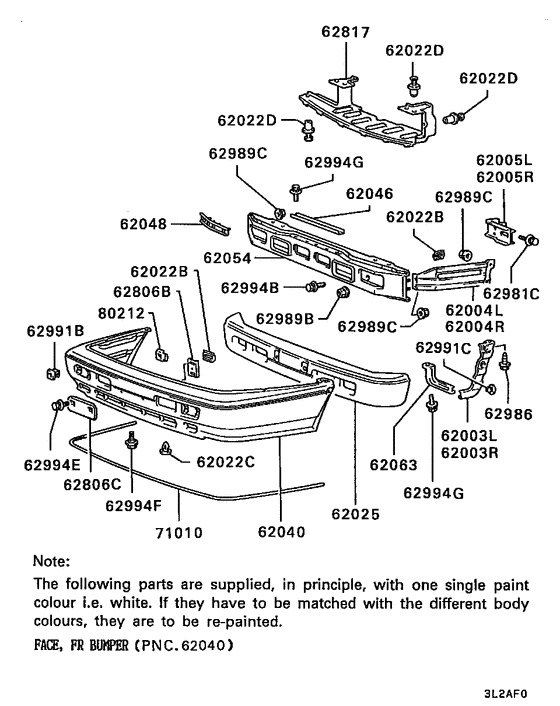

Front bumper & support Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1990
- Sales region
- MMNA
- Note
- V6 SIGMA,4FA/T FED
- transmission
- 4FA/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62003L
|
62003L
MB560117 BRACKET, FR BUMPER SIDE, LWR LH |
MB560117 |
US $34.78 |
||
|
62003R
|
62003R
MB560118 BRACKET, FR BUMPER SIDE, LWR RH |
MB560118 |
US $34.78 |
||
|
62004L
|
62004L
MB560153 BRACKET, FR BUMPER SIDE, UPR LH |
MB560153 |
US $48.84 |
||
|
62004R
|
62004R
MB560154 BRACKET, FR BUMPER SIDE, UPR RH |
MB560154 |
US $48.84 |
||
|
62005L
|
62005L
MB312699 BRACKET, FR BUMPER STAY, LH |
MB312699 |
US $50.32 |
||
|
62005R
|
62005R
MB312700 BRACKET, FR BUMPER STAY, RH |
MB312700 |
US $50.32 |
||
|
62022B
|
62022B
MB325299 CLIP, FR BUMPER0.3 |
MB325299 |
US $4.24 |
||
|
62022C
|
62022C
MB403435 CLIP, FR BUMPER12.8 |
MB403435 |
US $4.59 |
||
|
62022D
|
62022D
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.52 |
||
|
62025
|
62025
MB560100 CORE, FR BUMPER |
MB560100 |
US $381.47 |
||
|
62040
|
62040
MB718437 FACE,FR BUMPER |
MB718437 |
US $1,311.86 |
||
|
62046
|
62046
MB560129 PLATE, FR BUMPER, UPR |
MB560129 |
US $20.72 |
||
|
62048
|
62048
MB560131 PLATE, FR BUMPER SIDE, UPR |
MB560131 |
US $24.42 |
||
|
62054
|
62054
MB560104 REINFORCEMENT, FR BUMPER |
MB560104 |
US $251.60 |
||
|
62063
|
62063
MB271851 STAY, FR BUMPER |
MB271851 |
US $17.02 |
||
|
62063
|
62063
MB271852 STAY, FR BUMPER |
MB271852 |
US $11.99 |
||
|
62806B
|
62806B
MB560127 BRACKET, FR LICENSE PLATE |
MB560127 |
US $10.36 |
||
|
62806C
|
62806C
MB560125
BRACKET,FR LICENSE PLATE
|
MB560125 |
— | ||
|
62817
|
62817
MB560059 PANEL, AIR GUIDE |
MB560059 |
US $116.92 |
||
|
62981C
|
62981C
MS240129 BOLT, FUEL TANKWasher assembled,10x25 |
MS240129 |
US $3.01 |
||
|
62986
|
62986
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62989B
|
62989B
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
62989C
|
62989C
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
62991B
|
62991B
MB249471
GROMMET, FR BUMPER
|
MB249471 |
— | ||
| replacement | |||||
|
62991B
|
62991B
MU480001 GROMMET, FR BUMPERScrew,4 |
MU480001 |
US $4.10 |
||
|
62991C
|
62991C
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
62994B
|
62994B
MS240130 BOLT, FUEL TANKWasher assembled,10x30 |
MS240130 |
US $2.66 |
||
|
62994E
|
62994E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
62994E
|
62994E
MS240179 BOLT, FR BUMPERWasher assembled,6x16 |
MS240179 |
from US $0.88 |
||
|
62994F
|
62994F
MB403510 BOLT, FR BUMPERFlange,6x20 |
MB403510 |
US $2.96 |
||
|
62994G
|
62994G
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
71010
|
71010
MB560123 MOULDING, FR BUMPER2840 |
MB560123 |
US $94.72 |
||
|
80212
|
80212
MB271780 BRACKET, RR TURN SIGNAL LAMP |
MB271780 |
US $6.81 |
||
