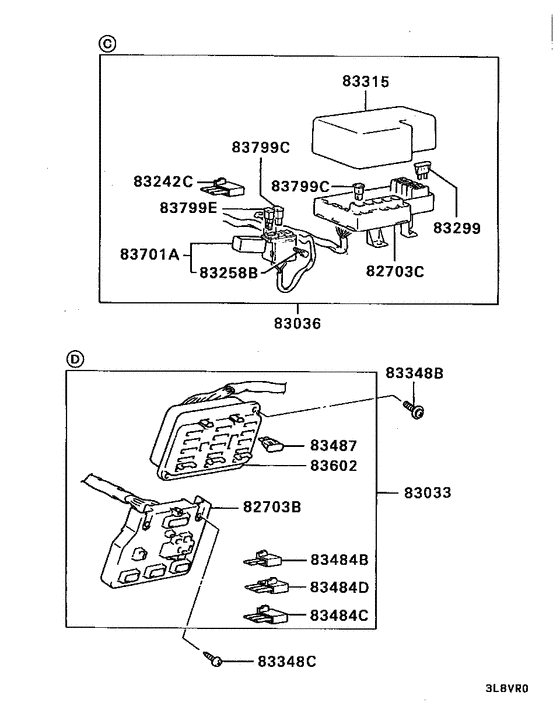

Wiring & attaching parts (HARNESS,CHASSIS & HARNESS BODY) Diagram Mitsubishi GALANT SIGMA
- Year
- 1987 - 1990
- Sales region
- MMNA
- Note
- V6 SIGMA,4FA/T FED
- transmission
- 4FA/T
- grade
- SIGMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703B
|
82703B
MB249370
BOX,RELAY
|
MB249370 |
— | ||
|
82703C
|
82703C
MB306300 BOX, RELAY |
MB306300 |
US $40.70 |
||
|
83033
|
83033
MB571104
HARNESS,BODY MAIN
|
MB571104 |
— | ||
|
83033
|
83033
MB571110
HARNESS,BODY MAIN
|
MB571110 |
— | ||
|
83033
|
83033
MB606374
HARNESS,BODY MAIN
|
MB606374 |
— | ||
|
83033
|
83033
MB606377
HARNESS,BODY MAIN
|
MB606377 |
— | ||
|
83033
|
83033
MB606380
HARNESS,BODY MAIN
|
MB606380 |
— | ||
|
83033
|
83033
MB617463
HARNESS,BODY MAIN
|
MB617463 |
— | ||
|
83033
|
83033
MB617465
HARNESS,BODY MAIN
|
MB617465 |
— | ||
|
83033
|
83033
MB617466
HARNESS,BODY MAIN
|
MB617466 |
— | ||
|
83036
|
83036
MB571054
HARNESS,CHASSIS,FR
|
MB571054 |
— | ||
|
83036
|
83036
MB571057
HARNESS,CHASSIS,FR
|
MB571057 |
— | ||
|
83036
|
83036
MB571062
HARNESS,CHASSIS,FR
|
MB571062 |
— | ||
|
83036
|
83036
MB571064
HARNESS,CHASSIS,FR
|
MB571064 |
— | ||
|
83036
|
83036
MB571065
HARNESS,CHASSIS,FR
|
MB571065 |
— | ||
|
83036
|
83036
MB627005
HARNESS,CHASSIS,FR
|
MB627005 |
— | ||
|
83036
|
83036
MB627007
HARNESS,CHASSIS,FR
|
MB627007 |
— | ||
|
83036
|
83036
MB627008
HARNESS,CHASSIS,FR
|
MB627008 |
— | ||
|
83242C
|
83242C
MU804012 DIODE, INSTRUMENT PANEL WIRING1.5a,3p |
MU804012 |
from US $36.26 |
||
|
83258B
|
83258B
MB530485
BOLT, CHASSIS WIRING
|
MB530485 |
— | ||
|
83299
|
83299
MS810963 FUSE, SWITCHBlade type,5a |
MS810963 |
from US $0.80 |
||
|
83299
|
83299
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
83315
|
83315
MB510311
COVER,FR HARNESS RELAY BOX
|
MB510311 |
— | ||
|
83348B
|
83348B
MS350125 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x16 |
MS350125 |
US $3.15 |
||
|
83348C
|
83348C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
83484B
|
83484B
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83484B
|
83484B
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $6.28 |
||
|
83484C
|
83484C
MU804012 DIODE, INSTRUMENT PANEL WIRING1.5a,3p |
MU804012 |
from US $36.26 |
||
|
83484D
|
83484D
MU804013 DIODE, CHASSIS WIRING1.5a,3p |
MU804013 |
US $27.38 |
||
|
83487
|
83487
MS810965 FUSE, SWITCHBlade type,10a |
MS810965 |
from US $1.31 |
||
|
83487
|
83487
MS810966 FUSE, BODY WIRINGBlade type,15a |
MS810966 |
from US $1.19 |
||
|
83487
|
83487
MS810967 FUSE, RELAYBlade type,20a |
MS810967 |
from US $1.40 |
||
|
83487
|
83487
MS810969 FUSE, CHASSIS WIRINGBlade type,30a |
MS810969 |
from US $1.33 |
||
|
83602
|
83602
MB306550 BOX, FUSE |
MB306550 |
US $70.30 |
||
|
83701A
|
83701A
MB530748 BOX ASSY, FUSIBLE LINK40a |
MB530748 |
US $13.02 |
||
|
83701A
|
83701A
MB541311 BOX ASSY, FUSIBLE LINK30a,20a,80a |
MB541311 |
US $72.52 |
||
|
83799C
|
83799C
MU840000
FUSIBLE LINK
|
MU840000 |
— | ||
|
83799C
|
83799C
MU840001 FUSIBLE LINK30a,conn type |
MU840001 |
US $20.72 |
||
|
83799C
|
83799C
MU840002 FUSIBLE LINK40a,conn type |
MU840002 |
US $20.72 |
||
|
83799C
|
83799C
MU840015 FUSIBLE LINK30a,conn type |
MU840015 |
from US $9.03 |
||
|
83799C
|
83799C
MU840016 FUSIBLE LINK40a,conn type |
MU840016 |
from US $7.98 |
||
|
83799E
|
83799E
MB510610 FUSIBLE LINK30a,screw up type,2sg |
MB510610 |
US $15.54 |
||
|
83799E
|
83799E
MU840004 FUSIBLE LINK80a,screw up type |
MU840004 |
US $16.28 |
||
|
83799E
|
83799E
MU840019 FUSIBLE LINK30a,screw up type |
MU840019 |
US $12.88 |
||
|
83799E
|
83799E
MU840021 FUSIBLE LINK80a,screw up type |
MU840021 |
from US $6.86 |
||
