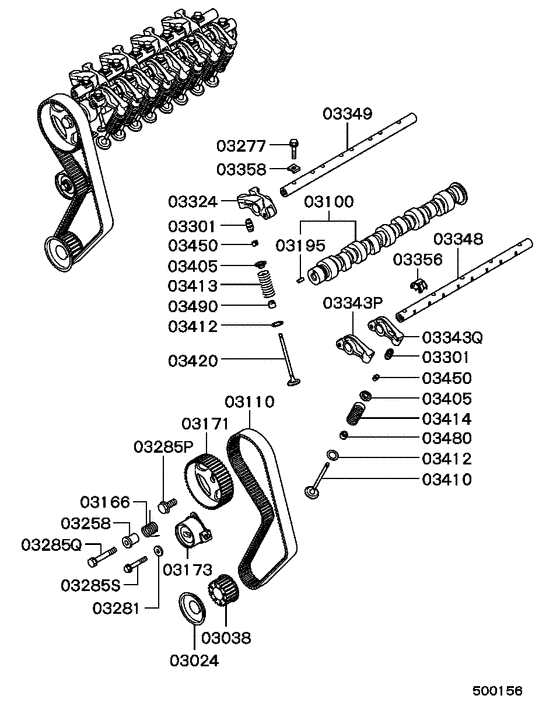

Camshaft & valve (ALL) Diagram Mitsubishi GALANT SIGMA
- Year
- 1995 - 1999
- Sales region
- Japan
- Note
- TAXI-L(LPG),4FM/T
- transmission
- 4FM/T
- grade
- TAXI-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03024
|
03024
MD096940 FLANGE, CRANKSHAFT SPROCKET |
MD096940 |
from US $9.15 |
||
|
03038
|
03038
MD169055
SPROCKET, CRANKSHAFT CAMSHAFT DRIVE
|
MD169055 |
— | ||
| replacement | |||||
|
03038
|
03038
1130A125 SPROCKET, CRANKSHAFT CAMSHAFT DRIVE |
1130A125 |
from US $41.79 |
||
|
03100
|
03100
MD335206 CAMSHAFT |
MD335206 |
US $589.68 |
||
|
03110
|
03110
MD186376 BELT, VALVE TIMING |
MD186376 |
from US $57.97 |
||
| replacement | |||||
|
03110
|
03110
MD369963 BELT, VALVE TIMING |
MD369963 |
US $130.64 |
||
|
03166
|
03166
MD183537 SPRING, TIMING BELT TENSIONER |
MD183537 |
US $4.74 |
||
|
03171
|
03171
MD306794 SPROCKET, CAMSHAFT |
MD306794 |
US $54.02 |
||
|
03173
|
03173
MD315265 TENSIONER, TIMING BELT |
MD315265 |
US $80.66 |
||
|
03195
|
03195
MD158443 PIN, CAMSHAFTDowel,6x14 |
MD158443 |
from US $3.57 |
||
|
03258
|
03258
MD178528 SPACER, TIMING BELT TRAIN28 |
MD178528 |
US $6.81 |
||
|
03277
|
03277
MD162682 BOLT, VALVE GEAR TRAINFlange,8x35 |
MD162682 |
from US $1.56 |
||
|
03281
|
03281
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
03285P
|
03285P
MF140285 BOLT, ENG RR PLATEFlange,12x30 |
MF140285 |
from US $1.01 |
||
|
03285Q
|
03285Q
MF241293 BOLT, T/F CASEWasher assembled,10x65 |
MF241293 |
from US $2.28 |
||
|
03285S
|
03285S
MF140235 BOLT, TIMING GEAR CASEFlange,8x50 |
MF140235 |
from US $1.40 |
||
|
03301
|
03301
MD072177 ADJUSTER, ROCKER ARM LASH |
MD072177 |
US $32.56 |
||
|
03301
|
03301
MD339767 ADJUSTER, ROCKER ARM LASH |
MD339767 |
US $31.82 |
||
|
03324
|
03324
MD319270
ROCKER ARM, EXHAUST VALVE
|
MD319270 |
— | ||
|
03343P
|
03343P
MD319268
ROCKER ARM, INLET VALVE
|
MD319268 |
— | ||
|
03343Q
|
03343Q
MD319269 ROCKER ARM, INLET VALVE |
MD319269 |
US $43.09 |
||
|
03348
|
03348
MD319274 SHAFT, INLET VALVE ROCKER ARM |
MD319274 |
US $88.80 |
||
|
03349
|
03349
MD319275 SHAFT, EXHAUST VALVE ROCKER ARM |
MD319275 |
US $88.80 |
||
|
03356
|
03356
MD166768 SPRING, ROCKER SHAFT |
MD166768 |
from US $4.39 |
||
|
03358
|
03358
MD169459 CAP, ROCKER SHAFT |
MD169459 |
from US $1.93 |
||
|
03405
|
03405
MD159209 RETAINER, VALVE SPRING |
MD159209 |
from US $4.35 |
||
|
03410
|
03410
MD162422 VALVE, INLET |
MD162422 |
from US $22.41 |
||
|
03412
|
03412
MD151527 SEAT, VALVE SPRING |
MD151527 |
from US $1.79 |
||
|
03413
|
03413
MD170036 SPRING, INLET & EXHAUST VALVE |
MD170036 |
US $5.06 |
||
|
03414
|
03414
MD170036 SPRING, INLET & EXHAUST VALVE |
MD170036 |
US $5.06 |
||
|
03420
|
03420
MD162616 Valve, Exhaust |
MD162616 |
from US $20.49 |
||
|
03450
|
03450
MD151369 LOCK, VALVE SPRING RETAINER |
MD151369 |
from US $0.82 |
||
|
03480
|
03480
MD184303 SEAL, VALVE STEMRubber |
MD184303 |
from US $4.95 |
||
|
03490
|
03490
MD184303 SEAL, VALVE STEMRubber |
MD184303 |
from US $4.95 |
||
