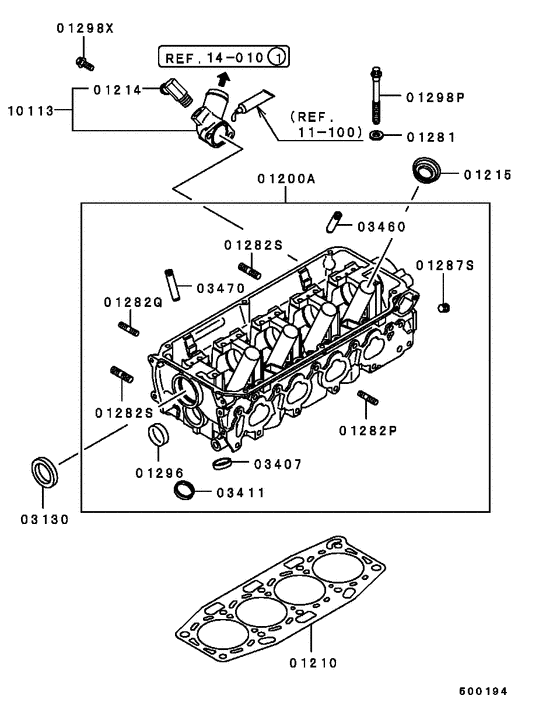

Cylinder head (ALL) Diagram Mitsubishi GALANT SIGMA
- Year
- 1995 - 1999
- Sales region
- Japan
- Note
- TAXI-LG(LPG),4FM/T
- transmission
- 4FM/T
- grade
- TAXI-LG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01200A
|
01200A
MD327211 HEAD ASSY, ENG CYLINDER |
MD327211 |
US $1,900.80 |
||
|
01210
|
01210
MD177341 GASKET, CYLINDER HEAD |
MD177341 |
from US $73.63 |
||
|
01210
|
01210
MD313674
GASKET, CYLINDER HEAD
|
MD313674 |
— | ||
| replacement | |||||
|
01210
|
01210
MD177341 GASKET, CYLINDER HEAD |
MD177341 |
from US $73.63 |
||
|
01214
|
01214
MD300741 JOINT, COOLING WATER LINE |
MD300741 |
US $28.73 |
||
|
01215
|
01215
MD198128 SEAL, CYLINDER HEAD SPARK PLUG GUIDERubber |
MD198128 |
from US $6.18 |
||
|
01281
|
01281
MD000436 WASHERPlain,10 |
MD000436 |
from US $2.15 |
||
|
01282P
|
01282P
MS401427 STUD, CYLINDER HEAD8x25 |
MS401427 |
from US $1.07 |
||
|
01282Q
|
01282Q
MD005317 STUD, CYLINDER HEAD8x28 |
MD005317 |
from US $2.11 |
||
|
01282S
|
01282S
MD122521 STUD, CYLINDER HEAD10x32 |
MD122521 |
from US $2.71 |
||
|
01287S
|
01287S
MS661141 PLUG, CYLINDER HEADTaper,1/4 |
MS661141 |
US $1.92 |
||
|
01296
|
01296
MF665541 CAP, CYLINDER BLOCK (HEAD)Sealing,35 |
MF665541 |
from US $1.31 |
||
|
01298P
|
01298P
MD164738 BOLT, CYLINDER HEADFlange,10x95 |
MD164738 |
from US $6.20 |
||
|
01298X
|
01298X
MF140026 BOLT, OIL FILTERFlange,8x22 |
MF140026 |
from US $2.13 |
||
|
03130
|
03130
MD133317
OIL SEAL, CAMSHAFT
|
MD133317 |
— | ||
| replacement | |||||
|
03130
|
03130
MD372536 OIL SEAL, CAMSHAFT |
MD372536 |
from US $7.33 |
||
|
03407
|
03407
MD330601 SEAT, EXHAUST VALVEO/size 0.30 |
MD330601 |
US $41.44 |
||
| replacement | |||||
|
03407
|
03407
1011A193 SEAT, EXHAUST VALVE |
1011A193 |
US $37 |
||
|
03407
|
03407
MD330602 SEAT, EXHAUST VALVEO/size 0.60 |
MD330602 |
US $41.44 |
||
| replacement | |||||
|
03407
|
03407
1011A194 SEAT, EXHAUST VALVE |
1011A194 |
US $37 |
||
|
03411
|
03411
MD189240 SEAT, INLET VALVEO/size 0.30 |
MD189240 |
US $31.08 |
||
|
03411
|
03411
MD189241 SEAT, INLET VALVEO/size 0.60 |
MD189241 |
US $31.08 |
||
|
03411
|
03411
MD339181 SEAT, INLET VALVEO/size 0.30 |
MD339181 |
US $41.44 |
||
| replacement | |||||
|
03411
|
03411
1010A258 SEAT, INLET VALVE |
1010A258 |
US $37 |
||
|
03411
|
03411
MD339182 SEAT, INLET VALVEO/size 0.60 |
MD339182 |
US $41.44 |
||
| replacement | |||||
|
03411
|
03411
1010A259 SEAT, INLET VALVE |
1010A259 |
US $37 |
||
|
03460
|
03460
MD300702 GUIDE, INLET VALVEO/size 0.05 |
MD300702 |
from US $19.87 |
||
|
03460
|
03460
MD300703 GUIDE, INLET VALVEO/size 0.25 |
MD300703 |
US $30.34 |
||
|
03460
|
03460
MD300704 GUIDE, INLET VALVEO/size 0.50 |
MD300704 |
US $30.34 |
||
|
03470
|
03470
MD172530 GUIDE, EXHAUST VALVEO/size 0.05 |
MD172530 |
from US $32.14 |
||
|
03470
|
03470
MD172531 GUIDE, EXHAUST VALVEO/size 0.25 |
MD172531 |
US $32.56 |
||
|
03470
|
03470
MD172532 GUIDE, EXHAUST VALVEO/size 0.50 |
MD172532 |
US $32.56 |
||
|
10113
|
10113
MD172485 FITTING, COOLING WATER OUTLET HOSE |
MD172485 |
US $46.62 |
||
|
