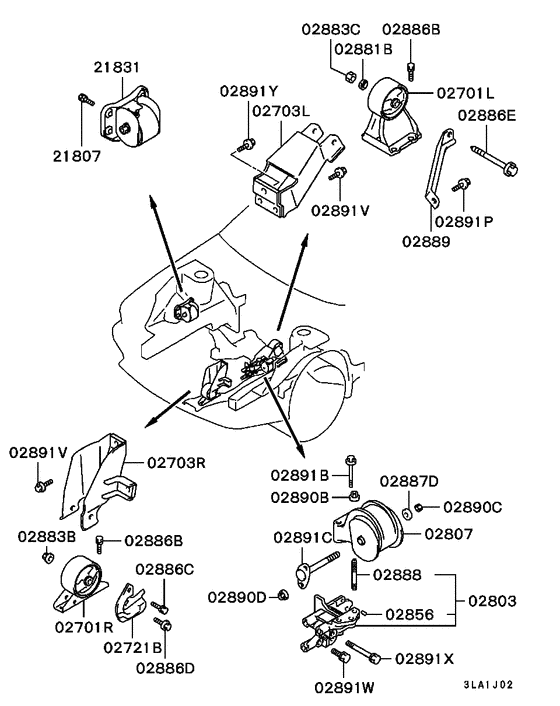

Engine mounting & support (ALL) Diagram Mitsubishi GALANT SIGMA
- Year
- 1995 - 1999
- Sales region
- Japan
- Note
- TAXI-LG(LPG),4FM/T
- transmission
- 4FM/T
- grade
- TAXI-LG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MR223776 BRACKET, ENG ROLL STOPPER, LH |
MR223776 |
US $78.44 |
||
|
02701R
|
02701R
MB309504 BRACKET, ENG ROLL STOPPER, RH |
MB309504 |
US $105.82 |
||
|
02703L
|
02703L
MD330647 BRACKET, CYLINDER BLOCK ROLL STOPPER, LH |
MD330647 |
US $142.08 |
||
|
02703R
|
02703R
MD330646 BRACKET, CYLINDER BLOCK ROLL STOPPER, RH |
MD330646 |
US $120.62 |
||
|
02721B
|
02721B
MB309494 PROTECTOR, ENG FR ROLL STOPPER HEAT |
MB309494 |
US $6.81 |
||
|
02803
|
02803
MD321730 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MD321730 |
US $198.32 |
||
|
02807
|
02807
MR223325 BRACKET, ENG FR MOUNTING |
MR223325 |
US $139.12 |
||
|
02856
|
02856
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.40 |
||
|
02881B
|
02881B
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
02883B
|
02883B
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883B
|
02883B
MB288462V
nut
|
MB288462V |
— | ||
|
02883C
|
02883C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02886B
|
02886B
MU241040 BOLT, ENG SUPPORT RODWasher assembled,10x25 |
MU241040 |
US $3.83 |
||
|
02886C
|
02886C
MF140020 BOLT, ENG SUPPORT RODFlange,8x10 |
MF140020 |
from US $0.70 |
||
|
02886D
|
02886D
MF140473
BOLT, ENG SUPPORT ROD
|
MF140473 |
— | ||
| replacement | |||||
|
02886D
|
02886D
MF911704 BOLT, COOLING FAN |
MF911704 |
from US $2.65 |
||
|
02886E
|
02886E
MB007173 BOLT, ENG SUPPORT RODCone point,10x90 |
MB007173 |
US $5.75 |
||
|
02887D
|
02887D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
02888
|
02888
MD171367 STUD, ENG MOUNTING10x65 |
MD171367 |
US $6.98 |
||
|
02889
|
02889
MD336884 STAY, ENG MOUNTING |
MD336884 |
US $29.60 |
||
|
02890B
|
02890B
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02890B
|
02890B
MB288462V
nut
|
MB288462V |
— | ||
|
02890C
|
02890C
MF430123 NUT, ENG RR MOUNTING12 |
MF430123 |
from US $1.11 |
||
|
02890D
|
02890D
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
02891B
|
02891B
MB309043 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB309043 |
US $4.59 |
||
|
02891C
|
02891C
MB175769
BOLT, ENG MOUNTING
|
MB175769 |
— | ||
|
02891P
|
02891P
MF244878 BOLT, CYLINDER HEADWasher assembled,10x20 |
MF244878 |
from US $1.50 |
||
|
02891V
|
02891V
MD330698 BOLT, ENG MOUNTINGFlange,10x25 |
MD330698 |
US $2.07 |
||
|
02891W
|
02891W
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
02891X
|
02891X
MF241296 BOLT, ENG MOUNTINGWasher assembled,10x80 |
MF241296 |
US $2.74 |
||
|
02891Y
|
02891Y
MD031605 BOLT, ENG MOUNTINGFlange,12x26 |
MD031605 |
US $4.59 |
||
|
21807
|
21807
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
21831
|
21831
MR223328 BRACKET, T/M MOUNTING BODY SIDE |
MR223328 |
US $121.36 |
||
