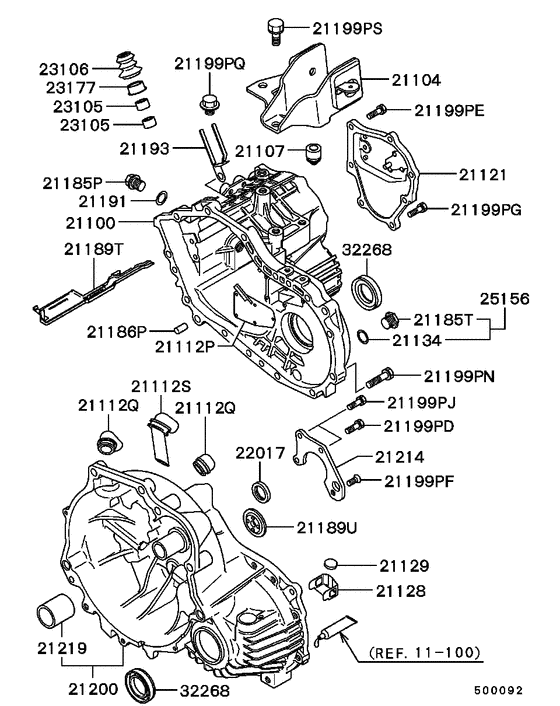

M/t case (8810.1- 4-SPEED (T/M CASE)) Diagram Mitsubishi GALANT SIGMA
- Year
- 1995 - 1999
- Sales region
- Japan
- Note
- TAXI-LG(LPG),4FM/T
- transmission
- 4FM/T
- grade
- TAXI-LG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21100
|
21100
MD746105 CASE, M/T |
MD746105 |
US $465.92 |
||
|
21104
|
21104
MD724388 BRACKET, M/T CASE MOUNTING |
MD724388 |
US $107.30 |
||
|
21104
|
21104
MD770275 BRACKET, M/T CASE MOUNTING |
MD770275 |
US $120.62 |
||
|
21107
|
21107
MD733296 BREATHER, M/T CASE |
MD733296 |
from US $3.92 |
||
|
21112P
|
21112P
MD720370
COVER, M/T CASE BREATHER HOLE
|
MD720370 |
— | ||
|
21112Q
|
21112Q
MD711443 COVER, M/T CASE BREATHER HOLE |
MD711443 |
from US $6.59 |
||
|
21112S
|
21112S
MD749716 COVER, M/T CASE BREATHER HOLE |
MD749716 |
US $5.92 |
||
|
21121
|
21121
MD732953 COVER, M/T CASE 5TH GEAR |
MD732953 |
US $77.70 |
||
|
21128
|
21128
MD727258
HOLDER, M/T CASE MAGNET
|
MD727258 |
— | ||
|
21129
|
21129
MD955485 MAGNET, M/T CASE |
MD955485 |
from US $2.05 |
||
|
21134
|
21134
MD000312 GASKET, PLUGD=18.2 |
MD000312 |
from US $1.31 |
||
|
21185P
|
21185P
MD701850 PLUG, M/T CASE16 |
MD701850 |
from US $4.13 |
||
|
21185T
|
21185T
MD728088 PLUG, M/T CASE18 |
MD728088 |
from US $2.32 |
||
|
21186P
|
21186P
MF472405 PIN, CYLINDER BLOCKDowel,10x20 |
MF472405 |
from US $1.31 |
||
|
21189T
|
21189T
MD732955 OIL GUIDE, M/T CASE |
MD732955 |
US $14.21 |
||
|
21189U
|
21189U
MD721067
OIL GUIDE, M/T CASE
|
MD721067 |
— | ||
|
21191
|
21191
MF660036 GASKET, ACCEL CONTROL EQUIPD=16 |
MF660036 |
from US $0.76 |
||
|
21193
|
21193
MD714714
CLIP, M/T CASE
|
MD714714 |
— | ||
|
21199PD
|
21199PD
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $1.01 |
||
|
21199PE
|
21199PE
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
21199PF
|
21199PF
MD704449
BOLT, M/T CASE
|
MD704449 |
— | ||
| replacement | |||||
|
21199PF
|
21199PF
32152W000P BOLT, M/T CASE |
32152W000P |
from US $2.69 |
||
|
21199PF
|
21199PF
MD734702
BOLT, A/T CASE
|
MD734702 |
— | ||
|
21199PG
|
21199PG
MF241259 BOLT, CRANKCASEWasher assembled,8x35 |
MF241259 |
from US $0.90 |
||
|
21199PJ
|
21199PJ
MD736249 BOLT, M/T CASEWasher assembled,8x25 |
MD736249 |
US $3.56 |
||
|
21199PN
|
21199PN
MF241288 BOLT, COOLING FANWasher assembled,10x40 |
MF241288 |
US $3.69 |
||
|
21199PQ
|
21199PQ
MD723985 BOLT, M/T CASEFlange,14x8 |
MD723985 |
US $3.70 |
||
|
21199PS
|
21199PS
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
21200
|
21200
MD749768 HOUSING, CLUTCH |
MD749768 |
US $892.53 |
||
|
21214
|
21214
MD735925
RETAINER, CLUTCH HOUSING FR BEARING
|
MD735925 |
— | ||
|
21219
|
21219
MD716349
RETAINER, M/T CASE CLUTCH RELEASE BEARING
|
MD716349 |
— | ||
|
22017
|
22017
MD741818 OIL SEAL, M/T INPUT SHAFT |
MD741818 |
from US $5.81 |
||
|
23105
|
23105
MD712913
BEARING, M/T GEARSHIFT SHAFT
|
MD712913 |
— | ||
| replacement | |||||
|
23105
|
23105
MD747209 BEARING, M/T GEARSHIFT SHAFTNeedle,20 |
MD747209 |
from US $6.40 |
||
|
23105
|
23105
MD747209 BEARING, M/T GEARSHIFT SHAFTNeedle,20 |
MD747209 |
from US $6.40 |
||
|
23106
|
23106
MD718557 BOOT, M/T GEARSHIFT SHAFT |
MD718557 |
from US $3.69 |
||
|
23177
|
23177
MD732405
OIL SEAL, M/T GEARSHIFT SHAFT
|
MD732405 |
— | ||
| replacement | |||||
|
23177
|
23177
MD747660 OIL SEAL, M/T GEARSHIFT SHAFT |
MD747660 |
from US $3.71 |
||
|
23177
|
23177
MD747660 OIL SEAL, M/T GEARSHIFT SHAFT |
MD747660 |
from US $3.71 |
||
|
32268
|
32268
MD707184 OIL SEAL,RR DIFF SIDE BEARING,LH |
MD707184 |
from US $4.78 |
||
