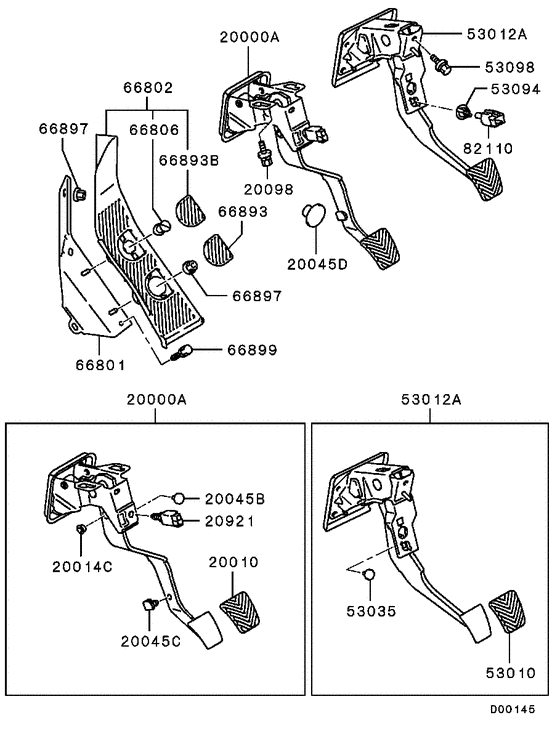

Brake & clutch pedal (LHD..M/T 0702.1-) Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- EUR
- Note
- (2WD/6PERSONS),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000A
|
20000A
MR955395
PEDAL ASSY,CLUTCH
|
MR955395 |
— | ||
|
20000A
|
20000A
MR955396
PEDAL ASSY,CLUTCH
|
MR955396 |
— | ||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014C
|
20014C
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $3.53 |
||
|
20045B
|
20045B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045C
|
20045C
MR307099 STOPPER, CLUTCH PEDAL |
MR307099 |
US $2.81 |
||
|
20045D
|
20045D
MR527683
STOPPER, CLUTCH PEDAL
|
MR527683 |
— | ||
| replacement | |||||
|
20045D
|
20045D
5240C267 limiter |
5240C267 |
from US $1.17 |
||
|
20098
|
20098
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20921
|
20921
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $11.02 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012A
|
53012A
4620A166
PEDAL ASSY,BRAKE
|
4620A166 |
— | ||
|
53012A
|
53012A
MR955380
PEDAL ASSY,BRAKE
|
MR955380 |
— | ||
|
53012A
|
53012A
MR995293
PEDAL ASSY,BRAKE
|
MR995293 |
— | ||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53094
|
53094
MR510882 CLIP, BRAKE PEDAL |
MR510882 |
US $2.52 |
||
|
53094
|
53094
MR510883 CLIP, BRAKE PEDAL |
MR510883 |
US $2.52 |
||
|
53098
|
53098
MF247891 BOLT, ENG FR MOUNTINGWasher assembled,8x20 |
MF247891 |
US $2.19 |
||
|
66801
|
66801
MN166897
BRACKET,FOOTREST
|
MN166897 |
— | ||
|
66802
|
66802
MN173506
FOOTREST
|
MN173506 |
— | ||
|
66806
|
66806
MR190315 CLIP, FOOTREST |
MR190315 |
US $3.15 |
||
|
66893
|
66893
MR406751 CAP, FOOTREST |
MR406751 |
US $3.85 |
||
|
66893B
|
66893B
MR406751 CAP, FOOTREST |
MR406751 |
US $3.85 |
||
|
66897
|
66897
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
66899
|
66899
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
82110
|
82110
8614A049 SWITCH, STOP LAMP |
8614A049 |
US $17.02 |
||
|
82110
|
82110
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $15.50 |
||
