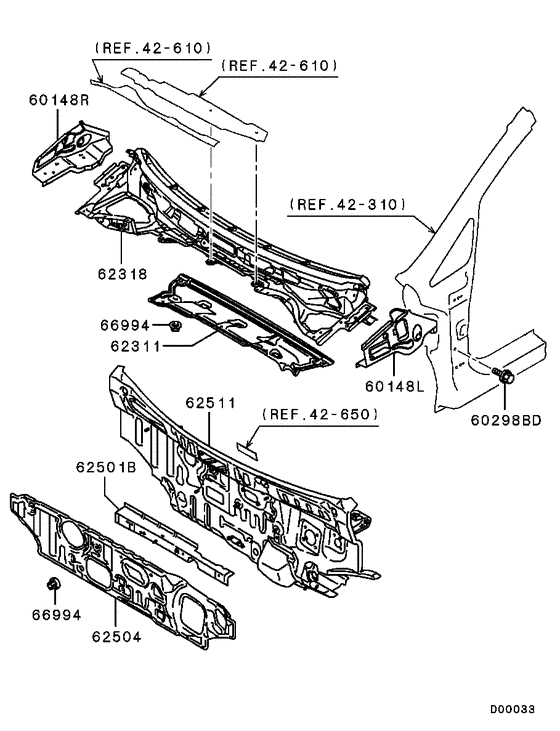

Front deck & insulator (-0505.3) Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- EUR
- Note
- (2WD/7PERSONS),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 7PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60148L
|
60148L
5230A689 EXTENSION, UPR FRAME, OTR LH |
5230A689 |
US $81.40 |
||
|
60148L
|
60148L
MN150847 EXTENSION, UPR FRAME, OTR LH |
MN150847 |
US $99.16 |
||
| replacement | |||||
|
60148L
|
60148L
5230A689 EXTENSION, UPR FRAME, OTR LH |
5230A689 |
US $81.40 |
||
|
60148R
|
60148R
5230A690 EXTENSION, UPR FRAME, OTR RH |
5230A690 |
US $81.40 |
||
|
60148R
|
60148R
MN150848 EXTENSION, UPR FRAME, OTR RH |
MN150848 |
US $99.16 |
||
| replacement | |||||
|
60148R
|
60148R
5230A690 EXTENSION, UPR FRAME, OTR RH |
5230A690 |
US $81.40 |
||
|
60298BD
|
60298BD
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.25 |
||
|
62311
|
62311
5375A006 INSULATOR, COWL TOP |
5375A006 |
US $37 |
||
|
62311
|
62311
5375A017 INSULATOR, COWL TOP |
5375A017 |
US $37 |
||
|
62311
|
62311
MN129351 INSULATOR, COWL TOP |
MN129351 |
US $45.14 |
||
| replacements | |||||
|
62311
|
62311
5375A017 INSULATOR, COWL TOP |
5375A017 |
US $37 |
||
|
62311
|
62311
5375A006 INSULATOR, COWL TOP |
5375A006 |
US $37 |
||
|
62318
|
62318
5230A852 PANEL, COWL TOP |
5230A852 |
US $509.60 |
||
|
62318
|
62318
MN150724 PANEL, COWL TOP |
MN150724 |
US $509.60 |
||
| replacement | |||||
|
62318
|
62318
5230A852 PANEL, COWL TOP |
5230A852 |
US $509.60 |
||
|
62501B
|
62501B
5240A592
CROSSMEMBER,DASH PANEL,UPR
|
5240A592 |
— | ||
|
62501B
|
62501B
MN186313
CROSSMEMBER,DASH PANEL,UPR
|
MN186313 |
— | ||
|
62504
|
62504
5240A228
INSULATOR,DASH PANEL
|
5240A228 |
— | ||
|
62504
|
62504
5240A322
INSULATOR,DASH PANEL
|
5240A322 |
— | ||
|
62504
|
62504
MR964264
INSULATOR,DASH PANEL
|
MR964264 |
— | ||
|
62511
|
62511
5240A257 DASH PANEL |
5240A257 |
US $757.12 |
||
|
62511
|
62511
5240A591
DASH PANEL
|
5240A591 |
— | ||
|
62511
|
62511
MN186312
DASH PANEL
|
MN186312 |
— | ||
| replacement | |||||
|
62511
|
62511
5240A257 DASH PANEL |
5240A257 |
US $757.12 |
||
|
66994
|
66994
MB157530 CLIP, GEARSHIFT LINKM6 |
MB157530 |
from US $1.21 |
||
|
66994
|
66994
MN111524 CLIP, ENG ROOM INSULATOR |
MN111524 |
from US $1.52 |
||
|
42 310
|
Side structure
42 310
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 610
|
Loose panel
42 610
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
