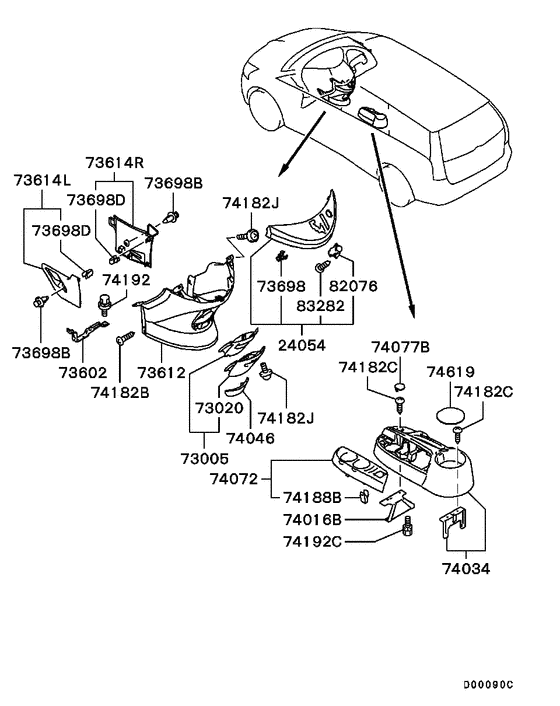

Console (RHD..A/T) Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2005
- Sales region
- EUR
- Note
- (2WD/6PERSONS),S4FA/T RHD
- drive
- 2WD
- transmission
- S4FA/T
- grade
- 6PERSONS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24054
|
24054
MN134300HA PANEL, INSTRUMENT PANEL CONSOLE |
MN134300HA |
US $291.56 |
||
|
73005
|
73005
8040A004HA ASHTRAY, INSTRUMENT PANEL |
8040A004HA |
US $62.16 |
||
|
73020
|
73020
8040A005HA CASE, INSTRUMENT PANEL ASHTRAY |
8040A005HA |
US $22.94 |
||
|
73602
|
73602
MR962230 BRACKET, INSTRUMENT PANEL CONSOLE |
MR962230 |
US $20.72 |
||
|
73612
|
73612
MR996209HA CONSOLE, INSTRUMENT PANEL, CTR |
MR996209HA |
US $149.48 |
||
|
73614L
|
73614L
MN166599HA
COVER,INSTRUMENT PANEL CONSOLE SIDE,LH
|
MN166599HA |
— | ||
|
73614R
|
73614R
MR962221HA COVER, INSTRUMENT PANEL CONSOLE SIDE, RH |
MR962221HA |
US $20.72 |
||
|
73698
|
73698
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.40 |
||
|
73698B
|
73698B
MR647319 CLIP, SCUFF PLATE |
MR647319 |
US $1.63 |
||
|
73698D
|
73698D
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.40 |
||
|
74016B
|
74016B
MN151927
BRACKET,FLOOR CONSOLE
|
MN151927 |
— | ||
|
74034
|
74034
MN151923XA
CONSOLE,FLOOR
|
MN151923XA |
— | ||
|
74046
|
74046
MN134048HA COVER, FLOOR CONSOLE |
MN134048HA |
US $10.95 |
||
|
74072
|
74072
MN151926XA
PANEL,FLOOR CONSOLE
|
MN151926XA |
— | ||
|
74077B
|
74077B
MN179223XA
PLUG,FLOOR CONSOLE
|
MN179223XA |
— | ||
|
74182B
|
74182B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.54 |
||
|
74182C
|
74182C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.54 |
||
|
74182J
|
74182J
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.48 |
||
|
74188B
|
74188B
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.40 |
||
|
74192
|
74192
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.31 |
||
|
74192C
|
74192C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
74192C
|
74192C
MF240650 BOLT, P/S OIL PUMPWasher assembled,8x14 |
MF240650 |
US $2.22 |
||
|
74619
|
74619
8011A003XA
MAT,FLOOR CONSOLE BOX
|
8011A003XA |
— | ||
|
74619
|
74619
8011A317XA
MAT,FLOOR CONSOLE BOX
|
8011A317XA |
— | ||
|
82076
|
82076
MR962274 SWITCH, HAZARD WARNING LAMP |
MR962274 |
US $42.18 |
||
|
83282
|
83282
MF456457 SCREW, FR DOOR ARMRESTTapping,4x12 |
MF456457 |
US $1.63 |
