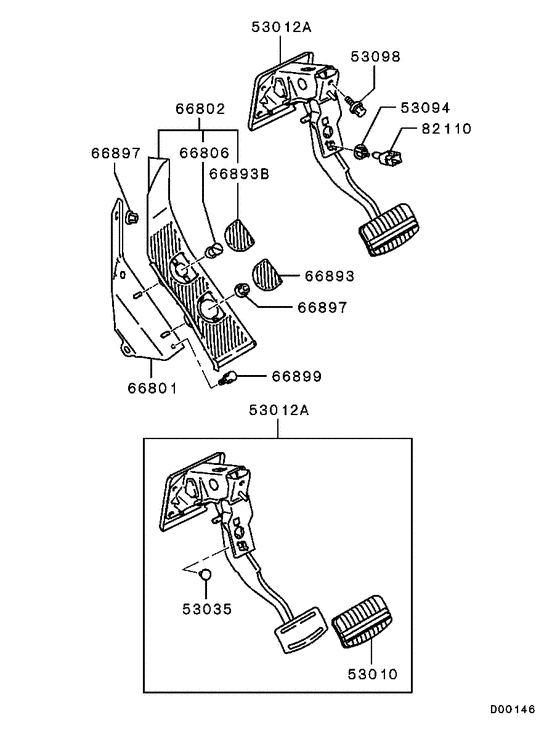

Brake & clutch pedal (LHD..A/T 0702.1-) Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- EUR
- Note
- (2WD/7PERSONS/EURO4),S4FA/T LHD
- drive
- 2WD
- transmission
- S4FA/T
- grade
- 7PERSONS/EURO4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53010
|
53010
4620A070 PAD, BRAKE PEDAL |
4620A070 |
from US $39.16 |
||
|
53010
|
53010
MR334969 PAD, BRAKE PEDAL61x112 |
MR334969 |
from US $3.76 |
||
|
53012A
|
53012A
4620A156
PEDAL ASSY,BRAKE
|
4620A156 |
— | ||
|
53012A
|
53012A
4620A168
PEDAL ASSY,BRAKE
|
4620A168 |
— | ||
|
53012A
|
53012A
4620A169
PEDAL ASSY,BRAKE
|
4620A169 |
— | ||
|
53012A
|
53012A
MR955382
PEDAL ASSY,BRAKE
|
MR955382 |
— | ||
|
53012A
|
53012A
MR995295
PEDAL ASSY,BRAKE
|
MR995295 |
— | ||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53094
|
53094
MR510882 CLIP, BRAKE PEDAL |
MR510882 |
US $2.52 |
||
|
53094
|
53094
MR510883 CLIP, BRAKE PEDAL |
MR510883 |
US $2.52 |
||
|
53098
|
53098
MF247891 BOLT, ENG FR MOUNTINGWasher assembled,8x20 |
MF247891 |
US $2.19 |
||
|
66801
|
66801
MN166897
BRACKET,FOOTREST
|
MN166897 |
— | ||
|
66802
|
66802
MN173506
FOOTREST
|
MN173506 |
— | ||
|
66806
|
66806
MR190315 CLIP, FOOTREST |
MR190315 |
US $3.15 |
||
|
66893
|
66893
MR406751 CAP, FOOTREST |
MR406751 |
US $3.85 |
||
|
66893B
|
66893B
MR406751 CAP, FOOTREST |
MR406751 |
US $3.85 |
||
|
66897
|
66897
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
66899
|
66899
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
82110
|
82110
8614A049 SWITCH, STOP LAMP |
8614A049 |
US $17.02 |
||
|
82110
|
82110
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $15.50 |
