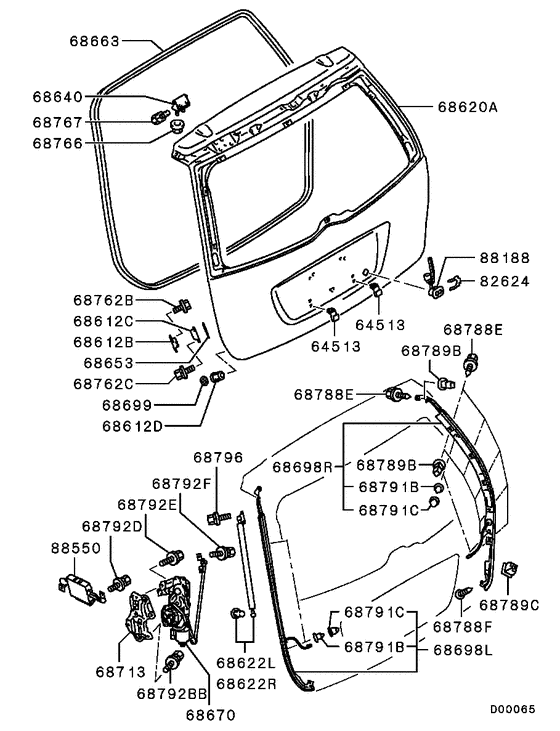

Tailgate panel & glass (PANEL,HINGE,ETC.(W/POWER TAILGATE)) Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- Japan
- Note
- VS-EDITION/EX-X/G(7PERSONS),S4FA/T
- transmission
- S4FA/T
- grade
- VS-EDITION/EX-X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64513
|
64513
MR358518 BRACKET, LICENSE PLATE |
MR358518 |
US $3.01 |
||
|
68612B
|
68612B
MB422898 DAMPER, TAILGATE, LWR |
MB422898 |
from US $4.29 |
||
|
68612C
|
68612C
MB422899 DAMPER, TAILGATE, UPR |
MB422899 |
from US $2.57 |
||
|
68612D
|
68612D
MR473473 DAMPER, TAILGATE |
MR473473 |
from US $2.63 |
||
|
68620A
|
68620A
5801A249 PANEL ASSY, TAILGATE |
5801A249 |
US $873.60 |
||
|
68620A
|
68620A
5801A250 PANEL ASSY, TAILGATE |
5801A250 |
US $873.60 |
||
|
68620A
|
68620A
5801A251 PANEL ASSY, TAILGATE |
5801A251 |
US $793.52 |
||
|
68620A
|
68620A
MN150743 PANEL ASSY, TAILGATE |
MN150743 |
US $873.60 |
||
|
68622L
|
68622L
5802A037 GAS SPRING, TAILGATE, LH |
5802A037 |
US $129.50 |
||
|
68622L
|
68622L
MN145655 GAS SPRING, TAILGATE, LH |
MN145655 |
US $129.50 |
||
|
68622L
|
68622L
MN145665 GAS SPRING, TAILGATE, LH |
MN145665 |
US $156.88 |
||
|
68622R
|
68622R
5802A038 GAS SPRING, TAILGATE, RH |
5802A038 |
US $129.50 |
||
|
68622R
|
68622R
MN145656 GAS SPRING, TAILGATE, RH |
MN145656 |
US $129.50 |
||
|
68622R
|
68622R
MN145666 GAS SPRING, TAILGATE, RH |
MN145666 |
US $156.88 |
||
|
68640
|
68640
MR987773 HINGE, TAILGATE |
MR987773 |
US $19.98 |
||
|
68653
|
68653
MB537498 SHIM, TAILGATE DAMPER STOPPER1.0 |
MB537498 |
US $4.44 |
||
|
68663
|
68663
MR959711 WEATHERSTRIP, TAILGATE OPENING |
MR959711 |
US $105.34 |
||
|
68670
|
68670
5813A028 MOTOR, POWER TAILGATE |
5813A028 |
US $1,067.25 |
||
|
68698L
|
68698L
5813A007 SENSOR, TAILGATE LOCK, LH |
5813A007 |
US $257.52 |
||
|
68698R
|
68698R
5813A008 SENSOR, TAILGATE LOCK, RH |
5813A008 |
US $257.52 |
||
|
68699
|
68699
MB368383 FILM, TRAILER SOCKET PROTECTOR |
MB368383 |
from US $1.60 |
||
|
68713
|
68713
5379A069 BRACKET, POWER TAILGATE MOTOR |
5379A069 |
US $27.36 |
||
|
68762B
|
68762B
MF140004 BOLT, FUEL VAPOR CONTROL LINEFlange,6x14 |
MF140004 |
US $2.46 |
||
|
68762B
|
68762B
MF140724 BOLT, ACCEL CABLE SUPPORTFlange,6x14 |
MF140724 |
US $3.28 |
||
|
68762C
|
68762C
MF244226 BOLT, A/C PIPINGWasher assembled,6x20 |
MF244226 |
US $2.87 |
||
|
68762C
|
68762C
MS240632 BOLT, HOOD LOCKINGWasher assembled,6x20 |
MS240632 |
US $2.05 |
||
|
68766
|
68766
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
68766
|
68766
MS440523 NUT, FUEL TANKWasher assembled,8 |
MS440523 |
from US $0.70 |
||
|
68767
|
68767
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
68788E
|
68788E
MS452347 SCREW, SPLASH SHIELDTapping washer assembled,6x16 |
MS452347 |
US $2.87 |
||
|
68788E
|
68788E
MS452356 SCREW, SPLASH SHIELDTapping washer assembled,6x16 |
MS452356 |
from US $2.37 |
||
|
68788F
|
68788F
MF453077 SCREW, ENG AIR INTAKE LINETapping,4x12 |
MF453077 |
from US $1.77 |
||
|
68789B
|
68789B
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
68789C
|
68789C
MU000314 GROMMET, FR DOOR LOCKINGScrew |
MU000314 |
from US $1.07 |
||
|
68791B
|
68791B
5813A026 CLIP, TAILGATE LOCKING |
5813A026 |
from US $2.11 |
||
|
68791C
|
68791C
5813A027 CLIP, TAILGATE LOCKING |
5813A027 |
from US $2.11 |
||
|
68792BB
|
68792BB
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
68792D
|
68792D
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
68792E
|
68792E
MF244824 BOLTWasher assembled,6x16 |
MF244824 |
from US $0.82 |
||
|
68792F
|
68792F
MU240092 BOLT, RR DOOR LOCKINGWasher assembled,6x16 |
MU240092 |
US $2.74 |
||
|
68796
|
68796
MU240103 BOLT, TAILGATE LOCKINGWasher assembled,6x16 |
MU240103 |
US $2.07 |
||
|
82624
|
82624
MB885764 RETAINER, DOOR LOCK CYLINDER |
MB885764 |
from US $2.13 |
||
|
88188
|
88188
5716A051BA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051BA |
US $53.28 |
||
|
88188
|
88188
5716A051HA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051HA |
from US $53.28 |
||
|
88188
|
88188
5716A051HB SWITCH, KEYLESS OPERATION TAILGATE |
5716A051HB |
US $53.28 |
||
|
88188
|
88188
5716A051HC SWITCH, KEYLESS OPERATION TAILGATE |
5716A051HC |
US $53.28 |
||
|
88188
|
88188
5716A051HD SWITCH, KEYLESS OPERATION TAILGATE |
5716A051HD |
US $53.28 |
||
|
88188
|
88188
5716A051HE SWITCH, KEYLESS OPERATION TAILGATE |
5716A051HE |
US $53.28 |
||
|
88188
|
88188
5716A051RA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051RA |
US $53.28 |
||
|
88188
|
88188
5716A051VA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051VA |
US $53.28 |
||
|
88188
|
88188
5716A051WA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051WA |
US $53.28 |
||
|
88188
|
88188
5716A051WB SWITCH, KEYLESS OPERATION TAILGATE |
5716A051WB |
US $53.28 |
||
|
88188
|
88188
5716A051XA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051XA |
from US $53.28 |
||
|
88188
|
88188
5716A051XB SWITCH, KEYLESS OPERATION TAILGATE |
5716A051XB |
US $53.28 |
||
|
88188
|
88188
5716A051YA SWITCH, KEYLESS OPERATION TAILGATE |
5716A051YA |
US $53.28 |
||
|
88550
|
88550
5813A006 CONTROL UNIT, POWER TAILGATE |
5813A006 |
US $576.58 |
||
| replacement | |||||
|
88550
|
88550
5813A049 CONTROL UNIT, POWER TAILGATE |
5813A049 |
US $524.16 |
||
|
88550
|
88550
5813A049 CONTROL UNIT, POWER TAILGATE |
5813A049 |
US $524.16 |
||
