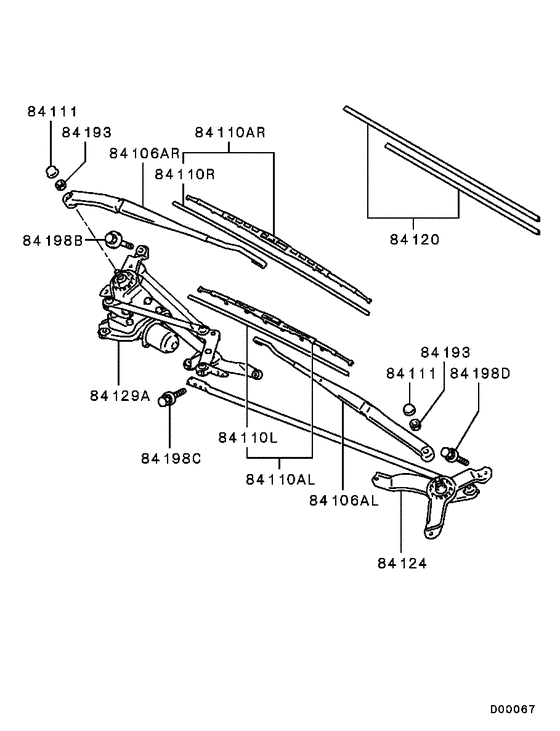

Windshield wiper & washer (WIPER) Diagram Mitsubishi GRANDIS
- Year
- 2003 - 2009
- Sales region
- Japan
- Note
- ELEGANCE HDD-NAVI/EX/M(4WD/7P),S4FA/T
- drive
- 4WD
- transmission
- S4FA/T
- grade
- ELEGANCE HDD-NA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106AL
|
84106AL
MN182379 ARM ASSY, WINDSHIELD WIPER |
MN182379 |
US $68.08 |
||
|
84106AR
|
84106AR
MN182378 ARM ASSY, WINDSHIELD WIPER |
MN182378 |
US $68.08 |
||
|
84110AL
|
84110AL
MN182413 BLADE ASSY, WINDSHIELD WIPER550 |
MN182413 |
US $45.88 |
||
|
84110AR
|
84110AR
MN182386 BLADE ASSY, WINDSHIELD WIPER700 |
MN182386 |
US $65.12 |
||
|
84110L
|
84110L
MR441671 BLADE, WINDSHIELD WIPER550 |
MR441671 |
from US $8.72 |
||
|
84110R
|
84110R
MN182389 BLADE, WINDSHIELD WIPER700 |
MN182389 |
US $14.65 |
||
|
84111
|
84111
MR989858 CAP, WINDSHIELD WIPER LINK |
MR989858 |
US $3.26 |
||
|
84120
|
84120
MN161331 BLADE SET, WINDSHIELD WIPER |
MN161331 |
from US $25.16 |
||
|
84124
|
84124
MR989178 LINK, WINDSHIELD WIPER |
MR989178 |
US $123.58 |
||
|
84129A
|
84129A
MR957763 MOTOR ASSY, WINDSHIELD WIPER |
MR957763 |
US $365.46 |
||
|
84193
|
84193
MF430007 NUT12 |
MF430007 |
from US $1.29 |
||
|
84198B
|
84198B
MU000870 BOLT, WINDSHIELD WIPERWasher assembled,6x30 |
MU000870 |
from US $1.58 |
||
|
84198C
|
84198C
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
84198D
|
84198D
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $1.07 |
