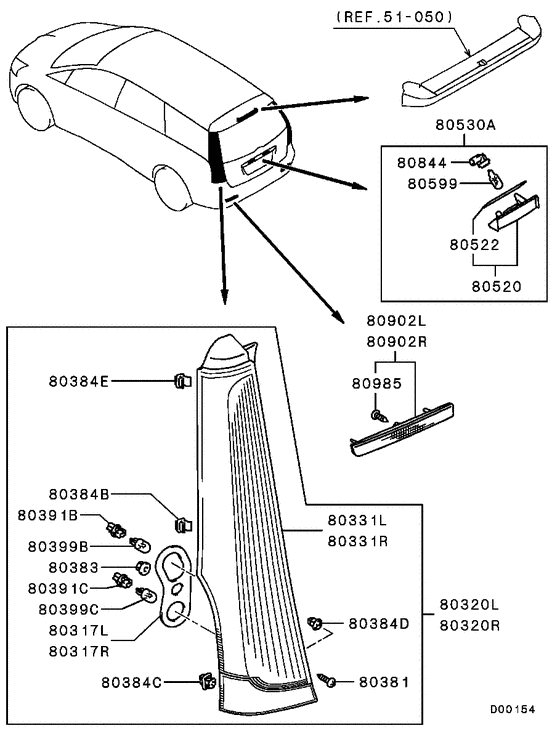

Rear exterior lamp Diagram Mitsubishi GRANDIS
- Year
- 2004 - 2009
- Sales region
- Japan
- Note
- VS-EDITION/EX-X/G(4WD/7PERSONS),S4FA/T
- drive
- 4WD
- transmission
- S4FA/T
- grade
- VS-EDITION/EX-X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317L
|
80317L
MN182335 GASKET, RR COMBINATION LAMP, LH |
MN182335 |
US $6.96 |
||
|
80317R
|
80317R
MN182336 GASKET, RR COMBINATION LAMP, RH |
MN182336 |
US $6.96 |
||
|
80320L
|
80320L
8330A207 LAMP KIT, COMBINATION, RR LHLed,12v-21w,21w |
8330A207 |
US $582.40 |
||
|
80320L
|
80320L
8330A487 LAMP KIT, COMBINATION, RR LHLed,12v-21w,21w |
8330A487 |
US $528.53 |
||
|
80320L
|
80320L
MN161103 LAMP KIT, COMBINATION, RR LHLed,12v-21w,21w |
MN161103 |
US $582.40 |
||
|
80320R
|
80320R
8330A208
LAMP KIT, COMBINATION, RR RH
|
8330A208 |
— | ||
|
80320R
|
80320R
8330A488 LAMP KIT, COMBINATION, RR RHLed,12v-21w,21w |
8330A488 |
US $528.53 |
||
|
80320R
|
80320R
MN161104 LAMP KIT, COMBINATION, RR RHLed,12v-21w,21w |
MN161104 |
US $582.40 |
||
|
80331L
|
80331L
8330A187 LAMP UNIT, COMBINATION, RR LH |
8330A187 |
US $563.47 |
||
|
80331L
|
80331L
8330A507 LAMP UNIT, COMBINATION, RR LH |
8330A507 |
US $511.06 |
||
|
80331L
|
80331L
MN182329 LAMP UNIT, COMBINATION, RR LH |
MN182329 |
US $562.02 |
||
|
80331R
|
80331R
8330A188 LAMP UNIT, COMBINATION, RR RH |
8330A188 |
US $563.47 |
||
|
80331R
|
80331R
8330A508 LAMP UNIT, COMBINATION, RR RH |
8330A508 |
US $511.06 |
||
|
80331R
|
80331R
MN182330 LAMP UNIT, COMBINATION, RR RH |
MN182330 |
US $562.02 |
||
|
80381
|
80381
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
80381
|
80381
MF453273 SCREW, SCUFF PLATETapping,5x16 |
MF453273 |
from US $1.54 |
||
|
80383
|
80383
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
80384B
|
80384B
MR339084 GROMMET, TAIL LAMP |
MR339084 |
from US $1.62 |
||
|
80384C
|
80384C
MR991599 GROMMET, TAIL LAMP |
MR991599 |
US $2.07 |
||
|
80384D
|
80384D
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
80384E
|
80384E
8330A261 GROMMET, TAIL LAMP |
8330A261 |
from US $2.61 |
||
|
80391B
|
80391B
MU000574 SOCKET, HEADLAMP |
MU000574 |
US $6.51 |
||
|
80391B
|
80391B
MU805836 SOCKET, HEADLAMP |
MU805836 |
from US $3.28 |
||
|
80391C
|
80391C
MU000229 SOCKET, HEADLAMP |
MU000229 |
US $8.48 |
||
|
80399B
|
80399B
MS820050 BULB, HEADLAMP12v-21w |
MS820050 |
from US $5.36 |
||
|
80399C
|
80399C
MS820026 BULB, TAIL LAMP12v-21w |
MS820026 |
from US $1.87 |
||
|
80520
|
80520
8341A121 LAMP UNIT, LICENSE PLATE |
8341A121 |
US $16.28 |
||
|
80520
|
80520
MN182324 LAMP UNIT, LICENSE PLATE |
MN182324 |
US $20.72 |
||
|
80522
|
80522
MN182325 GASKET, LICENSE PLATE LAMP BASE |
MN182325 |
US $1.92 |
||
|
80530A
|
80530A
MR989859 LAMP ASSY, LICENSE PLATE12v-5w |
MR989859 |
US $30.34 |
||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80844
|
80844
MU805811 SOCKET, LICENSE PLATE LAMP |
MU805811 |
from US $4.50 |
||
|
80985
|
80985
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
51 050
|
Rear garnish & moulding
51 050
|
||||
|
51 050
|
Rear garnish & moulding
51 050
|
||||
