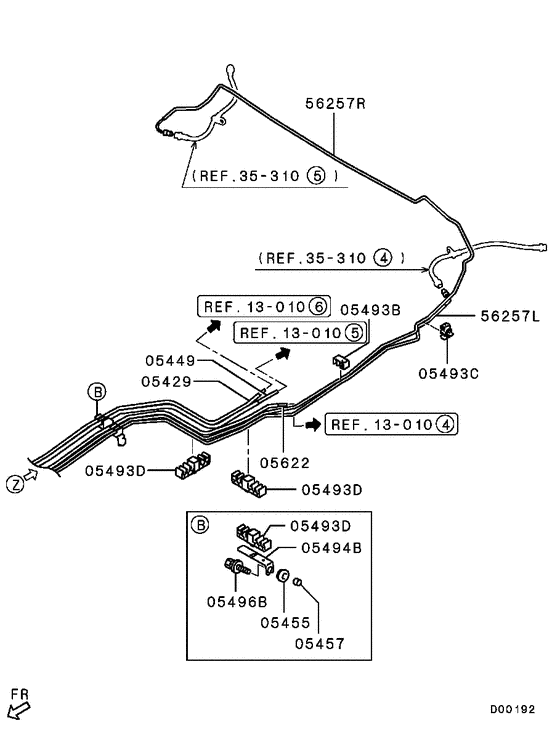

Fuel line & vapor gas control (REAR) Diagram Mitsubishi GRANDIS
- Year
- 2005 - 2007
- Sales region
- Japan
- Note
- LIMITED-NAVI ED(4WD/7PERSONS),S4FA/T
- drive
- 4WD
- transmission
- S4FA/T
- grade
- LIMITED-NAVI ED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05429
|
05429
MR993516 PIPE, FUEL RETURN |
MR993516 |
US $50.32 |
||
|
05449
|
05449
MR993515 PIPE, FUEL LINE |
MR993515 |
US $64.38 |
||
|
05455
|
05455
MB221305 CUSHION, FUEL LINE |
MB221305 |
US $4.51 |
||
|
05457
|
05457
MB845609 COLLAR, FUEL LINE |
MB845609 |
US $3.15 |
||
|
05493B
|
05493B
MN102656 CLIP, FUEL LINE |
MN102656 |
US $2.96 |
||
|
05493C
|
05493C
MN102856 CLIP, RR AXLE BRAKE TUBE |
MN102856 |
US $3.11 |
||
|
05493D
|
05493D
MR993518 CLIP, FUEL LINE |
MR993518 |
US $6.51 |
||
|
05494B
|
05494B
1748A030 CLAMP, FUEL LINE |
1748A030 |
US $4.88 |
||
|
05494B
|
05494B
MR993520 CLAMP, FUEL LINE |
MR993520 |
US $6.07 |
||
|
05496B
|
05496B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
05496B
|
05496B
MS240127 BOLT, STEERING COLUMNWasher assembled,8x30 |
MS240127 |
from US $0.92 |
||
|
05622
|
05622
MR993517 PIPE, FUEL VAPOR |
MR993517 |
US $44.40 |
||
|
56257L
|
56257L
MN102697 TUBE, BRAKE MAIN, LH |
MN102697 |
US $50.32 |
||
|
56257R
|
56257R
MN102698 TUBE, BRAKE MAIN, RH |
MN102698 |
US $72.52 |
||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
