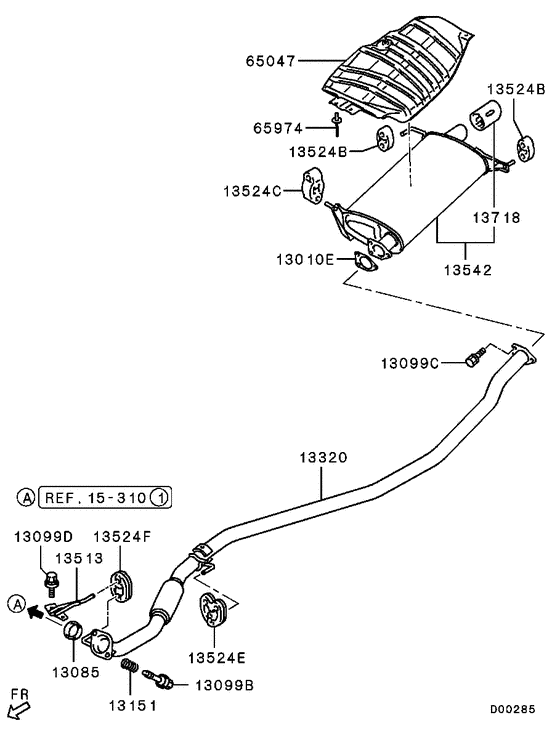

Exhaust pipe & muffler (W/O DPF) Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (6PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010E
|
13010E
MN110644 GASKET, CATALYTIC CONVERTER |
MN110644 |
from US $4.60 |
||
|
13085
|
13085
MR450702 SEAL RING, EXHAUST PIPE |
MR450702 |
from US $11.84 |
||
|
13099B
|
13099B
MR431025 BOLT, EXHAUST PIPEFlange |
MR431025 |
from US $2.54 |
||
|
13099C
|
13099C
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099D
|
13099D
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
|
13151
|
13151
MN171212 SPRING, EXHAUST FR PIPE CUSHION |
MN171212 |
US $4.88 |
||
|
13320
|
13320
1570A035
PIPE,EXHAUST,CTR
|
1570A035 |
— | ||
|
13513
|
13513
1577A001
BRACKET,EXHAUST PIPE HANGER
|
1577A001 |
— | ||
|
13524B
|
13524B
MR431631 HANGER, EXHAUST MUFFLER |
MR431631 |
from US $8.97 |
||
|
13524C
|
13524C
MR281817 HANGER, EXHAUST MUFFLER |
MR281817 |
from US $12.25 |
||
|
13524E
|
13524E
MN135221 HANGER, EXHAUST MUFFLER |
MN135221 |
US $18.47 |
||
|
13524F
|
13524F
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13542
|
13542
1571A143
MUFFLER,EXHAUST MAIN
|
1571A143 |
— | ||
| replacement | |||||
|
13542
|
13542
1571A480
MUFFLER,EXHAUST MAIN
|
1571A480 |
— | ||
|
13542
|
13542
1571A480
MUFFLER,EXHAUST MAIN
|
1571A480 |
— | ||
|
13718
|
13718
MR340444 DIFFUSER, EXHAUST TAIL PIPE |
MR340444 |
US $44.40 |
||
|
65047
|
65047
MN142551 PROTECTOR, UNDER RR FLOOR HEAT |
MN142551 |
US $75.92 |
||
|
65974
|
65974
MU000202 RIVET, FLOOR HEAT PROTECTORRivet,40mm |
MU000202 |
from US $1.37 |
||
|
15 310
|
Exhaust manifold
15 310
|
||||
|
15 310
|
Exhaust manifold
15 310
|
||||
