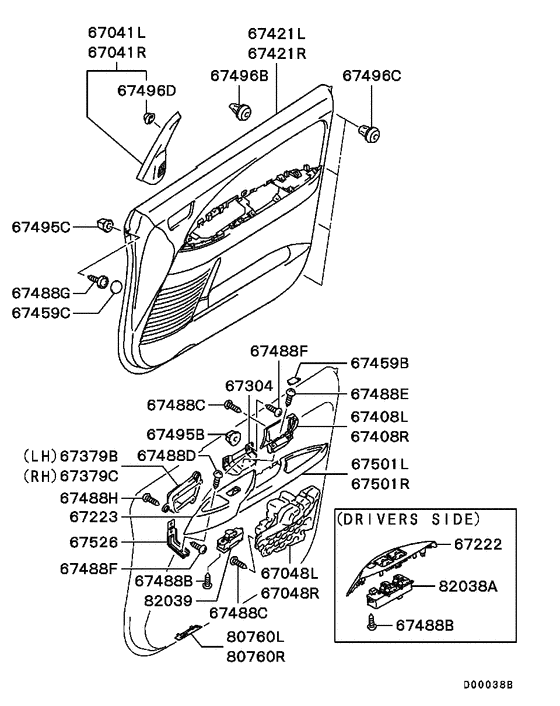

Front door trim & pull handle Diagram Mitsubishi GRANDIS
- Year
- 2007 - 2009
- Sales region
- EUR
- Note
- (6PERSONS/DPF),6FM/T LHD
- transmission
- 6FM/T
- grade
- 6PERSONS/DPF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67041L
|
67041L
MN151789XA TRIM, FR DOOR SASH, LH |
MN151789XA |
US $17.76 |
||
|
67041R
|
67041R
MN151790XA TRIM, FR DOOR SASH, RH |
MN151790XA |
US $17.76 |
||
|
67048L
|
67048L
MN134437 CORE, FR DOOR PANEL, INR LH |
MN134437 |
US $22.20 |
||
|
67048R
|
67048R
MN134438 CORE, FR DOOR PANEL, INR RH |
MN134438 |
US $22.20 |
||
|
67222
|
67222
MN179481HB
PANEL,FR DOOR POWER WINDOW SWITCH DRIVER SIDE
|
MN179481HB |
— | ||
|
67222
|
67222
MN179483HA
PANEL,FR DOOR POWER WINDOW SWITCH DRIVER SIDE
|
MN179483HA |
— | ||
|
67223
|
67223
MN179480HE
PANEL,FR DOOR POWER WINDOW SWITCH ASSISTANT SIDE
|
MN179480HE |
— | ||
|
67223
|
67223
MN179482HA
PANEL,FR DOOR POWER WINDOW SWITCH ASSISTANT SIDE
|
MN179482HA |
— | ||
|
67304
|
67304
MR996242 BRACKET, FR DOOR PULL HANDLE |
MR996242 |
US $11.10 |
||
|
67379B
|
67379B
MN134435 PANEL, FR DOOR SUPPORT, LH |
MN134435 |
US $19.98 |
||
|
67379C
|
67379C
MN134436 PANEL, FR DOOR SUPPORT, RH |
MN134436 |
US $19.98 |
||
|
67408L
|
67408L
MN134433XA BOX, FR DOOR TRIM, LH |
MN134433XA |
US $19.98 |
||
|
67408R
|
67408R
MN134434XA BOX, FR DOOR TRIM, RH |
MN134434XA |
US $19.98 |
||
|
67421L
|
67421L
7221A855HC TRIM, FR DOOR, LH |
7221A855HC |
US $540.18 |
||
|
67421L
|
67421L
7221A857HA TRIM, FR DOOR, LH |
7221A857HA |
US $540.18 |
||
|
67421R
|
67421R
7221A856HC TRIM, FR DOOR, RH |
7221A856HC |
US $540.18 |
||
|
67421R
|
67421R
7221A858HA TRIM, FR DOOR, RH |
7221A858HA |
US $540.18 |
||
|
67459B
|
67459B
MN134199XA CAP, FR DOOR TRIM SCREW |
MN134199XA |
US $3.97 |
||
|
67459C
|
67459C
MR647325 CAP, RR SIDE TRIM SCREW |
MR647325 |
US $2.07 |
||
|
67488B
|
67488B
MF455017 SCREW, STEERING WHEELTapping,4x12 |
MF455017 |
from US $1.40 |
||
|
67488C
|
67488C
MF455017 SCREW, STEERING WHEELTapping,4x12 |
MF455017 |
from US $1.40 |
||
|
67488D
|
67488D
MF453091 SCREW, FUEL FILLER LID LOCKING |
MF453091 |
from US $1.74 |
||
|
67488E
|
67488E
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
67488F
|
67488F
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
67488G
|
67488G
MB645008 SCREW, RR PILLAR TRIMWasher assembled,4x12 |
MB645008 |
US $3.15 |
||
|
67488H
|
67488H
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
67495B
|
67495B
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
67495C
|
67495C
MS480010 GROMMET, TAILGATE TRIMScrew,4 |
MS480010 |
from US $1.03 |
||
|
67496B
|
67496B
MU000504 CLIP, RADIATOR GRILLE8.5 |
MU000504 |
from US $1.60 |
||
|
67496C
|
67496C
MU000588 CLIP, SIDE AIR DAM |
MU000588 |
from US $0.90 |
||
|
67496D
|
67496D
MB153448 CLIP, HOOD AIR GARNISH4.6 |
MB153448 |
from US $1.21 |
||
|
67501L
|
67501L
7221A321XA ARMREST, FR DOOR, LH |
7221A321XA |
US $96.20 |
||
|
67501L
|
67501L
MN134431XA ARMREST, FR DOOR, LH |
MN134431XA |
US $96.20 |
||
|
67501R
|
67501R
7221A322XA ARMREST, FR DOOR, RH |
7221A322XA |
US $96.20 |
||
|
67501R
|
67501R
MN134432XA ARMREST, FR DOOR, RH |
MN134432XA |
US $96.20 |
||
|
67526
|
67526
MN134460 BRACKET, FR DOOR ARMREST |
MN134460 |
US $7.84 |
||
|
80760L
|
80760L
MR576170HA LENS, FR DOOR LAMP, LH |
MR576170HA |
from US $4.27 |
||
|
80760R
|
80760R
MR576170HA LENS, FR DOOR LAMP, LH |
MR576170HA |
from US $4.27 |
||
|
82038A
|
82038A
MN141066
SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE
|
MN141066 |
— | ||
|
82039
|
82039
8608A022 SWITCH, FR DOOR POWER WINDOW ASSISTANT SIDE |
8608A022 |
US $105.08 |
